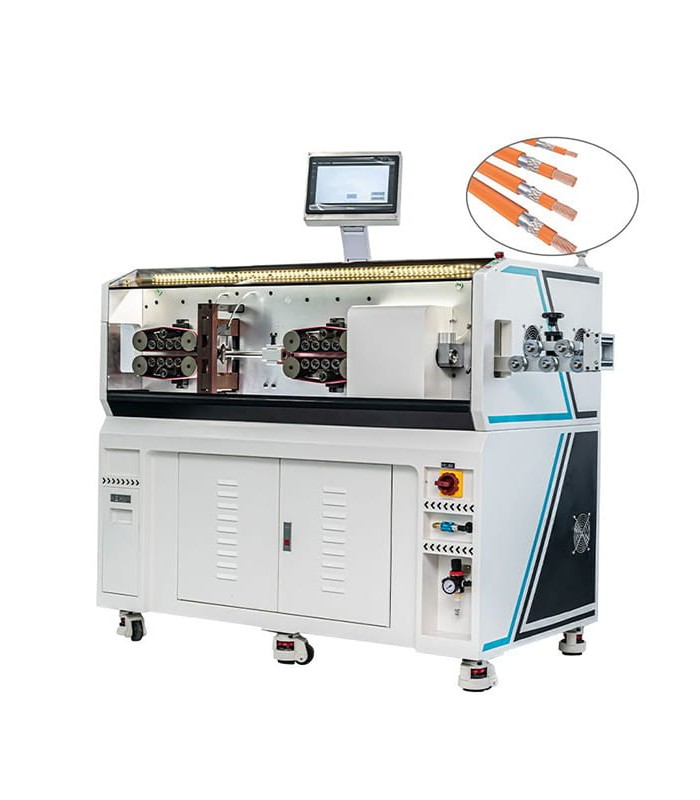

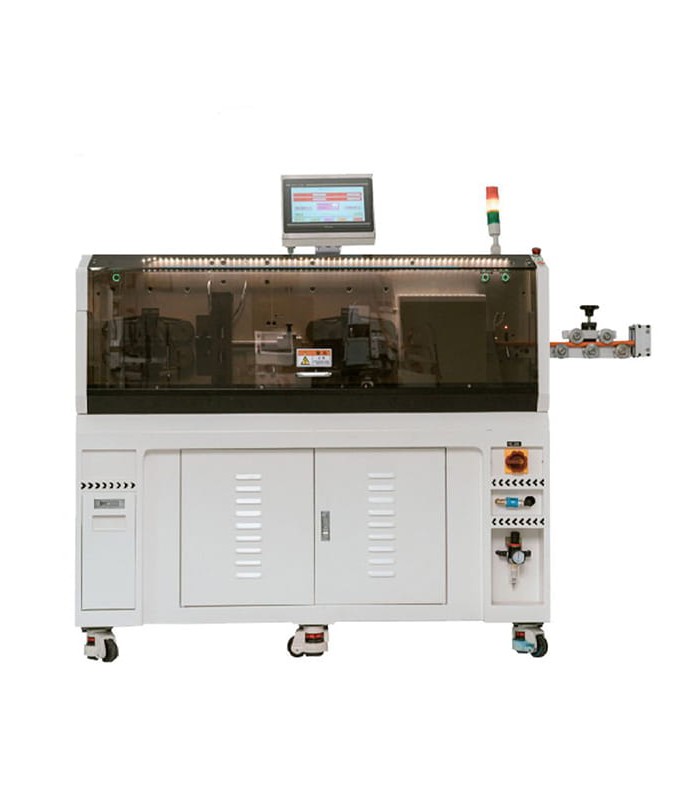

Automatic machine with rotating blade cuts and strips single-core, multi-core and coaxial cables

The RBEW05M is a professional machine designed for automatic cutting and stripping of electrical cables with external diameter from 5 to 25 mm and conductor section from 6 to 120 mm².
Thanks to the rotary stripping system, it allows precise processing even on complex cables, with stripping capacity up to 8 layers.
The machine is particularly suitable for industrial applications where high precision, continuous operation and the ability to process multi-core cables or cables with particularly structured sheaths are required.
The cutting depth precision of 0.01 mm allows accurate control of the sheath incision, reducing the risk of damaging the internal conductor.
The cutting length adjustable from 40 to 9999 mm allows the machine to be adapted to different production needs, while the cutting length tolerance lower than 0.002 x L ensures stable and repeatable processing.
The machine allows stripping on side I from 1 to 300 mm and on side II from 1 to 200 mm, making it suitable for both standard processing and more complex preparation on medium and large-section cables.
The guide system with 28 servo-driven rollers ensures stable and controlled cable feeding, improving cutting precision, stripping quality and process continuity.
The touch screen control allows intuitive management of processing parameters, facilitating production changes and improving efficiency in repetitive processing.
The robust structure, productivity up to 900 pieces/hour and rotary stripping mode make the RBEW05M suitable for production departments, wiring workshops, automotive sector, industrial wiring and professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the 28-roller servo guide system
- The rollers ensure stable and controlled cable feeding
- The operator sets the parameters via the touch screen
- The machine cuts the cable to the set length
- The rotary stripping system scores and removes the cable sheath
- Processing can involve up to 8 layers of the cable
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- Processing range with external diameter from 5 to 25 mm
- Conductor section from 6 to 120 mm²
- Rotary stripping up to 8 layers
- Cutting depth precision of 0.01 mm
- Automatic cutting with adjustable length from 40 to 9999 mm
- High cutting length precision
- Side I stripping from 1 to 300 mm
- Side II stripping from 1 to 200 mm
- 28-roller servo guide system
- Touch screen for intuitive management
- Productivity up to 900 pieces/hour
- Robust structure for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Processing of multi-core and complex cables
- Stripping of cables up to 8 layers
- Industrial wiring
- Wiring harness production
- Automotive sector
- Industrial electrical panels
- Professional electrical systems
- Cable preparation for crimping
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW05M

Machine type: automatic cutting and rotary stripping machine for cables

Stripping capacity: rotary stripping up to 8 layers

External cable diameter: 5 - 25 mm

Conductor section: 6 - 120 mm²

Cutting length: 40 - 9999 mm

Cutting depth precision: 0.01 mm

Cutting length tolerance: < 0.002 x L

Side I stripping length: 1 - 300 mm

Side II stripping length: 1 - 200 mm

Stripping mode: rotary stripping

Guide tube diameter: 240 mm

Blade range: 7 - 28 mm

Guide mode: 28-roller servo guide

Display mode: touch screen

Productivity: 400 - 900 pieces/hour

Power supply: 110 / 220 V, 50-60 Hz

Weight: 220 kg

Dimensions: 1680 x 560 x 1120 mm

Application: cutting and rotary stripping of electrical cables

Operation: automatic with rotary stripping

Use: professional and industrial
