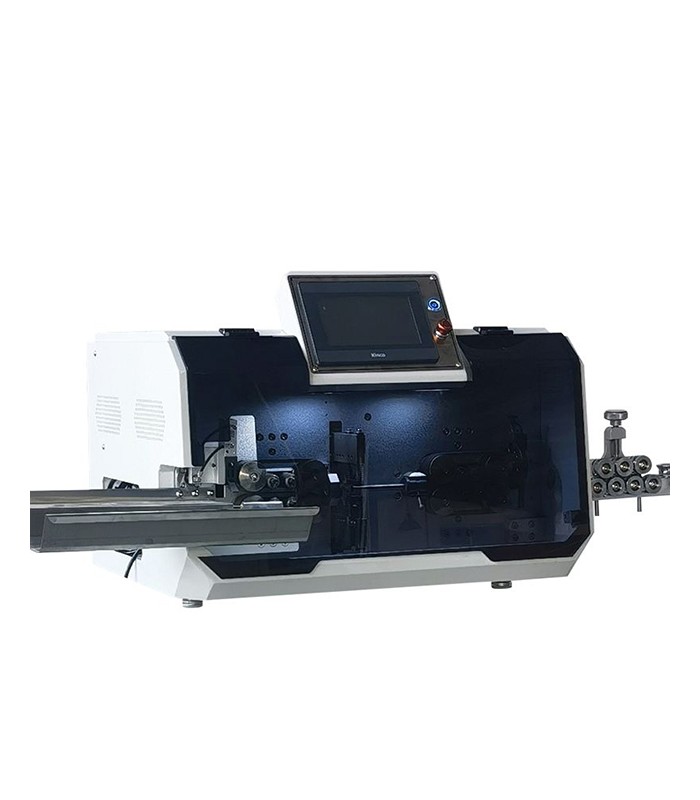

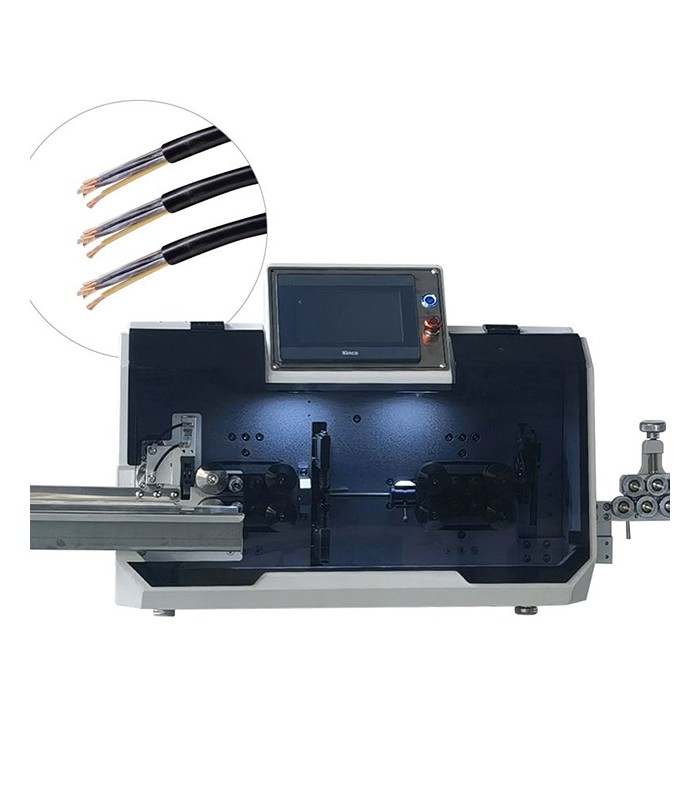

Automatic cutting and stripping machine for single and multi-core cables
Automatic cutting and stripping machine for single and multi-core cables
Automatic cutting and stripping machine for single and multi-core cables
Automatic cutting and stripping machine for single and multi-core cables

Automatic cutting and stripping machine for single and multi-core cables

Errebi code: 66623
Producer code: RBEW05F+2
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€7,949.00 (tax excl.)
€9,697.78 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW05F+2
Brand:
ErreBi Group
Add to wishlist
Description
Technical data

Model: RBEW05F+2
Cable section: 0.75 - 30 mmq
Maximum guide tube diameter: 18 mm
Cable: Single core cable, multicore cable, PVC cable etc.
Cutting length: 1 - 999,999.9 mm
Cutting length tolerance: < 0.002 * L (L = cutting length)
Stripping length (side I): 10 - 200 mm
Stripping length (side II): 10 - 80 mm
Max. guide tube diameter: 18 mm
Productivity: 3500 pcs./h
Blade material: Steel
Display mode: 7 inch touch screen
Drive mode: Servo motor cutting with 16 roller guide system
Power supply: 110, 220 V (50 - 60 Hz)
Power: 1.1 kW
Air pressure: 0.5 - 0.7 MPa
Weight: 140 Kg
Dimensions: 707*590*1140 mm
Read moreShow less
Product Details
RBEW05F+2

Data sheet

Product type
Cable cutting and stripping machine
Wattage
1.1 kW
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
707x590x1140 (L x W x H)
Cable section mmq
0.75 mmq - 30.00 mmq
Minimum order quantity
1
Unit Type
piece
Maximum inner diameter of guide tube
18 mm
Stripping length Side1
10 - 200 mm
Stripping length Side2
10 - 80 mm
Length of Cut
1 - 999999,99 mm
Blade material
tungsten steel
Driving mode
16 rollers with servomotor
Viewing mode
7" touch screen
Air pressure
0.5 - 0.7 MPa
Productivity
3500 pz/h
Attachments
066623_001_DATASHEET.pdf
Download (736.57KB)
066623_002_CERTIFICATION.pdf
Download (3.13MB)
