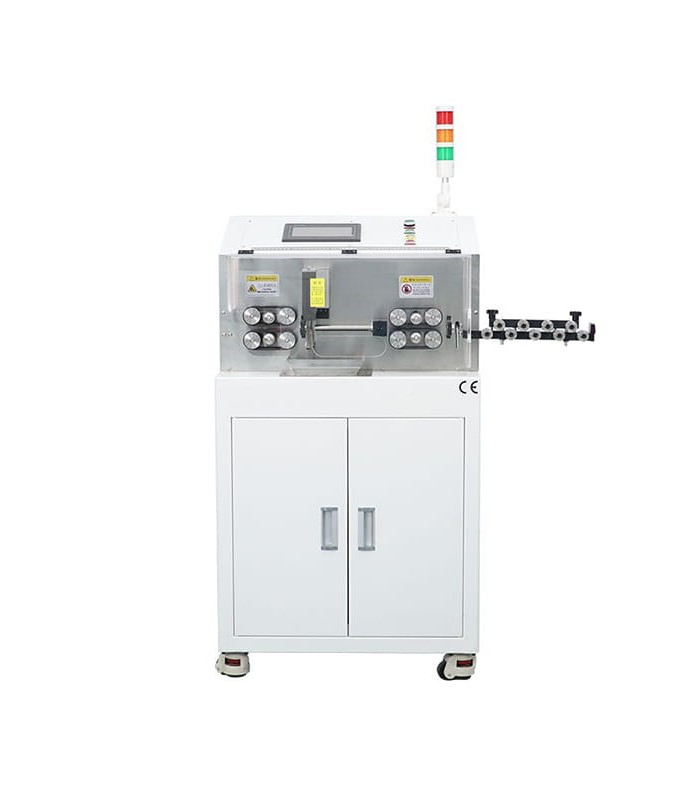

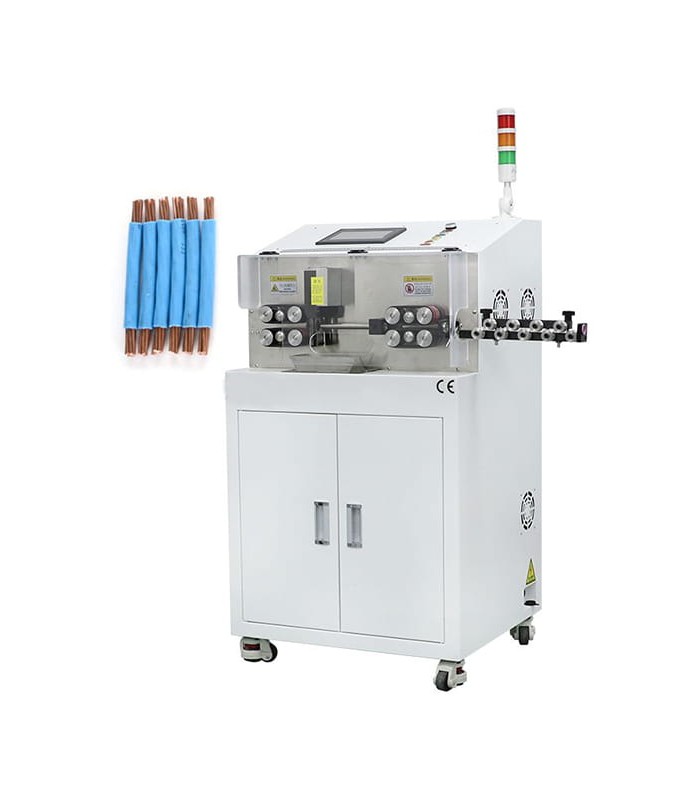

Automatic cutting and stripping machine for single and multi-core cables with bench (1.5-50 mmq)
Automatic cutting and stripping machine for single and multi-core cables with bench (1.5-50 mmq)
Automatic cutting and stripping machine for single and multi-core cables with bench (1.5-50 mmq)
Automatic cutting and stripping machine for single and multi-core cables with bench (1.5-50 mmq)

Automatic cutting and stripping machine for single and multi-core cables with bench (1.5-50 mmq)

Errebi code: 66628
Producer code: RBEW05G
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€8,007.40 (tax excl.)
€9,769.03 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW05G
Brand:
ErreBi Group
Add to wishlist
Description
Technical data

Model: RBEW05G
Conductor cross-section: 1.5 - 50 mmq
Cutting length: 1-100,000 mm
Cutting length tolerance: < 0.002 * L
Stripping length (side I): 0 - 250 mm
Stripping length (side II): 0 - 150 mm
Cutting function: Optional
Maximum guide tube diameter: 17 mm
Drive mode: 12-roller servo motor with belt feed
Display mode: 7-inch touch screen
Memory capacity: 200 programs
Blade material: Steel
Productivity: 1500 - 2500 pcs./h
Power supply: 110, 220 V (50 - 60 Hz)
Power: 800 W
Weight: 105 Kg
Dimensions: 650*550*1100 mm
Read moreShow less
Product Details
RBEW05G

Data sheet

Product type
Cable cutting and stripping machine
Wattage
800W
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
650x550x1100 (L x W x H)
Cable section mmq
1.50 mmq - 50.00 mmq
Minimum order quantity
1
Unit Type
piece
Memory capacity
200 programs
Maximum inner diameter of guide tube
17 mm
Stripping length Side1
0 - 250 mm
Stripping length Side2
0 - 150 mm
Length of Cut
1 - 100,000 mm
Blade material
tungsten steel
Driving mode
12 rollers with belt guide
Viewing mode
7" touch screen
Productivity
1500 - 2500 pcs/h
Attachments
066628_001_DATASHEET.pdf
Download (605.06KB)
066628_002_CERTIFICATION.pdf
Download (3.13MB)
