Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables
Automatic machine for cutting and stripping single and multicore cables

Automatic machine for cutting and stripping single and multicore cables

Errebi code: 70571
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€8,510.93 (tax excl.)
€10,383.33 (tax incl.)
'Available in 70 working days from the order.'
Condition
New
Reference:
RBEW05B+
Brand:
ErreBi Group
Add to wishlist
Description

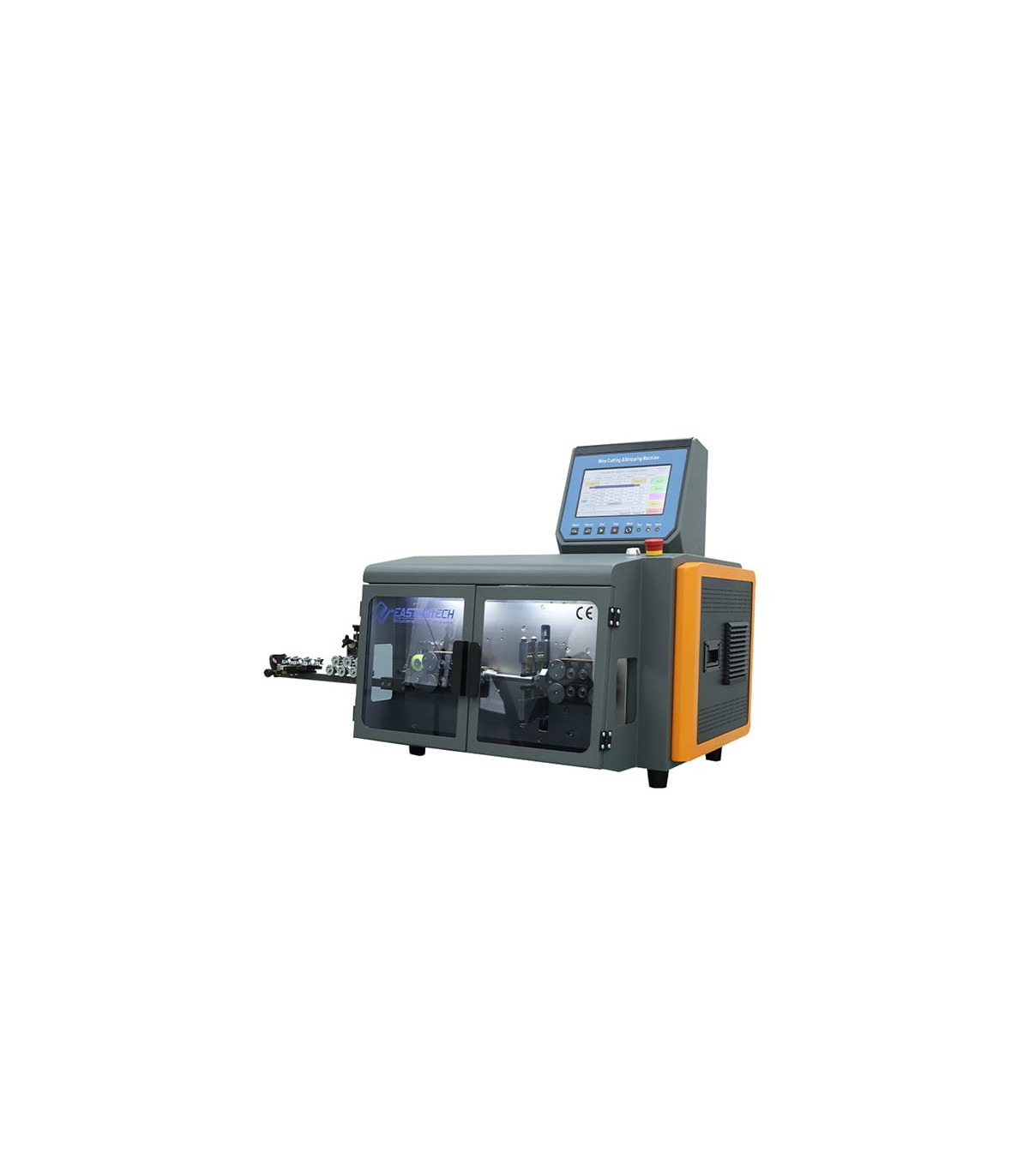

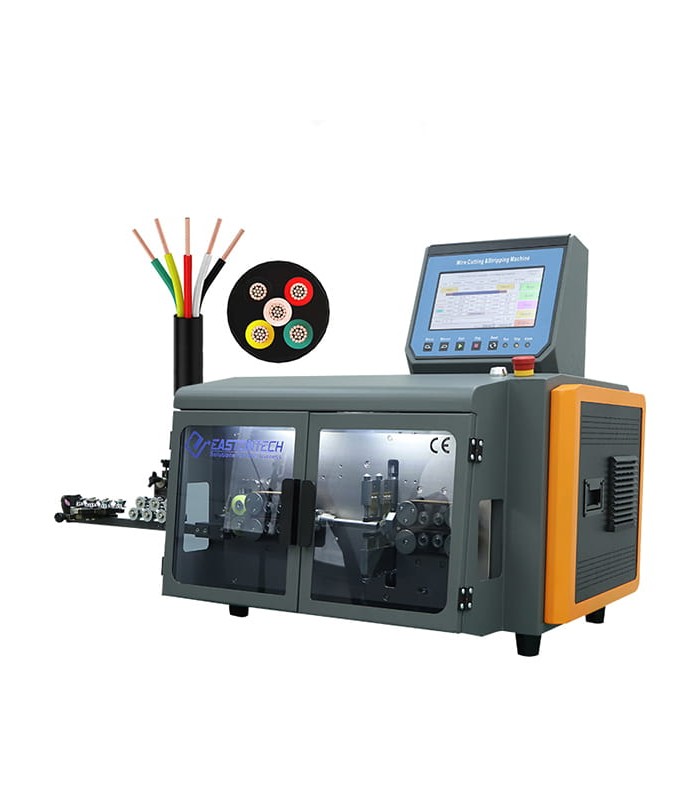

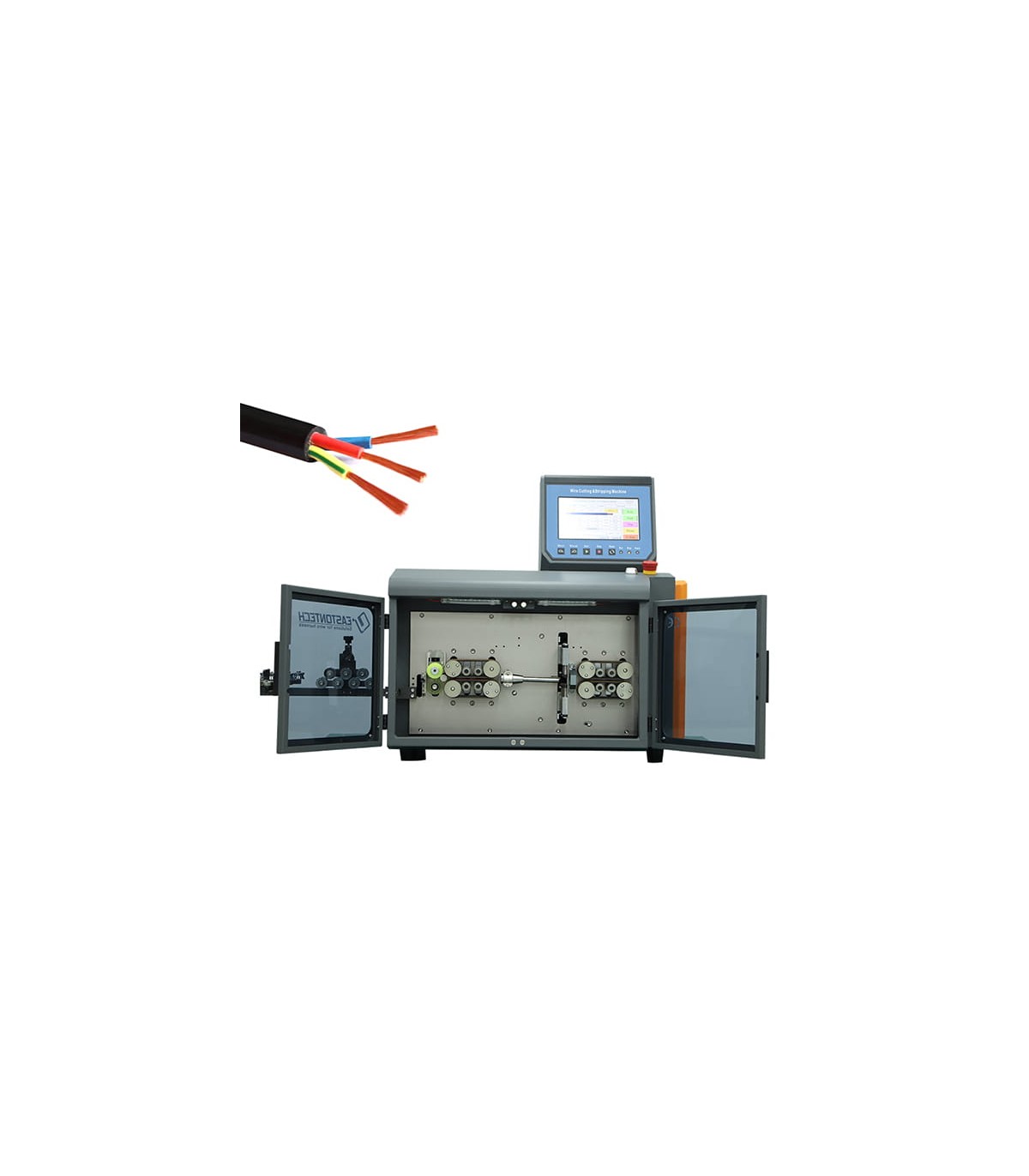

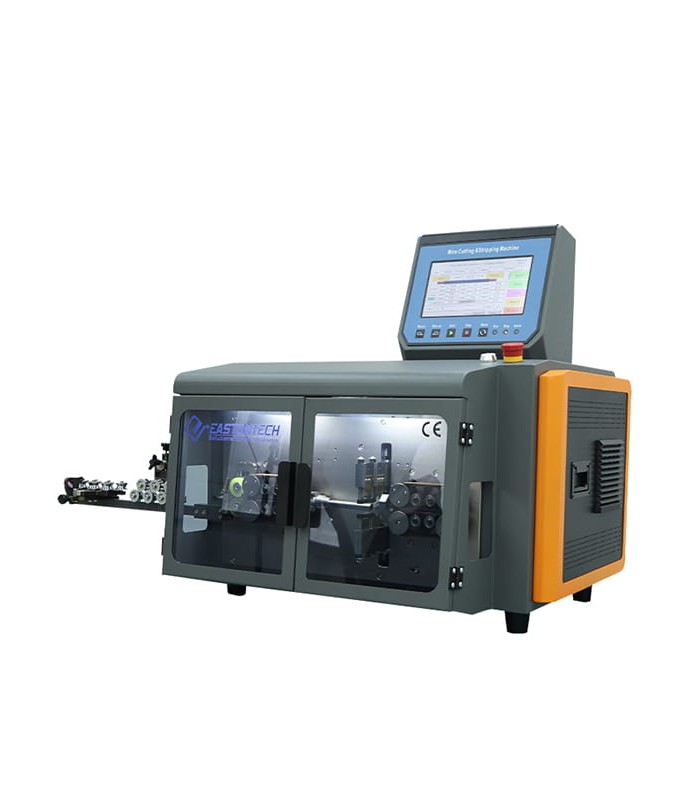

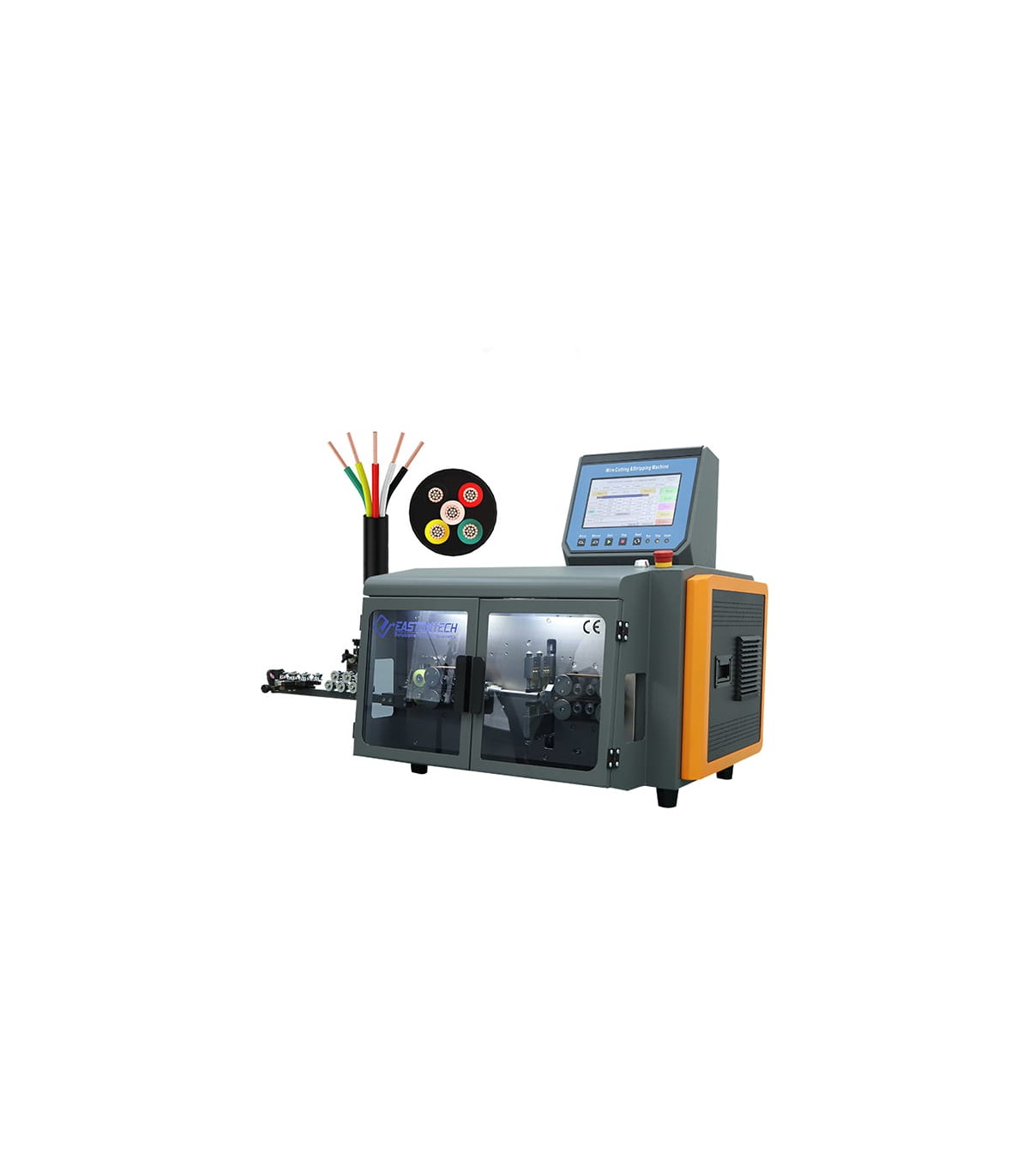

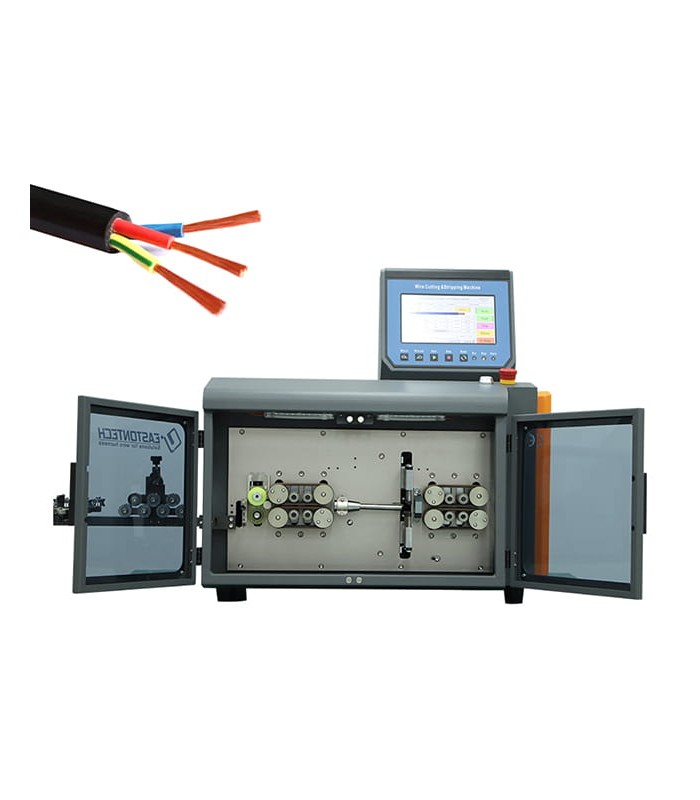

The RBEW-05B+ is an automatic machine for cutting and stripping single-core and multi-core cables, designed to meet the needs of industrial production where high precision, repeatability, long-term reliability and operational flexibility are required.


Operation

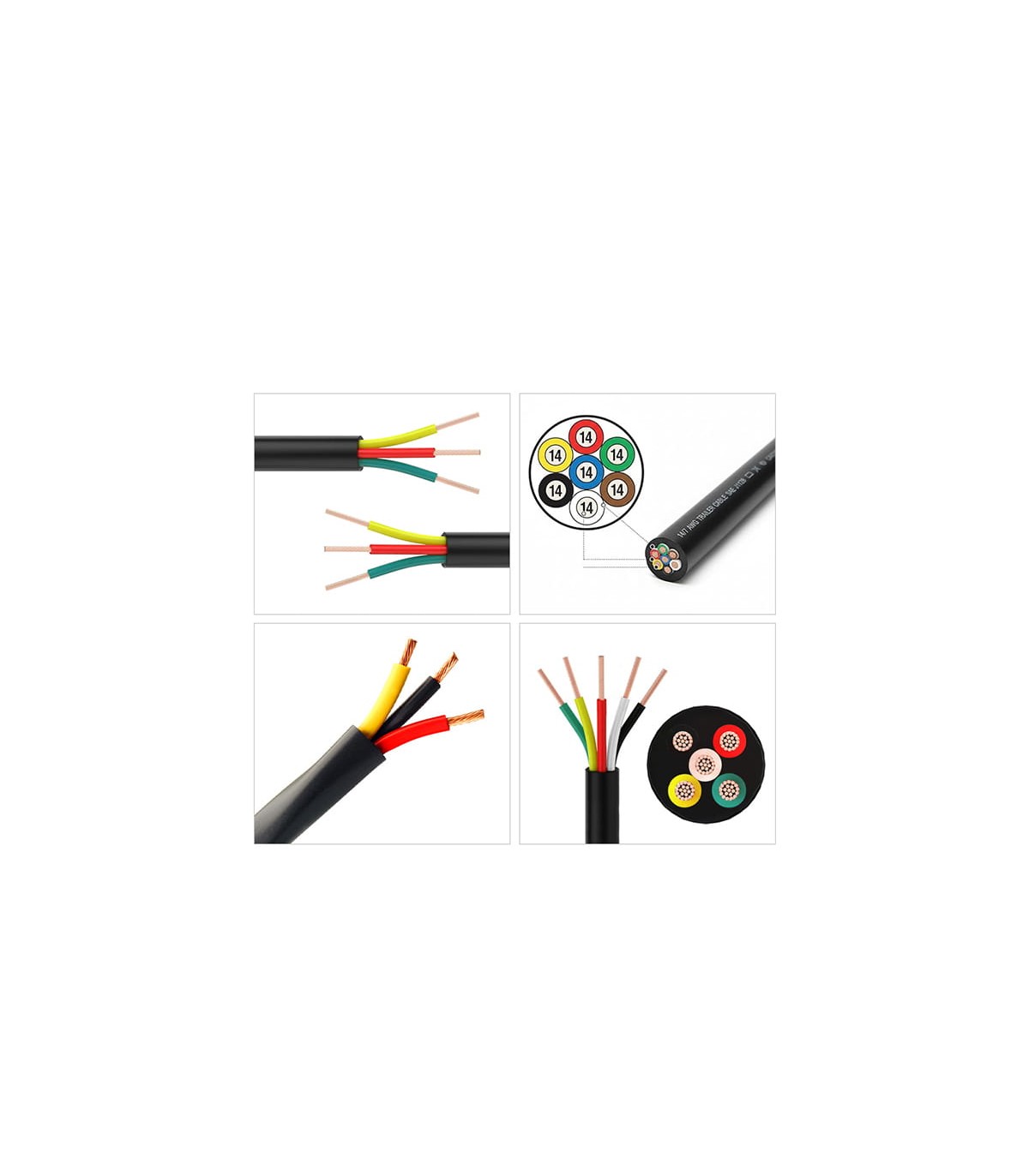

The machine is designed to perform fully automatic cable cutting and insulation stripping operations, both outer and inner, on multi-core cables.
The process is managed by a digital control system that coordinates high-precision motors and adjustable cutting blades, ensuring consistent results even during prolonged working cycles.


During the working cycle, the machine is able to:


  • 1) Automatically feed the cable to the programmed length.

  • 2) Perform a clean cut without crushing or deformation.

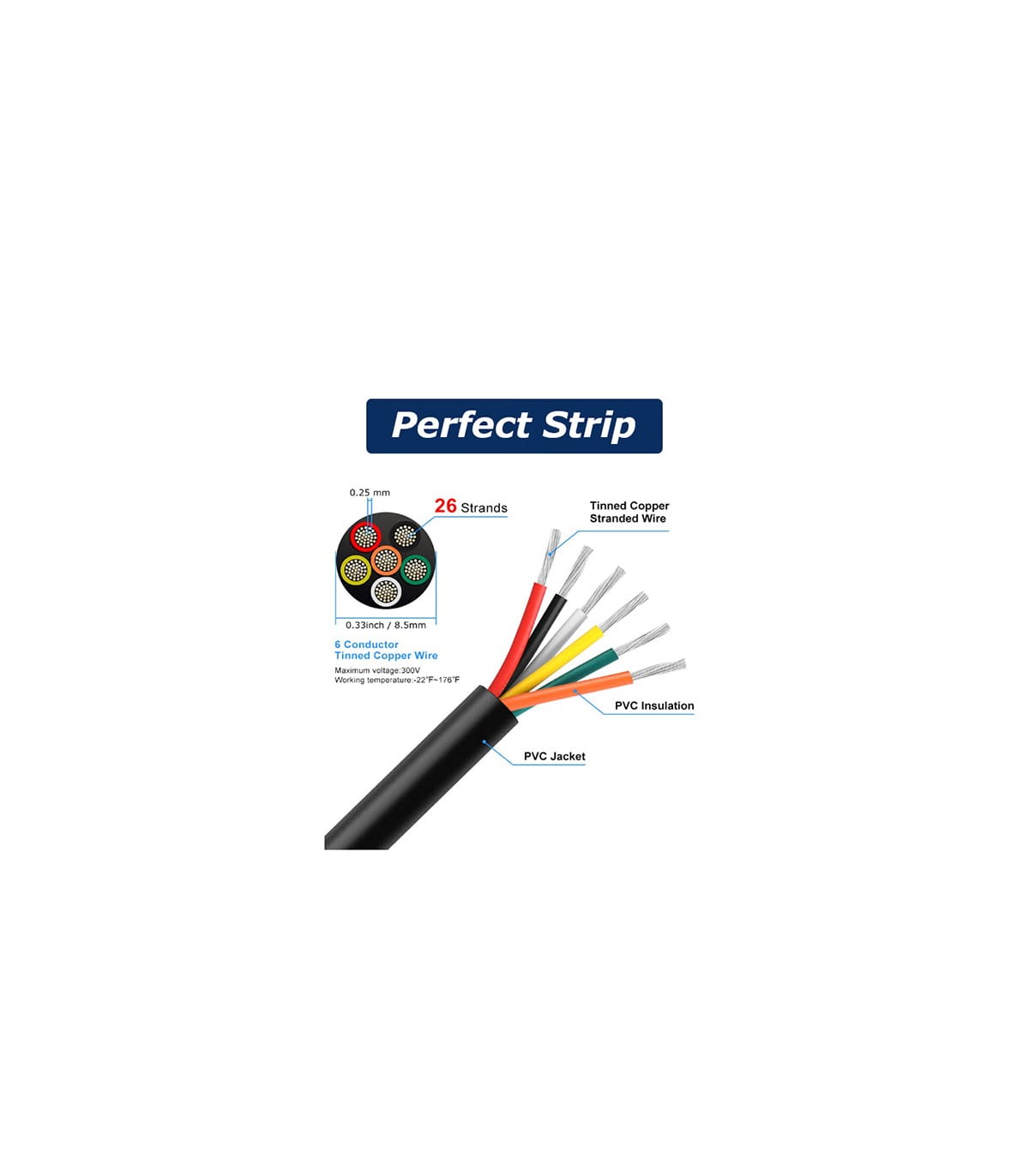

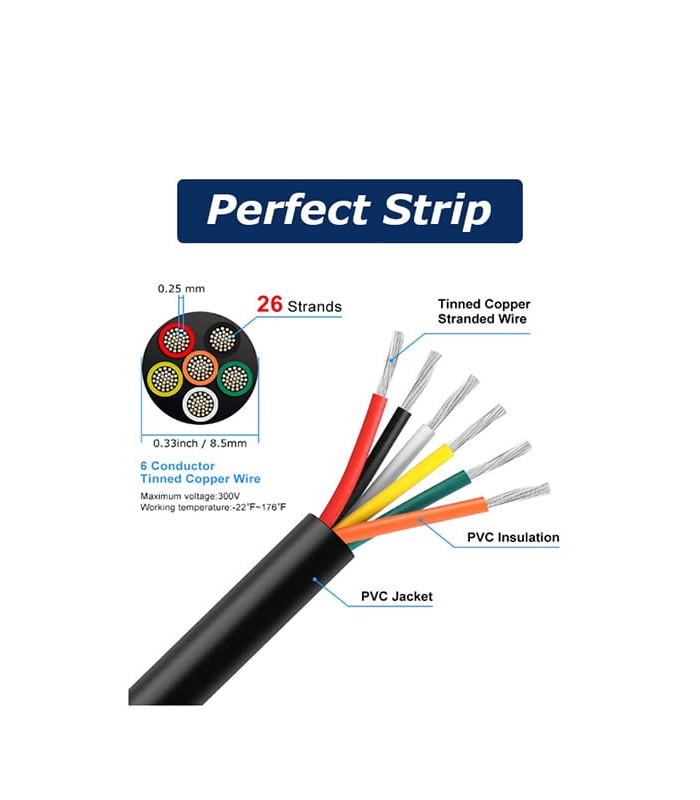

  • 3) Strip the outer insulation of the multi-core cable with controlled depth.

  • 4) Strip the internal insulation of individual conductors while preserving the copper integrity.

  • 5) Repeat the cycle automatically, maintaining high precision and uniformity on each piece.

    • The control panel allows easy setting of parameters such as cutting length, stripping lengths, blade depth, cable type and number of cycles.


    Typical applications

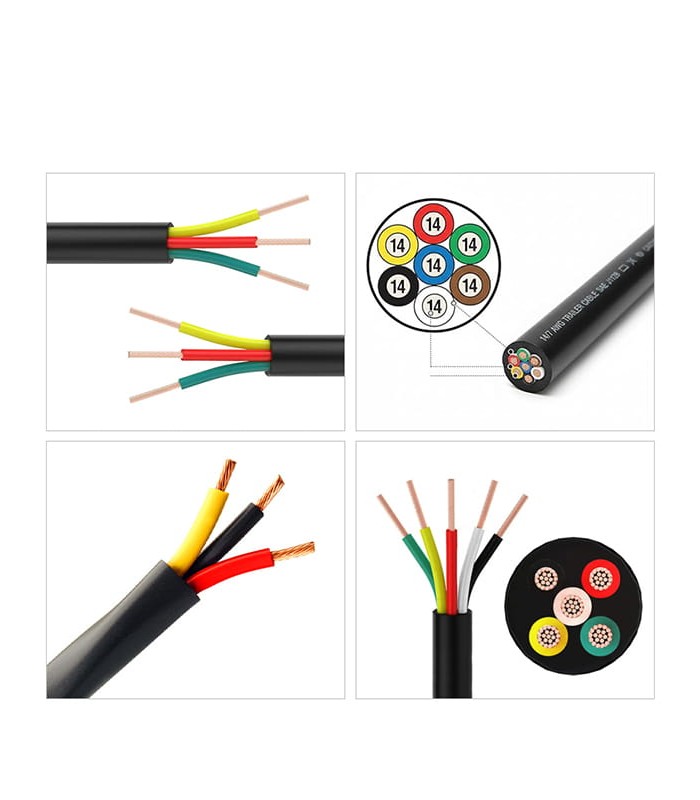

  • 1) Automotive and industrial vehicles: preparation of multi-core wiring harnesses for control units, sensors and onboard systems.

  • 2) Industrial automation: cables for PLCs, actuators, motors and control panels.

  • 3) Electrical engineering: production of wiring for electrical panels and industrial systems.

  • 4) Electronics and assembly: preparation of cables for equipment and electronic modules.

  • 5) Custom wiring production: ideal for laboratories and third-party wiring departments.


    • Indicative technical specifications


  • Model: RBEW05B+

  • Conductor cross-section (single-core): 1.00 - 35.00 mm²

  • Number of internal conductors: 2 - 11 conductors

  • Cable diameter (multi-core): 0 - 18 mm

  • Cutting length: 1 - 99,999.99 mm


  • Stripping length (side I):

  • Cable jacket

  • - Full strip (complete insulation removal for crimping, soldering, direct connections): 1 - 150 mm

  • - Half strip (insulation partially retained): 1 - 1000 mm


  • Inner wire

  • - Full strip: 1 - 30 mm

  • - Half strip: 1 - 100 mm


  • Stripping length (side II):

  • Cable jacket

  • - Full strip: 1 - 120 mm

  • - Half strip: 1 - 350 mm


  • Inner wire

  • - Full strip: 1 - 30 mm

  • - Half strip: 1 - 60 mm


  • Maximum inner guide tube diameter: 16 mm

  • Productivity: 600 pcs/h (single-core); 400 pcs/h (multi-core)

  • Display: 7” touchscreen

  • Power: 1 kW

  • Voltage: AC 110/220 V, 50–60 Hz

  • Air pressure: 0.5 – 0.7 MPa

  • Weight: 100 kg

  • Dimensions: 795 × 490 × 500 mm

    • Read moreShow less
    Product Details
    RBEW05B+

    Data sheet

    Product type
    Cable cutting and stripping machine
    Wattage
    1 kW
    Voltage/Frequency
    AC: 110-220V, 50/60Hz
    Dimensions
    795x490x500 (L x W x H)
    Cable section mmq
    1.00 mmq - 35.00 mmq
    Minimum order quantity
    1
    Unit Type
    piece
    Outer diameter of cable
    0 - 18 mm
    Maximum inner diameter of guide tube
    16 mm
    Stripping length Side1
    1 - 150 mm
    Stripping length Side2
    1 - 120 mm
    Blade material
    tungsten steel
    Viewing mode
    touch screen
    Air pressure
    0.5 - 0.7 MPa
    Productivity
    400 - 600 pz/h
    Attachments
    070571_001_DATASHEET.pdf
    Download (875.16KB)
    070571_002_CERTIFICATION.pdf
    Download (3.13MB)
