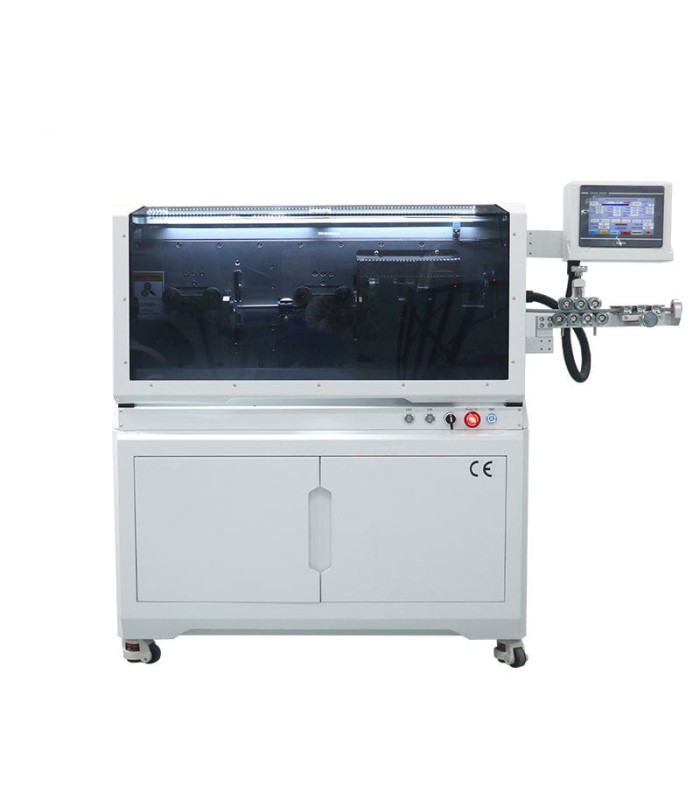

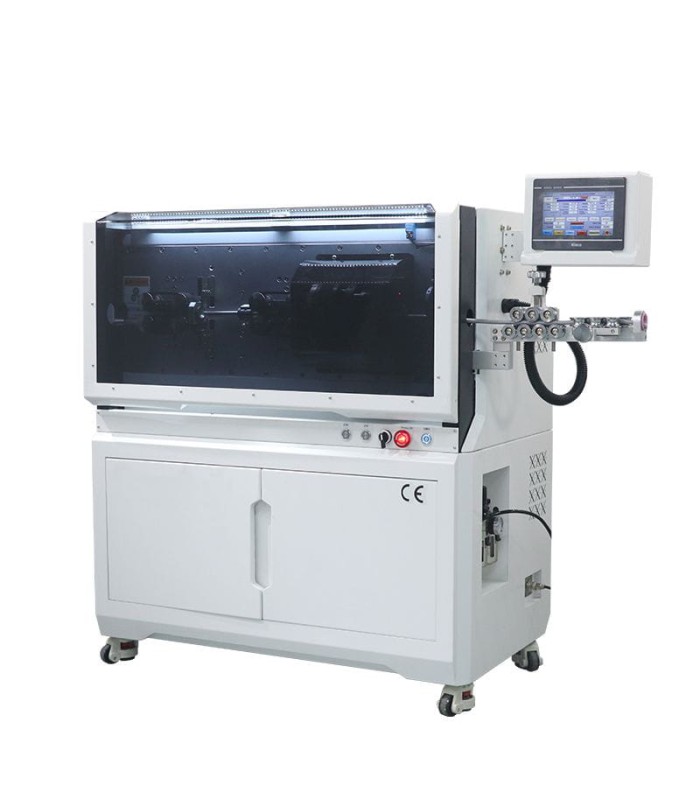

Automatic machine for cutting and stripping single-core cables (10 - 240 mmq)

Errebi code: 66584
Producer code: RBEW05+R
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY

Read moreShow less
€14,505.00 (tax excl.)
€17,696.10 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW05+R
Add to wishlist
Description

Technical data

Model: RBEW05+R
Cable section: 0.75 - 30 mmq
Cutting length: 120 - 999,999.9 mm
Cutting length tolerance: < 0.002 * L (L = cutting length)
Maximum guide tube diameter: 18 mm
Productivity: 800 - 1000 pcs./h
Blade material: steel
Display mode: 7-inch touch screen
Driving mode: servomotor cutting with 16-roller guiding system
Feeding mode: belt feeding with pressure stripping function
Power supply: 110, 220 V (50 - 60 Hz)
Power: 1.1 kW
Air pressure: 0.5 MPa
Weight: 180 Kg
Dimensions: 1280*480*1350 mm

Read moreShow less
Product Details
RBEW05+R

Data sheet

Product type
Cable cutting and stripping machine
Wattage
1.1 kW
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1280x480x1350 (L x W x H) mm
Cable section mmq
0.75 mmq - 30.00 mmq
Minimum order quantity
1
Unit Type
piece
Maximum inner diameter of guide tube
18 mm
Length of Cut
120 - 999.999,9 mm
Driving mode
16 wheel drive rollers, with quiet hybrid motor
Viewing mode
7" touch screen
Air pressure
0.5 MPa
Productivity
800 - 1000 pz/h
Attachments
066584_001_DATASHEET.pdf
Download (637.7KB)
066584_002_CERTIFICATION.pdf
Download (3.13MB)
