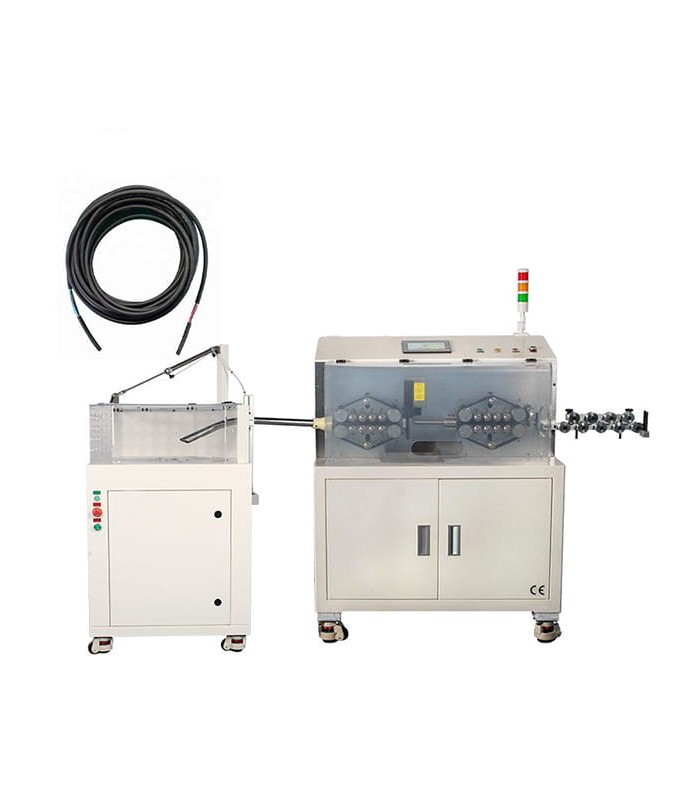

Automatic machine for cutting and stripping single and multicore cables with automatic winding device
Automatic machine for cutting and stripping single and multicore cables with automatic winding device

Automatic machine for cutting and stripping single and multicore cables with automatic winding device

Automatic machine for cutting and stripping single-core cables (10 - 240 mmq)

Errebi code: 66627
Producer code: RBEW05E+C
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY

Read moreShow less
€16,495.00 (tax excl.)
€20,123.90 (tax incl.)
'Available in 30 working days from the order.'
Condition
New
Reference:
RBEW05E+C
Add to wishlist
Description

Technical data

Model: RBEW05E+C
Cable section: 6 - 150 mmq
Cutting length: 1 - 100,000 mm (customizable)
Cutting length tolerance: < 0.002 * L
Stripping length (side I): 0 - 500 mm
Stripping length (side II): 0 - 250 mm
Maximum guide tube diameter: 32 mm
Drive mode: 28 rollers with belt guide
Display mode: 7-inch touch screen
Memory capacity: 100 programs
Blade material: steel
Productivity: 1000 - 1500 pieces/h
Power supply: 110, 220 V (50 -60 Hz)
Power: 1200 W
Weight: 270 kg
Dimensions: 1180*650*1200 mm
Inner diameter of coil: 200 - 680 mm
Winding speed: 1.5 m/s
Driving mode: Servo motor
Safety protective cover: Available

Read moreShow less
Product Details
RBEW05E+C

Data sheet

Product type
Cable cutting and stripping machine
Wattage
1200W
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1180x650x1200 (L x W x H)
Cable section mmq
6 - 150 mmq
Minimum order quantity
1
Unit Type
piece
Memory capacity
100 materials
Coil diameter
200 - 680 mm
Maximum inner diameter of guide tube
32 mm
Stripping length Side1
0 - 500 mm
Stripping length Side2
0 - 250 mm
Length of Cut
1 - 100,000 mm
Blade material
tungsten steel
Driving mode
28 rollers with belt guide
Viewing mode
7" touch screen
Productivity
1000 - 1500 pcs/h
Unwinding and winding speed
1,5 m/s
Attachments
066627_001_DATASHEET.pdf
Download (763.93KB)
066627_002_CERTIFICATION.pdf
Download (3.13MB)
