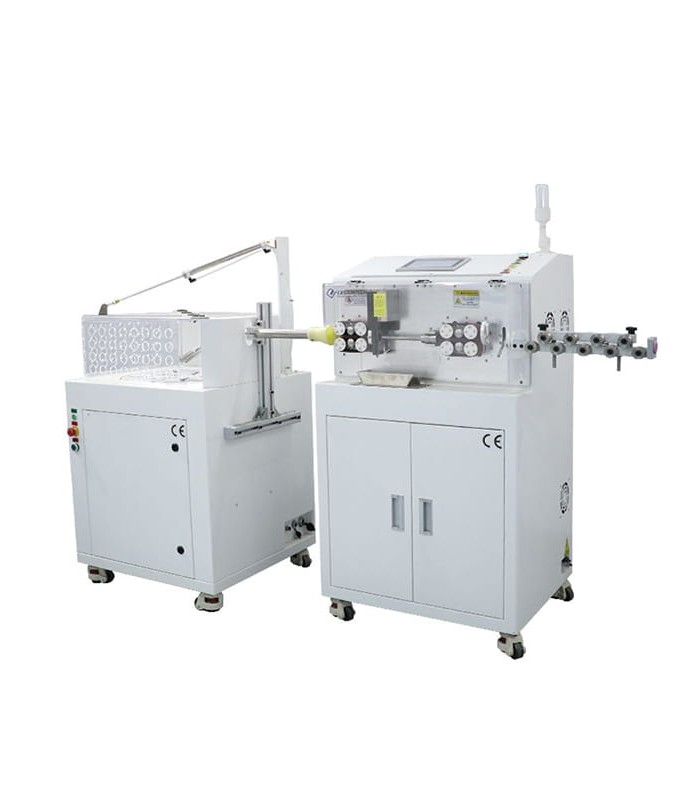

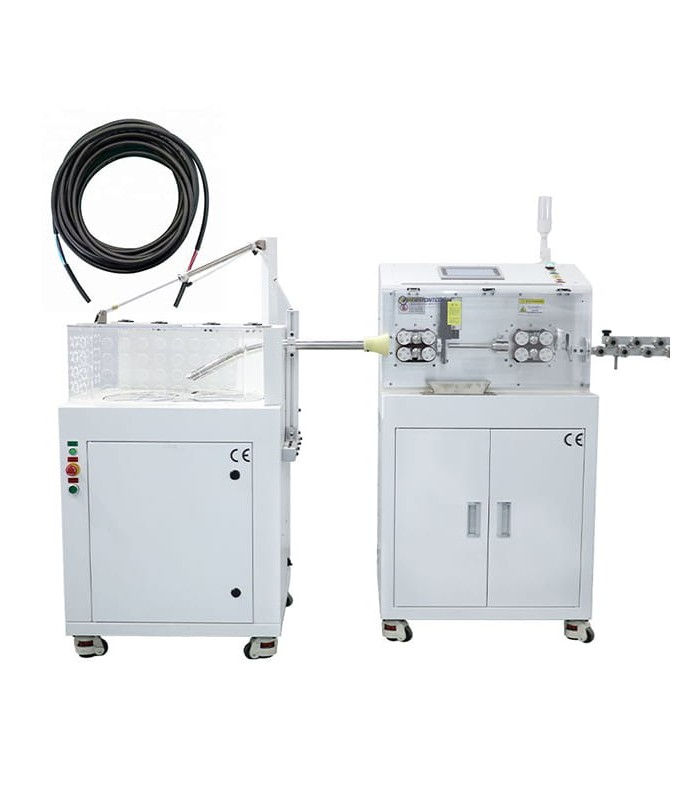

Automatic machine with rotating blade cuts and strips single-core cables up to 3 layers with winder

The RBEW05D1 is a professional machine designed for automatic cutting and stripping of electrical cables with a section from 1.5 to 95 mm², complete with coiling device for orderly management of the processed cable.
Thanks to the stripping capacity up to 3 layers, it allows precise processing on different types of cables, ensuring constant quality and reducing manual intervention.
The machine is particularly suitable for industrial applications where precision, productivity and continuous operation are required in cable preparation for wiring harnesses, electrical panels and professional systems.
The guide system with 12 rollers and belt drive ensures stable cable feeding, improving cutting precision and process repeatability.
The cutting length adjustable from 1 to 100,000 mm allows the machine to be adapted to different production needs, while the cutting length tolerance lower than 0.002 x L ensures high precision even on variable-length processing.
The machine allows stripping on side I up to 320 mm and on side II up to 160 mm, making it suitable for both standard processing and more complex preparation on medium and large-section cables.
The control via 7-inch touch screen and internal memory up to 100 programs allow simple parameter management, quick production changes and greater efficiency in repetitive processing.
The dedicated coiling device allows the processed cable to be collected in an orderly way after cutting and stripping, improving production process organization and reducing manual material handling.
The compact structure, productivity up to 1200 pieces/hour and steel blades make the RBEW05D1 suitable for production departments, wiring workshops, automotive sector, industrial electrical panels and professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the roller guide system with belts
- The 12 rollers ensure stable and controlled cable feeding
- The operator sets the parameters via the 7-inch touch screen
- The machine cuts the cable to the set length
- The steel blade system strips the cable
- Processing can involve up to 3 layers of the cable
- The coiling device collects the processed cable in an orderly way
- The cable is ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for automatic cutting and stripping of electrical cables
- Processing range from 1.5 to 95 mm²
- Stripping up to 3 layers
- Automatic cutting with adjustable length up to 100,000 mm
- High cutting length precision
- Side I stripping up to 320 mm
- Side II stripping up to 160 mm
- Guide system with 12 rollers and belts
- 7-inch touch screen for intuitive management
- Memory up to 100 programs
- Dedicated coiling device for orderly cable collection
- Productivity up to 1200 pieces/hour
- Robust and resistant steel blades
- Compact structure for professional and industrial use

MAIN APPLICATIONS

- Cutting and stripping of electrical cables
- Processing of medium and large-section cables
- Industrial wiring
- Wiring harness production
- Automotive sector
- Industrial electrical panels
- Professional electrical systems
- Cable preparation for crimping
- Processing with orderly cable collection
- Wiring workshops and production departments
- Electronic and industrial applications
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW05D1

Machine type: automatic cutting and stripping machine for cables with coiling device

Stripping capacity: stripping up to 3 layers

Cable section: 1.5 - 95 mm²

Cutting length: 1 - 100,000 mm

Cutting length tolerance: < 0.002 x L

Side I stripping length: 0 - 320 mm

Side II stripping length: 0 - 160 mm

Maximum guide tube diameter: 22 mm

Guide mode: 12 rollers with belt guide

Display mode: 7-inch touch screen

Memory capacity: 100 programs

Blade material: steel

Productivity: 800 - 1200 pieces/hour

Power supply: 110 / 220 V, 50-60 Hz

Power: 800 W

Machine weight: 125 kg

Machine dimensions: 700 x 640 x 480 mm

Coiling device dimensions: 640 x 640 x 1300 mm

Coiling device weight: 85 kg

Application: cutting, stripping and orderly collection of electrical cables

Operation: automatic with coiling device

Use: professional and industrial
