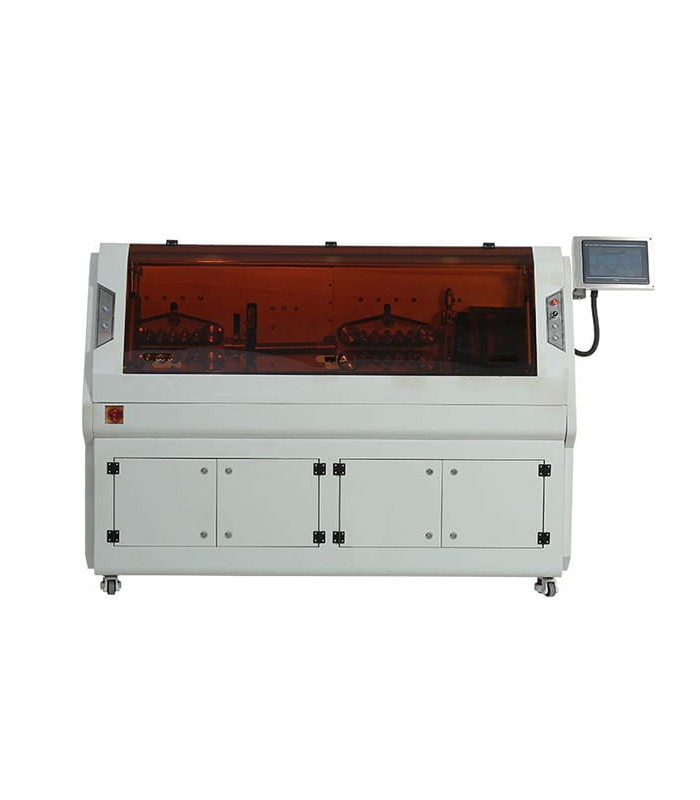

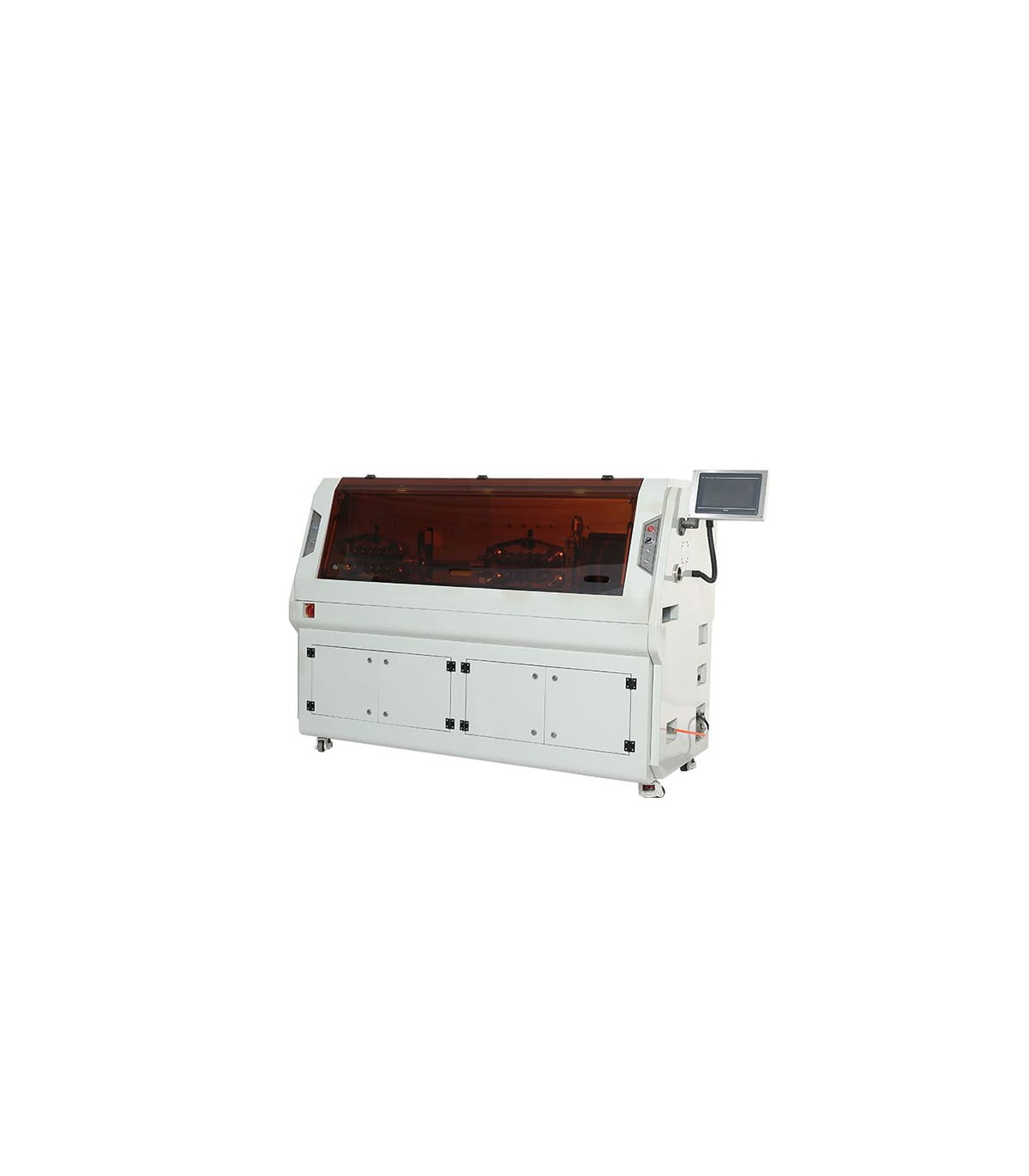

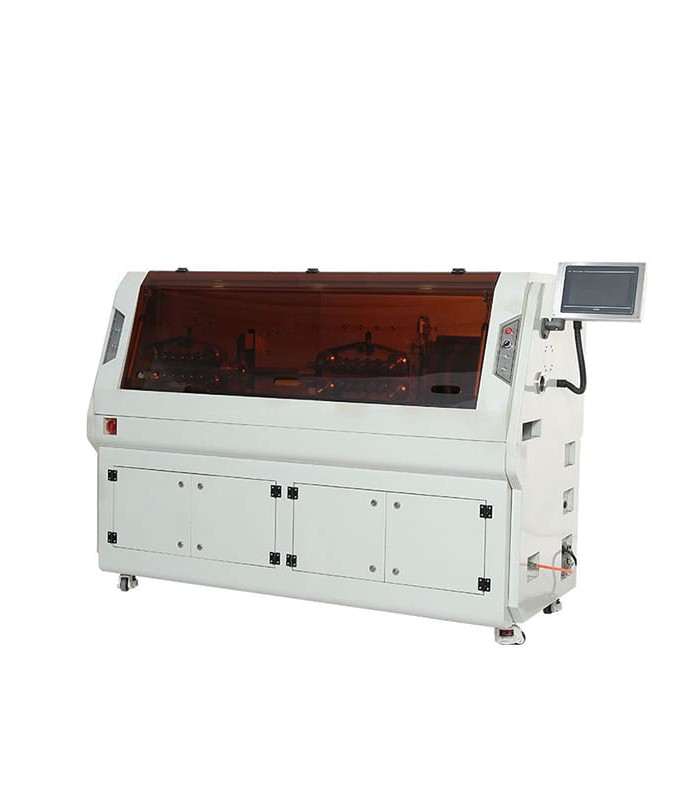

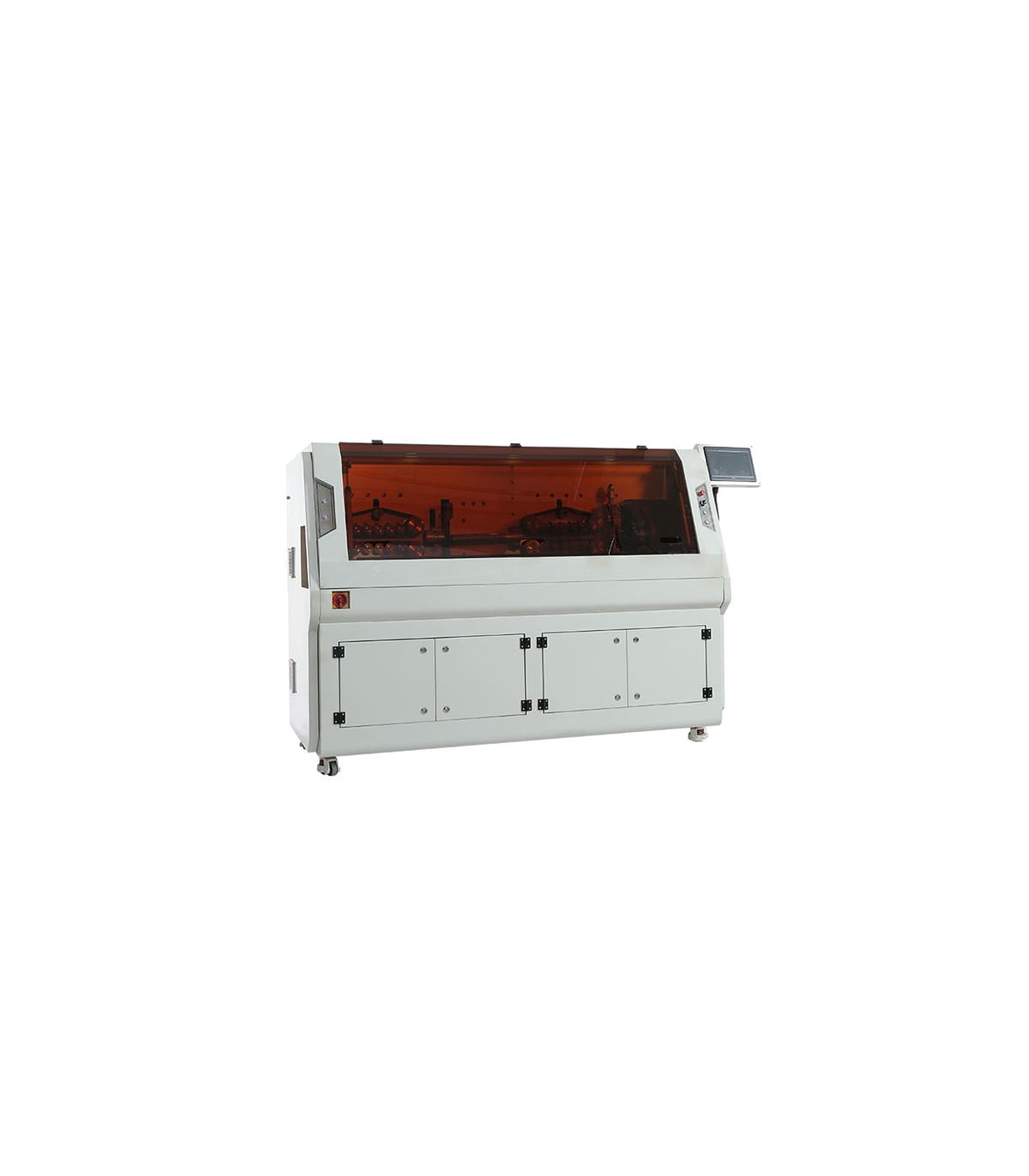

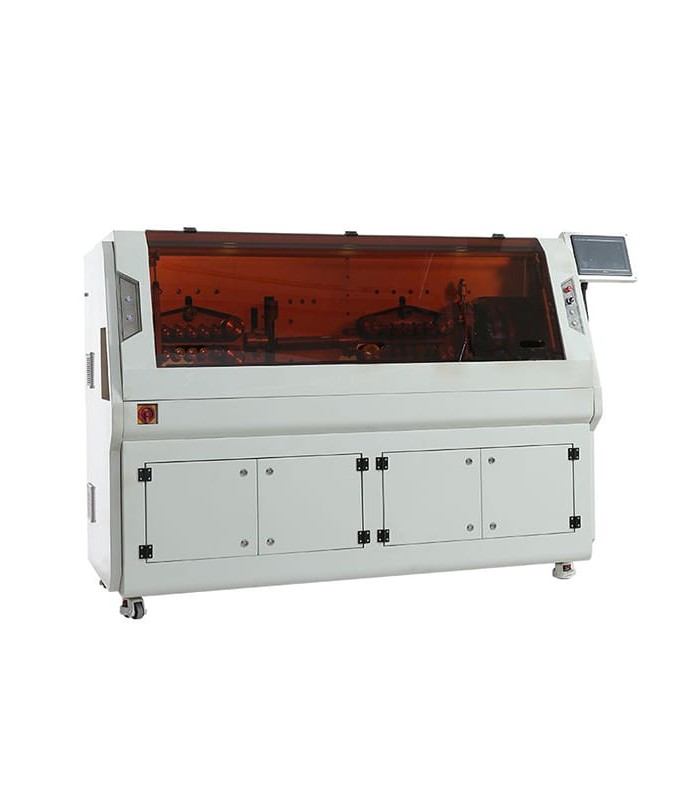

Automatic machine with rotating blade that cuts and strips single-core, multi-core and coaxial cables

The RBEW05S+R is a professional machine designed for automatic cutting and stripping of large-section electrical cables, with a processing capacity from 30 to 300 mm².
Thanks to the rotary stripping system, it allows precise processing even on complex cables, with stripping capability up to 6 layers.
The machine is particularly suitable for industrial applications where high precision, continuous operation and the ability to process large cables are required.
The belt feeding system, controlled by a servo motor, ensures stable cable feeding, improving cutting quality and process repeatability.
The cutting length adjustable from 10 to 99,999 mm allows the machine to be adapted to different production needs, while the cutting length tolerance of 0.002 x L ensures high precision even on variable-length processing.
The machine allows stripping on side I up to 1000 mm and on side II up to 300 mm, making it suitable for both standard processing and special preparation of power cables.
The robust structure, installed power of 11.7 kW and productivity up to 1000 pieces/hour make the RBEW05S+R suitable for production departments, wiring workshops, the energy sector, automotive, industrial electrical panels and high-intensity professional applications.

OPERATING PRINCIPLE

- The cable is inserted into the belt feeding system
- The servo motor controls cable feeding in a stable and precise way
- The machine cuts the cable to the set length
- The steel blade system performs rotary stripping
- Processing can involve up to 6 layers of the cable
- The cable is released ready for the next assembly, crimping or connection stages

MAIN ADVANTAGES

- Ideal for large-section electrical cables
- Processing range from 30 to 300 mm²
- Rotary stripping up to 6 layers
- Automatic cutting with adjustable length up to 99,999 mm
- High cutting length precision
- Side I stripping up to 1000 mm
- Side II stripping up to 300 mm
- Belt feeding for stable cable advancement
- Servo motor for greater precision and control
- Productivity up to 1000 pieces/hour
- Robust and resistant steel blades
- Industrial structure suitable for intensive processing
- Low noise level below 70 dB(A)

MAIN APPLICATIONS

- Cutting and stripping of large-section cables
- Processing of power cables
- Industrial wiring
- Wiring harness production
- Automotive and industrial vehicle sector
- Power electrical panels
- Industrial electrical systems
- Energy and electrical distribution sector
- Cable preparation for crimping
- Wiring workshops and production departments
- High-productivity professional applications

TECHNICAL FEATURES

Model: RBEW05S+R

Machine type: automatic cutting and stripping machine for large-section cables

Stripping capacity: rotary stripping up to 6 layers

Conductor section: 30 - 300 mm²

Cutting length: 10 - 99,999 mm

Cutting length tolerance: 0.002 x L

Side I stripping length: 0 - 1000 mm

Side II stripping length: 0 - 300 mm

Stripping mode: rotary stripping

Blade material: steel

Maximum guide tube diameter: 50 mm

Productivity: 500 - 1000 pieces/hour

Noise level: < 70 dB(A)

Power supply: 110 / 220 V, 50-60 Hz

Power: 11.7 kW

Feeding mode: belt feeding

Feeding motor type: servo motor

Weight: 850 kg

Dimensions: 195 x 95 x 160 cm

Application: cutting and stripping of large-section electrical cables

Operation: automatic with rotary stripping

Use: professional and industrial
