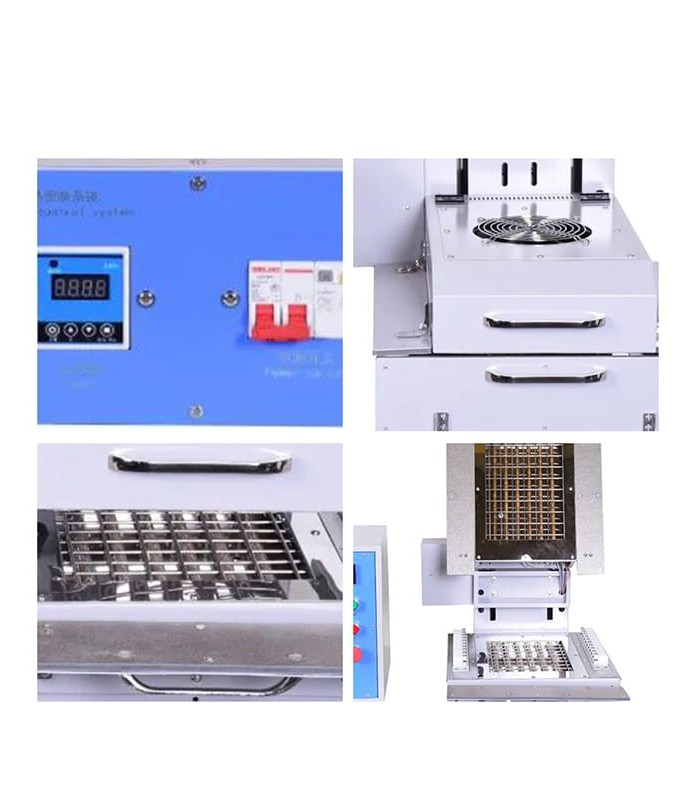

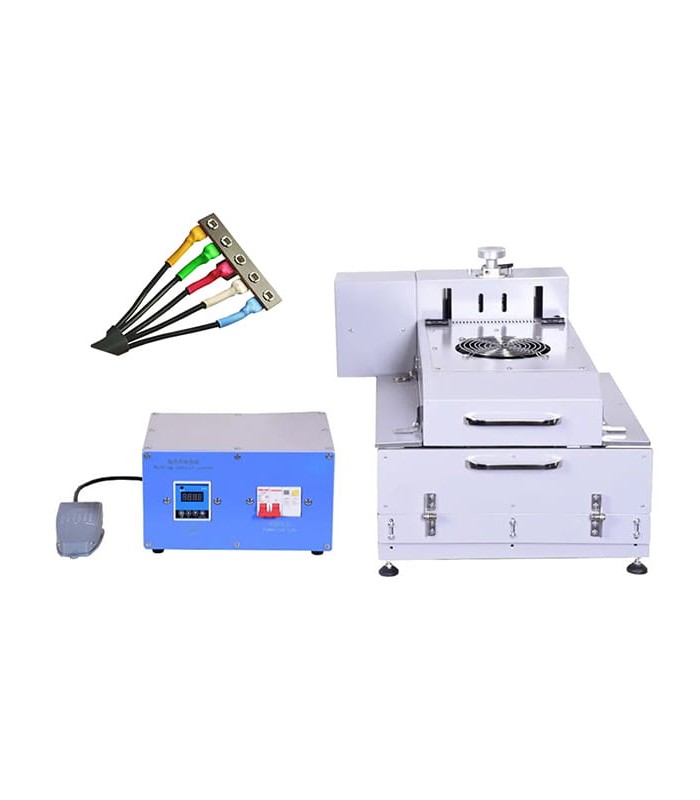

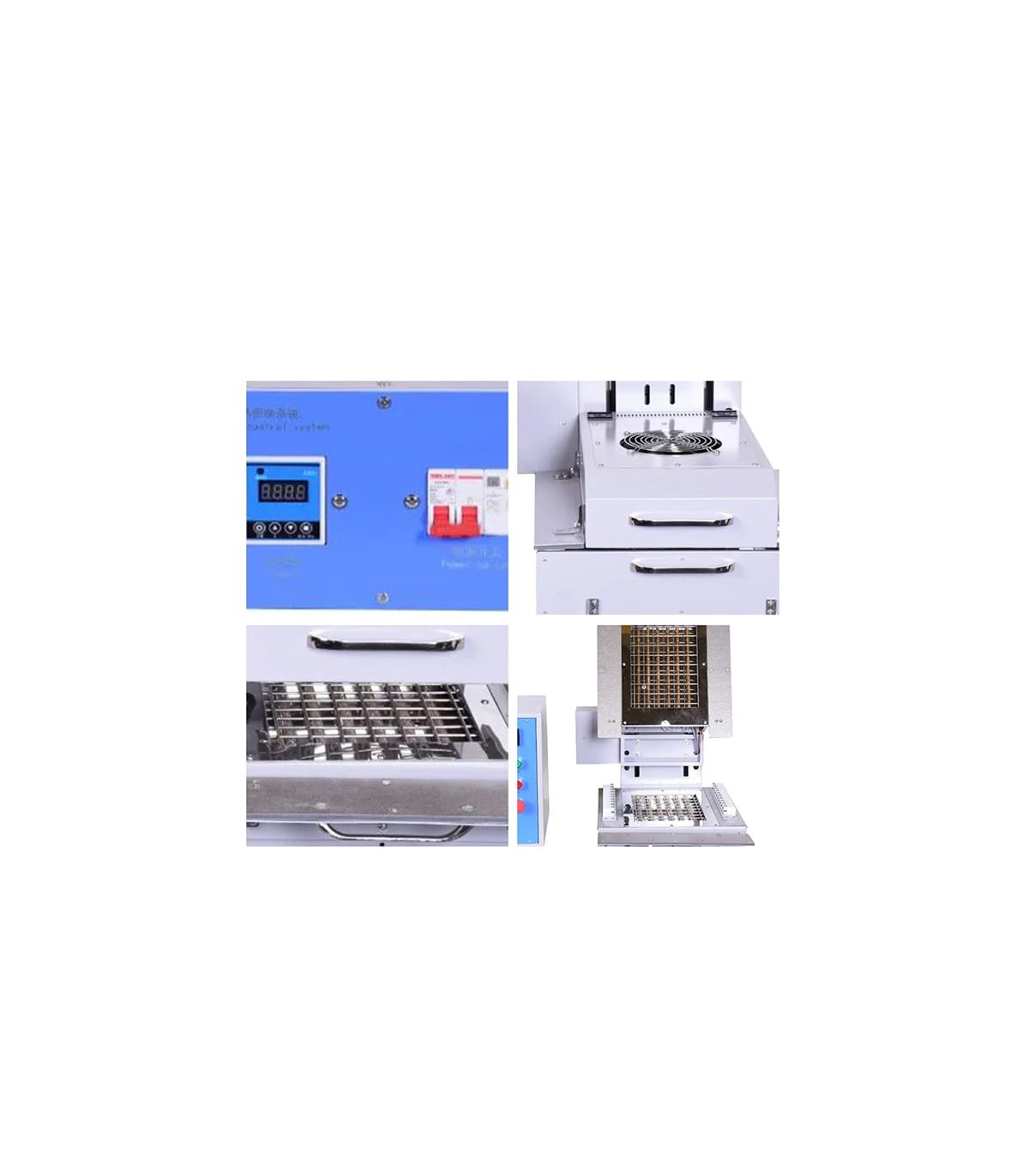

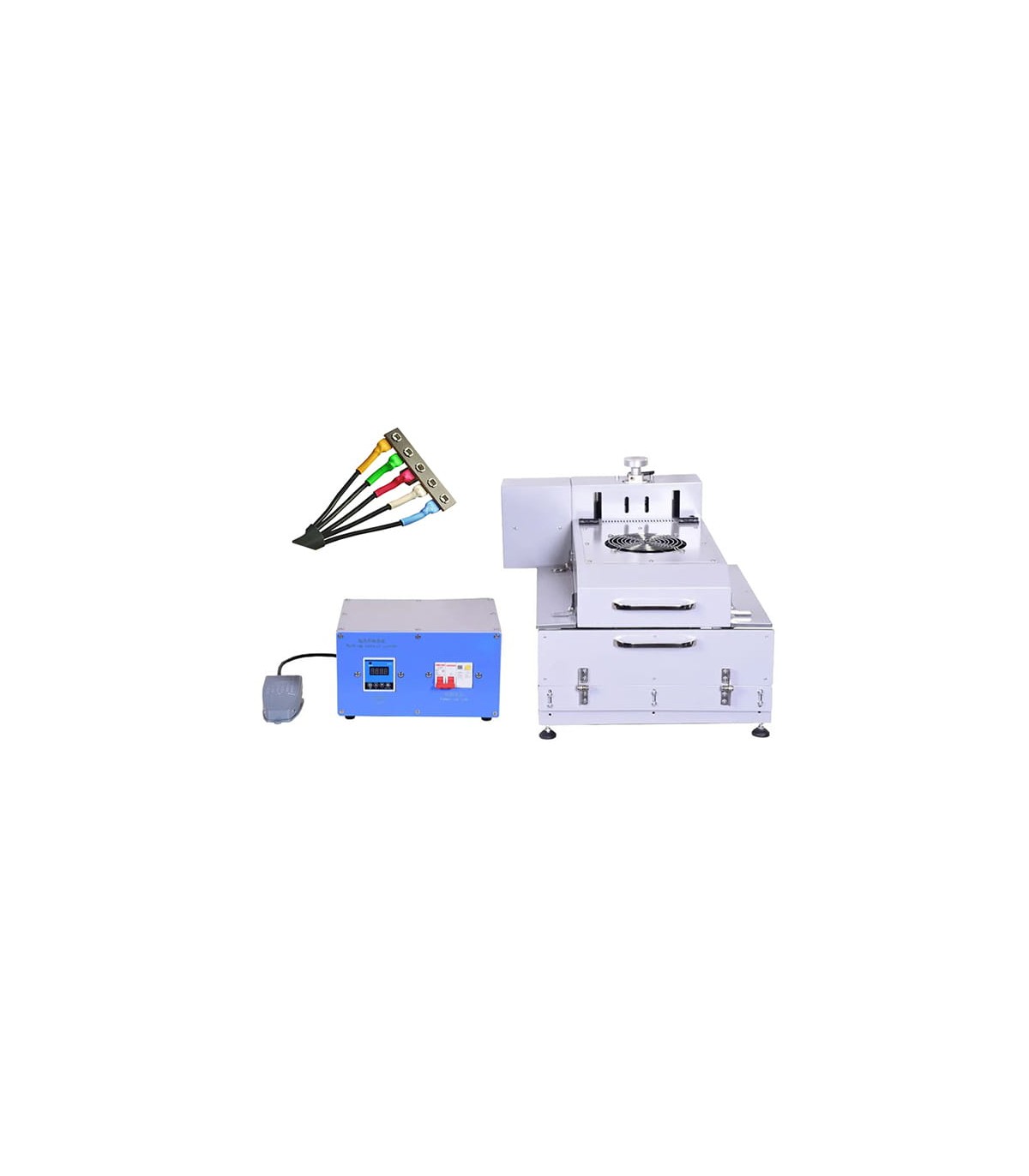

Infrared heat shrink tube heating machine

Infrared heat-shrink tube heating machine

The RBEW19C is a machine designed for controlled heating and shrinking of heat-shrink tubing applied to cables, electrical wiring harnesses and industrial components.
Thanks to the infrared radiation heating system, it allows uniform and precise heat shrinking, reducing the risk of deformation, burns or irregular shrinking.
The machine is particularly suitable for applications where heat-shrink tubing needs to be heated on large cables or complex wiring harnesses, ensuring effective heat distribution over the area to be processed.
The usable heating area allows processing of cables with a diameter up to 100 mm, width up to 260 mm and length up to 180 mm, making the machine suitable for various industrial applications.
The working temperature adjustable up to 260 °C allows the process to be adapted to different types of heat-shrink tubing and insulating materials.
The system is equipped with 12 heating tubes of 300 W, ensuring high power and good thermal stability during the working cycle.
The compact and robust structure makes the machine suitable for use in production departments, assembly lines, wiring workshops and professional applications where precision, repeatability and reliability are required.

OPERATING PRINCIPLE

- The cable with the heat-shrink tubing is positioned in the heating area
- The machine generates heat through infrared radiation
- The heat is distributed over the surface of the tubing
- The tubing shrinks uniformly around the cable or component
- The process provides a clean, stable and professional finish
- The wiring harness is ready for the next assembly or quality control stages

MAIN ADVANTAGES

- Infrared heating for uniform heat shrinking
- Ideal for heat-shrink tubing on cables and wiring harnesses
- Suitable for cables with diameter up to 100 mm
- Large working area for wiring harnesses and components of different sizes
- Adjustable temperature up to 260 °C
- High heating power thanks to 12 tubes of 300 W
- Reduction of shrinking defects
- Improved aesthetic and functional quality of the finished wiring harness
- Stable and repeatable process
- Robust structure for professional and industrial use
- Suitable for series production

MAIN APPLICATIONS

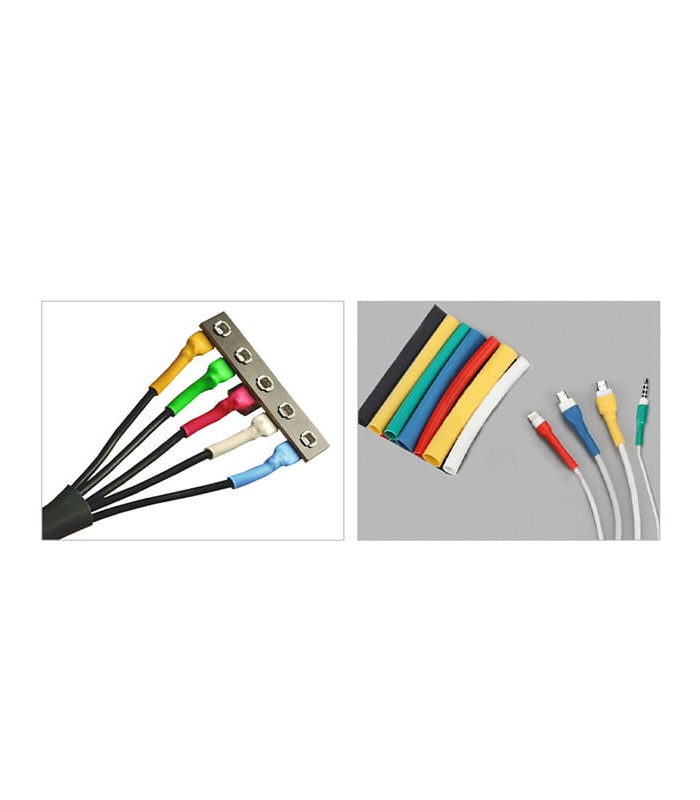

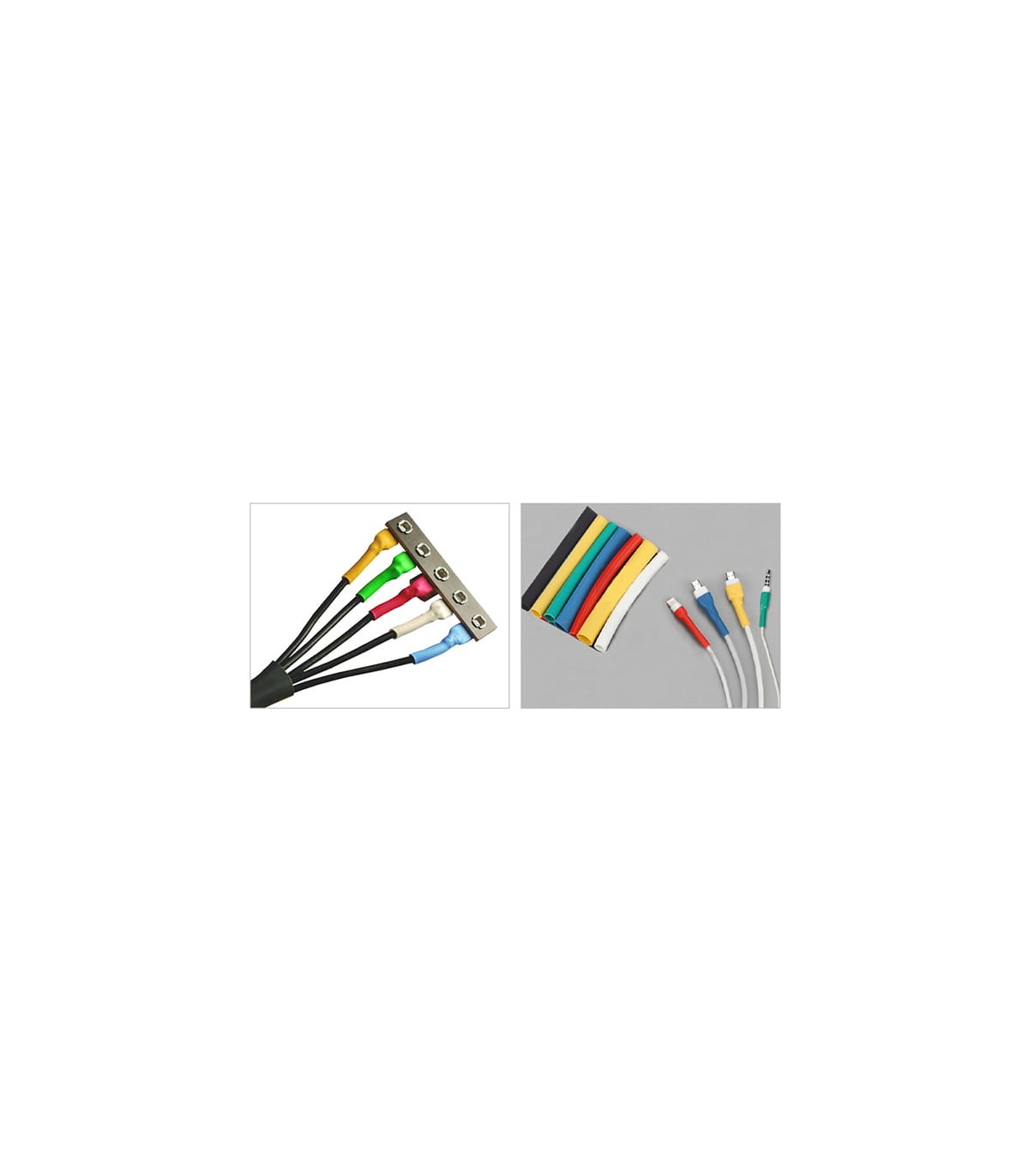

- Heat shrinking of tubing on electrical cables
- Processing of industrial wiring harnesses
- Wiring harness assembly
- Automotive sector
- Electrical panel production
- Protection and insulation of electrical connections
- Wiring harnesses with large-diameter tubing
- Electronic and industrial applications
- Assembly and production departments
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW19C

Machine type: heat-shrink tube heating machine

Heating type: infrared radiation

Maximum heatable cable diameter: < 100 mm

Maximum heatable cable width: < 260 mm

Maximum heatable cable length: < 180 mm

Maximum heating temperature: < 260 °C

Heating tube power: 300 W x 12

Machine power: < 4000 W

Overall machine dimensions: 470 x 547 x 387 mm; 270 x 252 x 151 mm

Overall machine weight: 50 kg

Application: heating and shrinking of heat-shrink tubing on cables and wiring harnesses

Operation: controlled infrared heating

Use: professional and industrial
