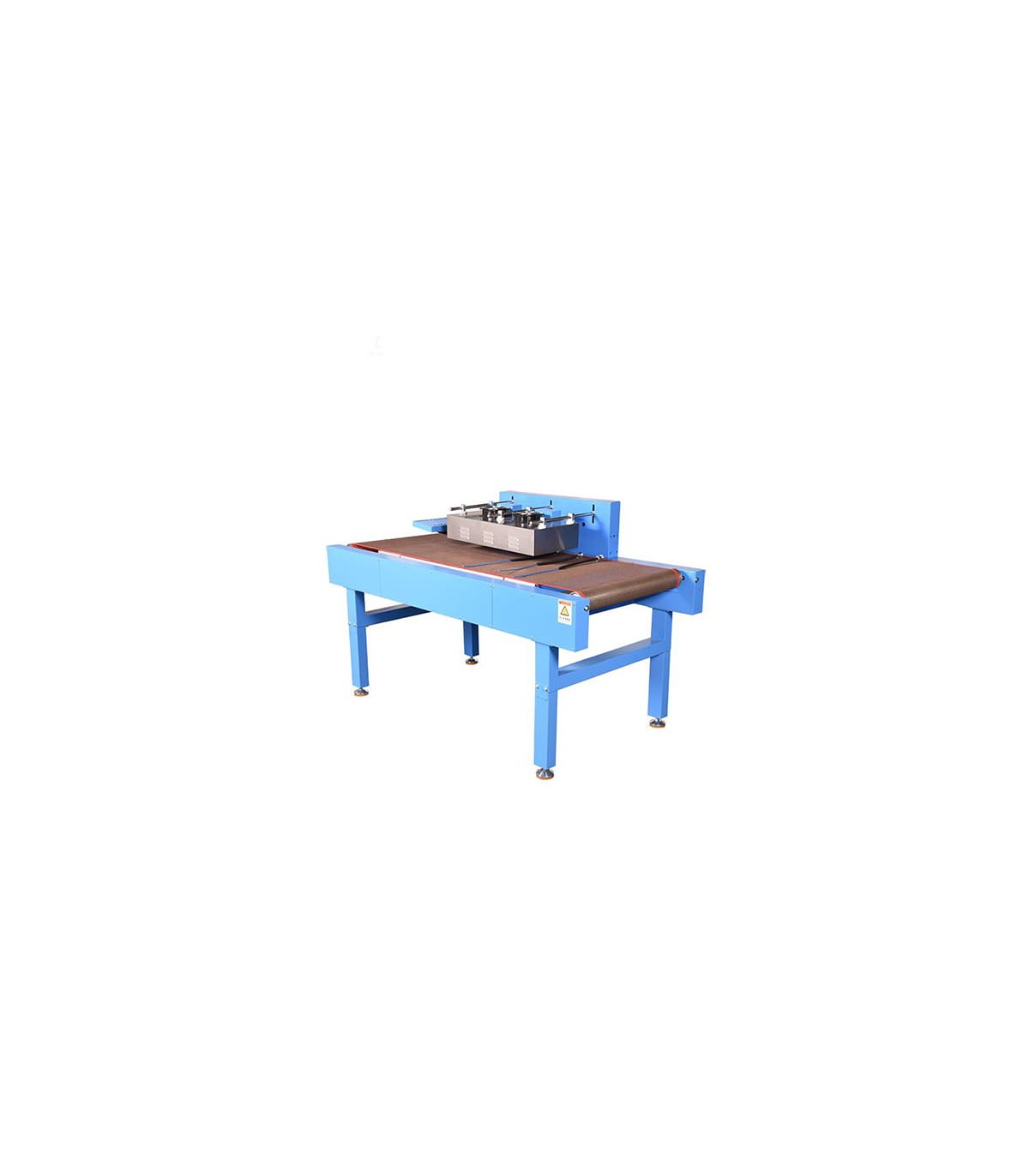

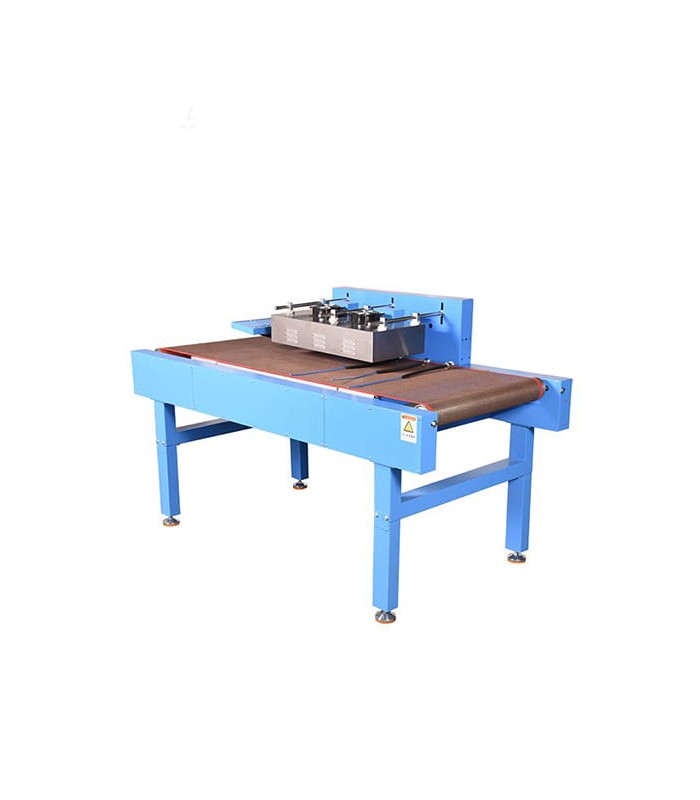

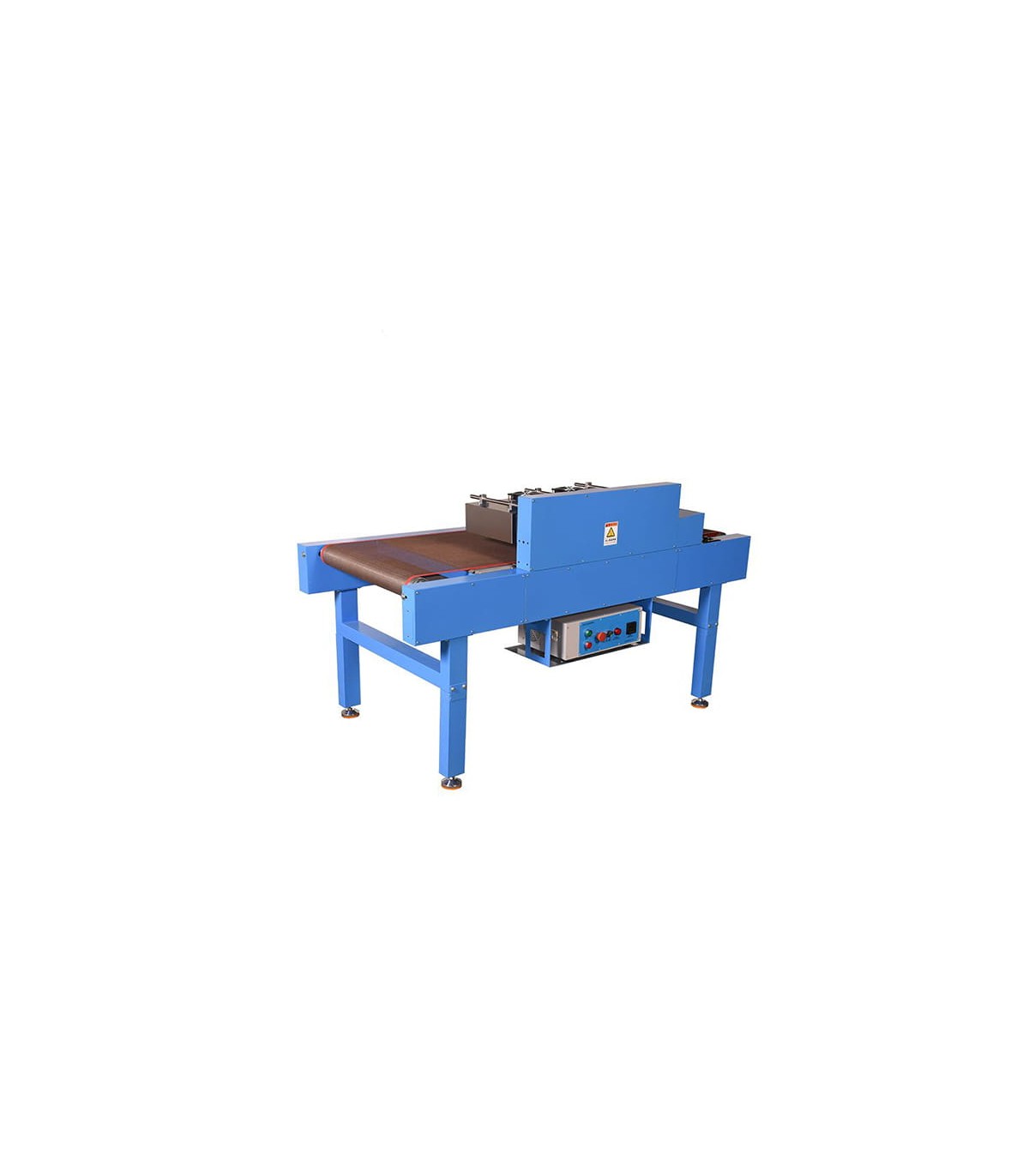

Automatic heat shrinking machine for tubing (6 - 25 mm)

The RBEW19102 is a professional machine for heating heat-shrink tubing, designed to ensure efficiency, reliability, and uniformity in industrial and production environments. It is ideal for electrical harnesses, the automotive sector, electronic equipment, and assembly lines that require precision and cThe RBEW19102 is a professional machine for heating heat-shrink tubing, designed to ensure efficiency, reliability, and uniformity in industrial and production environments. It is ideal for electrical harnesses, the automotive sector, electronic equipment, and assembly lines that require precision and continuous operation.

Operation is based on a bilateral heating system, which distributes heat evenly across the entire surface of the heat-shrink tube. The temperature is adjustable from 1 to 260 °C with a tolerance of ±5 °C, ensuring a consistent process without the risk of cable damage. The heating power is < 4 kW, with optimized consumption thanks to digital control and continuous output regulation.

The machine can process cables with diameters between 6 and 25 mm and heat-shrink tubes up to 120 mm in length, handling a maximum transport width of 650 mm. The conveyor speed is adjustable between 1 and 3 m/min, allowing adaptation to both small-scale production and high-volume lines.

From an operational perspective, the RBEW19102 is extremely flexible: heating can be applied to a cable end, an intermediate section, or longer tubes as required. The heater height and distance from the belt can be adjusted to fit components of different sizes.

Key advantages include 24/7 continuous operation, with protection against overheating, overload, and possible electrical faults, no harmful emissions during operation, and a low noise level (< 53 dB), making the working environment more comfortable.

Main technical data:
Model: RBEW19102
Cable diameter: 1 – 25 mm
Heat-shrink tube length: 1 – 120 mm
Transport width: up to 650 mm
Temperature range: 1 – 260 °C
Temperature Tolerance: ± 5 °C
Heating power: < 4 kW
Heating system: bilateral
Transport speed: 1 – 3 m/min
Noise: < 53 dB
Weight: 103 kg
Dimensions: 1800 × 860 × 1070 mm
