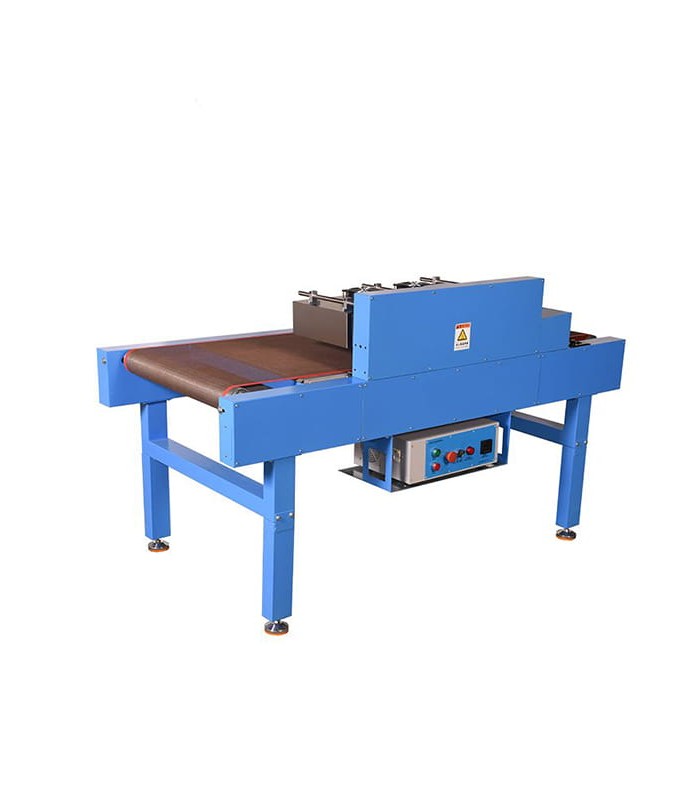

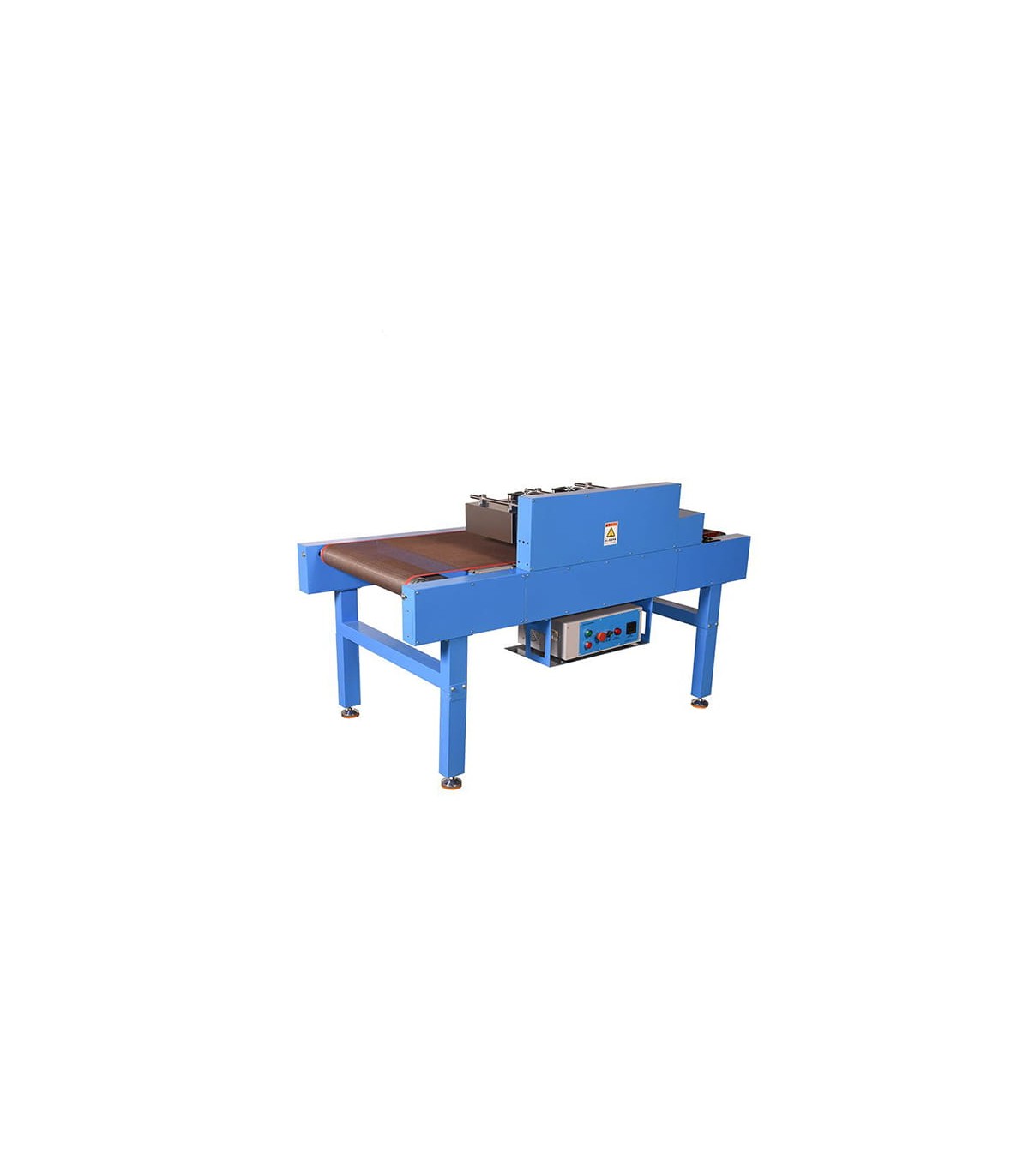

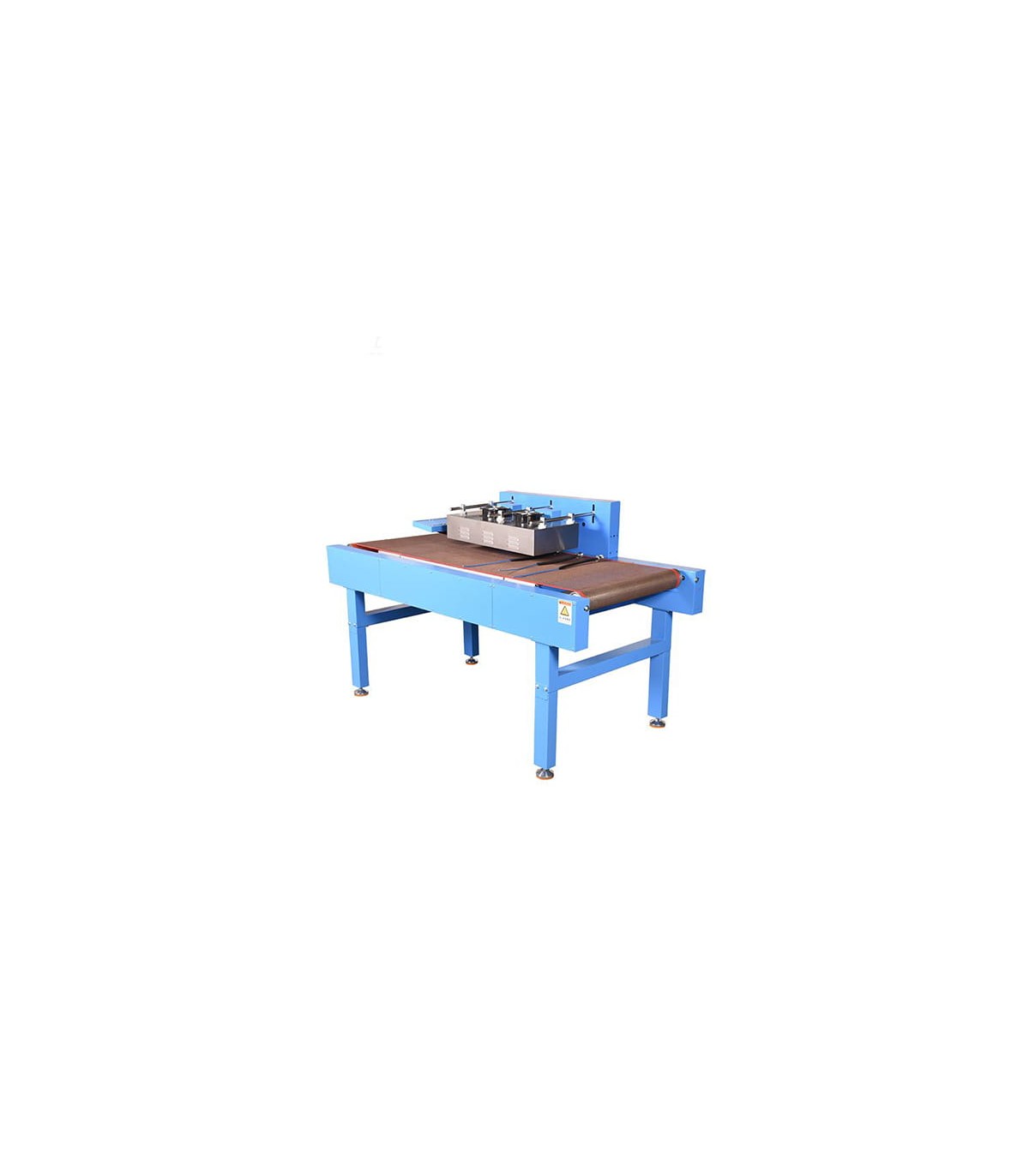

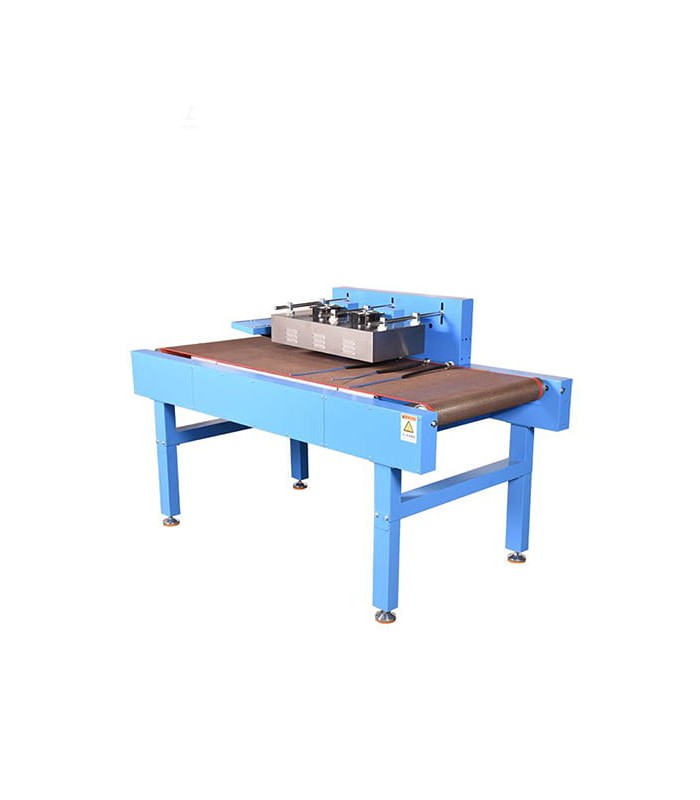

Automatic heat shrinking machine for tubing (1 - 25 mm)

The RBEW1910-3 is a professional machine for heating heat-shrink tubing, designed to ensure efficiency, reliability, and uniformity in industrial and production environments. It is ideal for electrical harnesses, the automotive sector, electronic equipment, and assembly lines that require precision and continuous operation.

The operation is based on a bilateral heating system, which distributes heat evenly across the entire surface of the heat-shrink tube. The temperature is adjustable from 1 to 260 °C with a tolerance of ±5 °C, ensuring a consistent process without the risk of cable damage. The heating power is < 8 kW, with optimized consumption thanks to digital control and continuous output regulation.

The machine can handle cables with diameters between 1 and 25 mm and heat-shrink tubes up to 220 mm in length, with a maximum transport width of 650 mm. The conveyor speed is adjustable between 1 and 3 m/min, making it suitable for both small series and high-volume production.
From an operational perspective, the RBEW1910-3 is extremely flexible: heating can be applied to a cable end, an intermediate section, or longer tubes as required. The heater height and distance from the belt can be adjusted to fit components of different sizes.

Key advantages include 24/7 continuous operation, with protection against overheating, overload, and possible electrical faults, no harmful emissions during use, and a low noise level (< 53 dB), making the working environment more comfortable.

Main technical data:
Model: RBEW1910-3
Cable diameter: 1 – 25 mm
Heat-shrink tube length: 1 – 220 mm
Transport width: up to 650 mm
Temperature range: 1 – 260 °C
Temperature accuracy: ± 5 °C
Heating power: < 8 kW
Heating system: bilateral
Transport speed: 1 – 3 m/min
Noise: < 53 dB
Weight: 172 kg
Dimensions: 1800 × 860 × 1070 mm
