Automatic machine for cutting and stripping single and multicore cables
Errebi code: 63753
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow lessDELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
€7,885.73
(tax excl.)
€9,620.59
(tax incl.)
Condition
New
Reference:
RBEW05F
Brand:
Add to wishlist

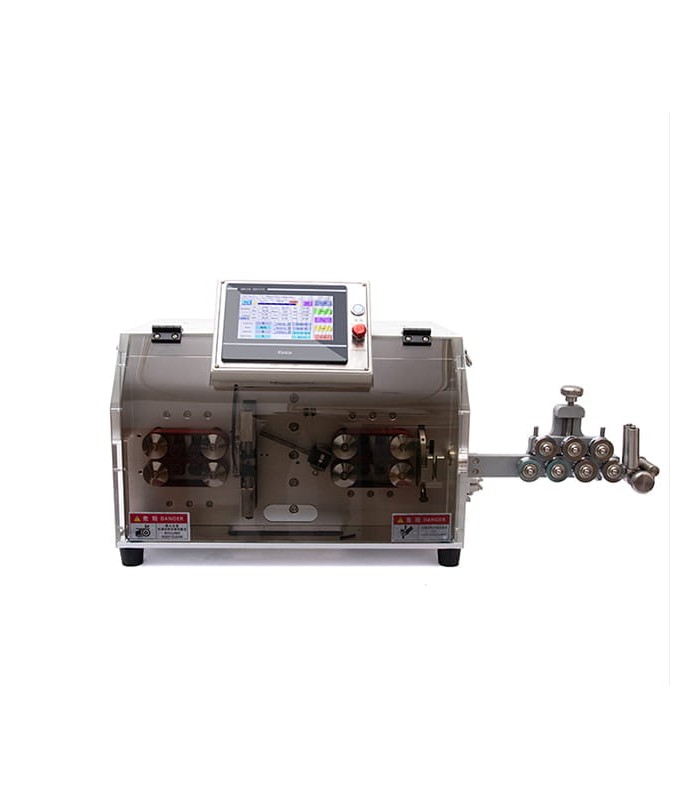

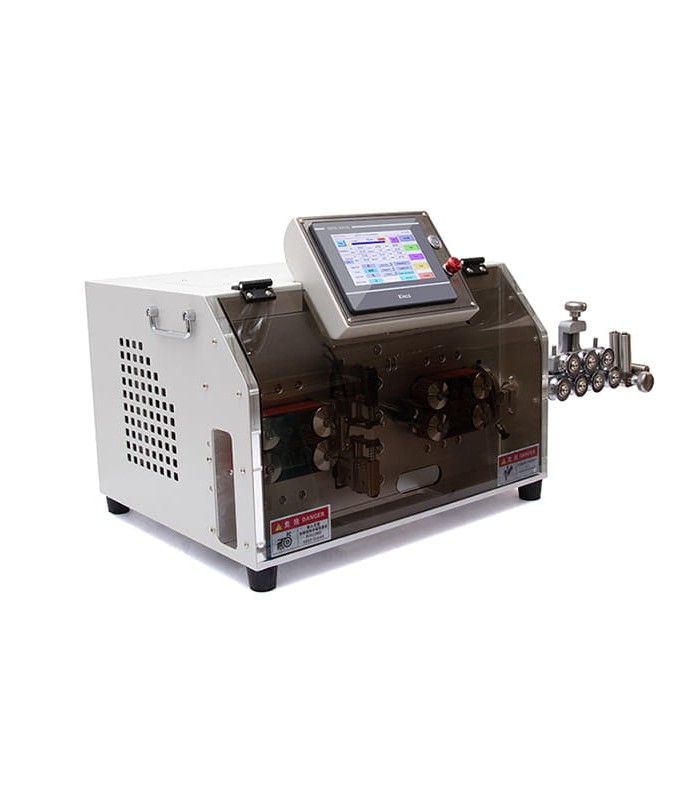

The RBEW-05F is an automatic machine for cutting and stripping single-core and multi-core cables with cross-sections up to 30 mm², supporting up to 7 internal conductors.
The machine is ideal for industrial, electronic and automotive wiring production, where clean stripping, precise cutting length and high productivity are required.
Main features
1) Versatility: processes single-core and multi-core cables (up to 7 internal conductors).
2) High precision: cutting tolerance less than 0.002 × L (L = cutting length).
3) Uniform feeding: 16-wheel belt system ensuring stability and no marks on the insulation.
4) Servo motor: precise length control and constant speed.
5) High-quality blades: made of steel, with options for special materials (PVC, rubber).
6) 7” touch display: intuitive interface for programming cutting and stripping parameters.
Main technical data
Model: RBEW05F
Conductor cross-section (single-core): 0.50 - 30.00 mm²
Number of internal conductors: 2 - 7 conductors
Cable diameter (multi-core): 0 - 16 mm
Cutting length: 1 - 99,999.99 mm
Stripping length (side I): cable jacket
- Full strip (complete insulation removal, for crimping, soldering, direct connections): 1 - 120 mm
- Half strip (insulation partially attached): 1 - 1000 mm
Inner wire
- Full strip (complete insulation removal, for crimping, soldering, direct connections): 1 - 120 mm
- Half strip (insulation partially attached): 1 - 120 mm
Stripping length (side II): cable jacket
- Full strip (complete insulation removal, for crimping, soldering, direct connections): 1 - 80 mm
- Half strip (insulation partially attached): 1 - 350 mm
Inner wire
- Full strip (complete insulation removal, for crimping, soldering, direct connections): 1 - 80 mm
- Half strip (insulation partially attached): 1 - 80 mm
Maximum inner diameter of guide tube: 16 mm
Productivity: 600 pcs/h (single-core cables)
Productivity: 400 pcs/h (multi-core cables)
Display: 7” touchscreen
Power: 1 kW
Power supply: AC 110/220 V, 50–60 Hz
Air pressure: 0.5 – 0.7 MPa
Weight: 100 kg
Dimensions: 795 × 490 × 500 mm
RBEW05F
Data sheet
- Product type
- Cable cutting and stripping machine
- Wattage
- 1 kW
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 795x490x500 (L x W x H)
- Cable section mmq
- 0.50 mmq - 30 mmq
- Minimum order quantity
- 1
- Unit Type
- piece
- Outer diameter of cable
- 0 - 16 mm
- Maximum inner diameter of guide tube
- 16 mm
- Stripping length Side1
- Cable jacket: Full strip: 1 - 120 mm / Half strip: 1 - 1000 mm, Core wire: Full strip: 1 - 120 mm / Half strip: 1 - 120 mm
- Stripping length Side2
- Cable sheath: Full strip: 1 - 80 mm / Half strip: 1 - 350 mm, Core wire: Full strip: 1 - 80 mm / Half strip: 1 - 80 mm
- Length of Cut
- 1 - 99999,99 mm
- Blade material
- tungsten steel
- Driving mode
- 16 rollers with servomotor
- Viewing mode
- 7" touch screen
- Air pressure
- 0.5 - 0.7 MPa
- Productivity
- 400 - 600 pz/h
