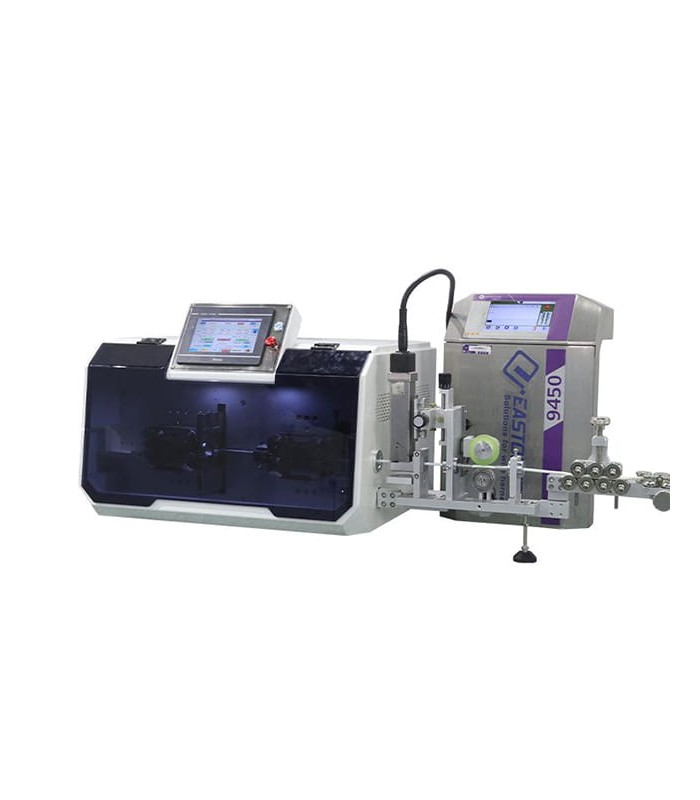

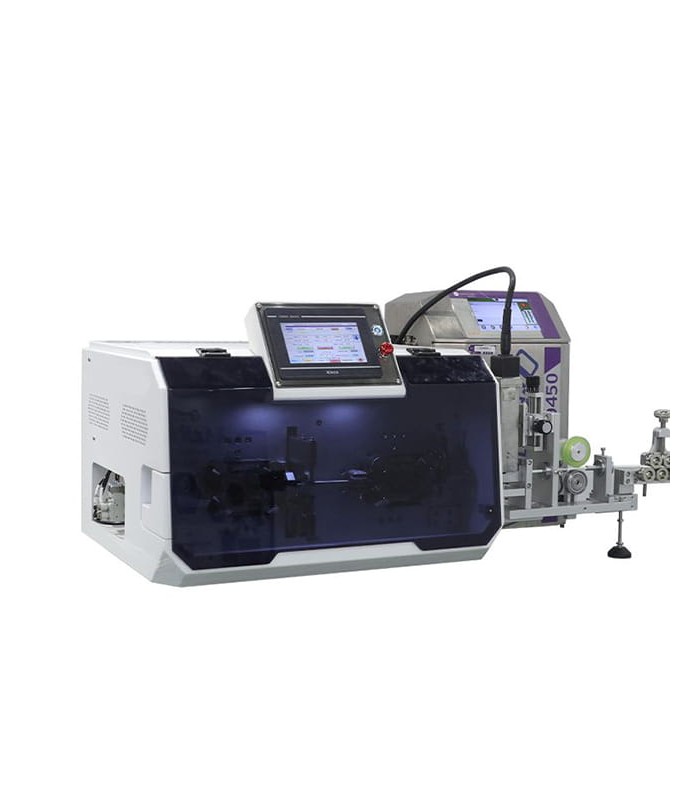

Automatic machine for cutting and stripping single and multi-core cables (1-30 mm²) + inkjet marker
Automatic machine for cutting and stripping single and multi-core cables (1-30 mm²) + inkjet marker
Automatic machine for cutting and stripping single and multi-core cables (1-30 mm²) + inkjet marker
Automatic machine for cutting and stripping single and multi-core cables (1-30 mm²) + inkjet marker

Automatic machine for cutting and stripping single and multi-core cables (1-30 mm²) + inkjet marker

Errebi code: 66474
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€20,960.06 (tax excl.)
€25,571.27 (tax incl.)
'Available in 70 working days from the order.'
Condition
New
Reference:
RBEW05F+P
Brand:
ErreBi Group
Add to wishlist
Description

The RBEW-05F+P machine is an automatic machine designed for cable cutting and stripping with high precision and continuous productivity. It is specifically developed for professional assembly lines and wiring departments that require repeatability, speed and accuracy even during long production cycles.


Thanks to its reinforced feeding system and digital control technology, the RBEW-05F+P allows processing a wide range of materials: PVC, Teflon, silicone, fiberglass and other high-performance insulation types. The roller feeding system ensures stable cable advancement, while the high-hardness steel blade unit guarantees clean and precise cuts.


Operating mode


Installation


1) Place the machine on a stable workbench.
2) Connect to the 220 V AC power supply (50-60 Hz).
3) Check proper grounding and switch on the unit via the front panel.

Material setup


1) Adjust the inlet guide according to the cable cross-section.
2) Insert the cable into the feed rollers up to the indicated point.
3) Select the cable type and stripping mode via the LCD panel.

Processing programming


Using the digital panel it is possible to set:


  • Cutting length

  • Stripping lengths (front and rear)

  • Blade cutting depth

  • Feed speed

  • Number of pieces to be produced

  • Stored programs for different cable types

    • Cycle start


    1) Start the automatic cycle.
    2) The machine cuts, strips and releases each finished piece sequentially.
    3) Check the first pieces to verify correct settings.

    Technical characteristics


  • Model: REW-05F+P

  • Processing type: automatic cutting + stripping

  • Supported materials: PVC, Teflon, silicone, fiberglass, XLPE

  • Display: digital LCD

  • Maximum guide tube diameter: 16 mm

  • Cable cross-section: 1 - 30 mmq

  • Cutting length: 1 - 99999.99 mm

  • Productivity (single cable): 600 pcs./h

  • Productivity (multicore cable): 400 pcs./h

  • Roller control: motorized

  • Power supply: AC 220 V – 50/60 Hz

  • Power: 450–600 W

  • Noise level: < 55 dB

  • Operating mode: continuous or single piece

    • Read moreShow less
    Product Details
    RBEW05F+P

    Data sheet

    Product type
    Cable cutting and stripping machine
    Wattage
    450 - 600W
    Voltage/Frequency
    CA 220V/ 50/60Hz
    Dimensions
    830x630x760 (L x W x H)
    Cable section mmq
    1.00 mmq - 30.00 mmq
    Minimum order quantity
    1
    Unit Type
    piece
    Maximum inner diameter of guide tube
    16 mm
    Stripping length Side1
    1 - 150 mm
    Stripping length Side2
    1- 80 mm
    Length of Cut
    1 - 99999,99 mm
    Blade material
    tungsten steel
    Driving mode
    16 wheel drive rollers, with quiet hybrid motor
    Viewing mode
    7" touch screen
    Productivity
    400 - 600 pz/h
    Attachments
    066474_001_DATASHEET.pdf
    Download (802.04KB)
    066474_002_CERTIFICATION.pdf
    Download (3.13MB)
