Crimping tool for non-insulated terminals (Molex, Delphi, AMP, Deutsch)

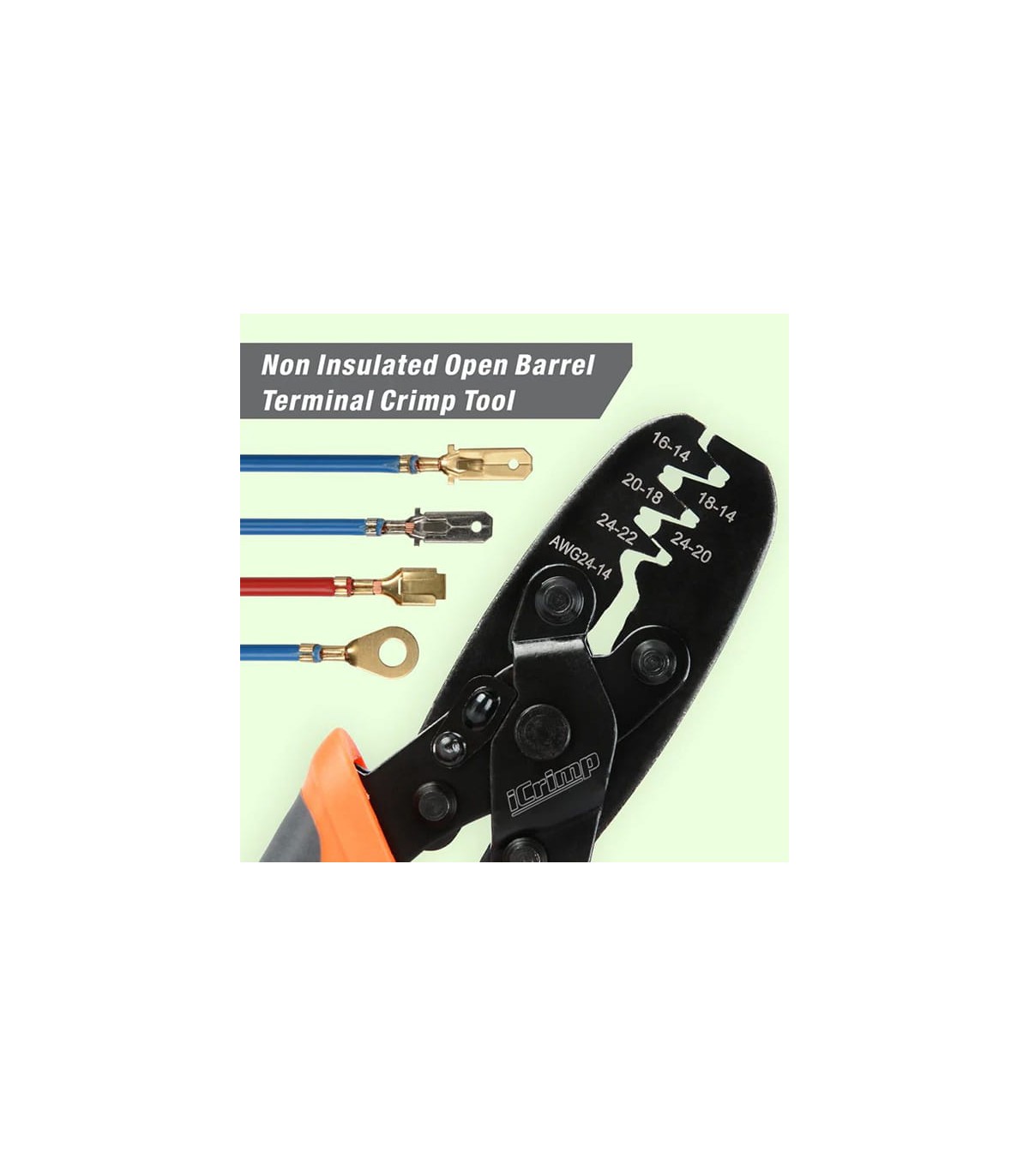

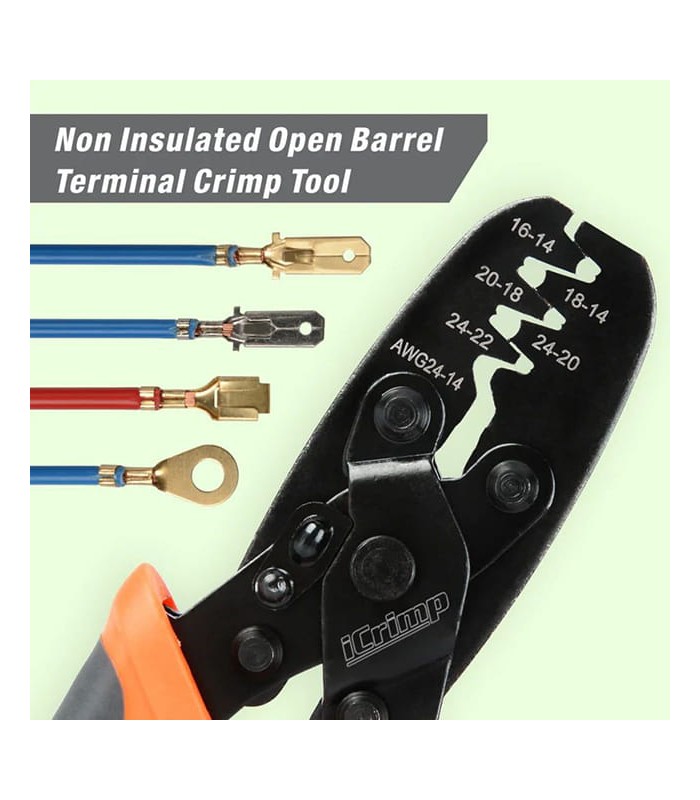

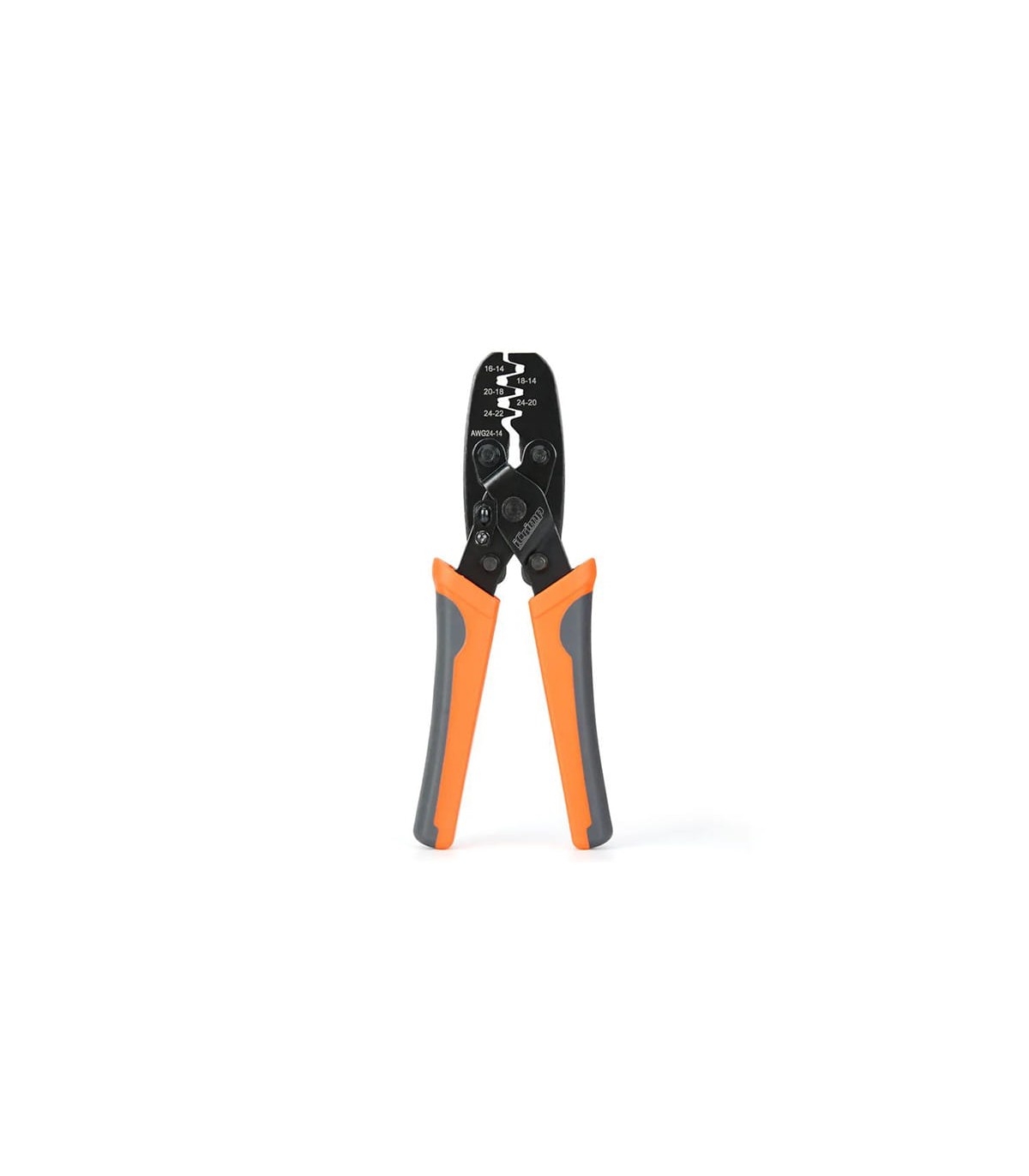

The RBIWS-1424A is a ratchet crimping tool designed for the precise processing of non-insulated open barrel terminals used in Molex, Delphi, AMP-Tyco, Deutsch connectors and automotive, electronic, and computer applications.

The B-crimp profile ensures a controlled wrap of the terminal wings around the conductor, achieving stable, repeatable, and durable electrical connections even in high-density wiring.

Operation (B profile)

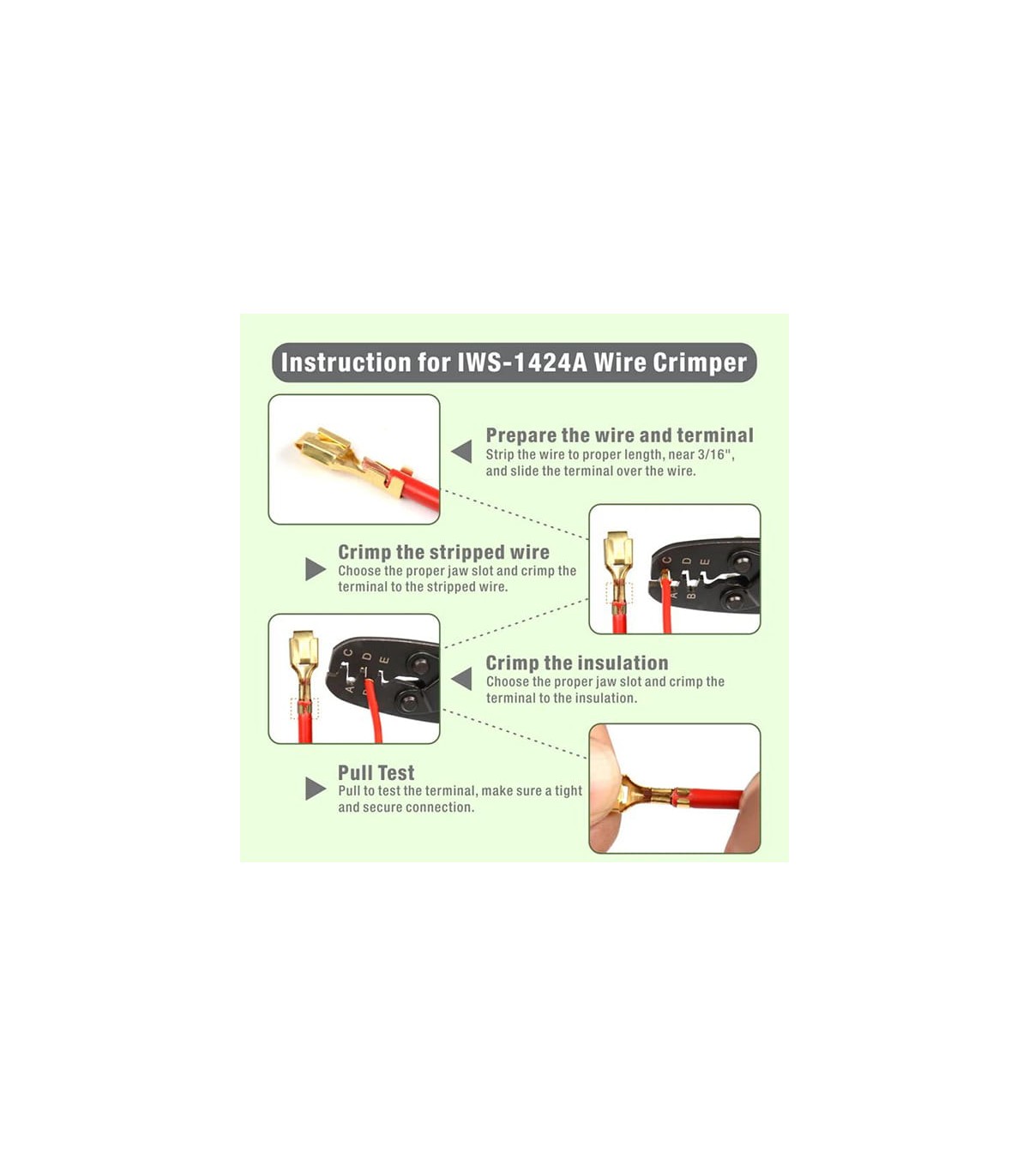

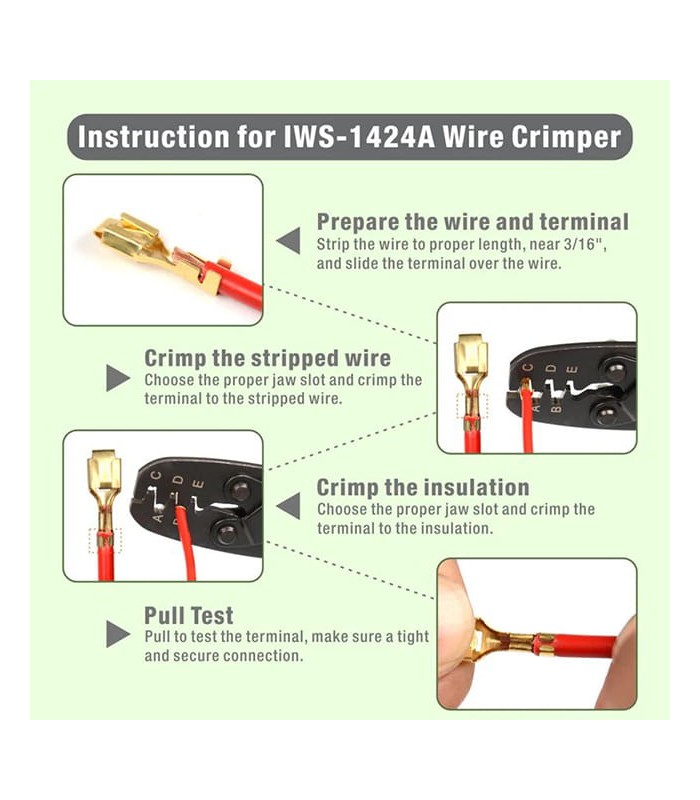

The open barrel terminal is placed in the corresponding crimp cavity; the ratchet mechanism gradually applies pressure until the wings of the terminal wrap around the conductor (and, if applicable, the insulation), forming a B-shaped crimp that ensures reliable electrical contact and mechanical strength.

The cycle cannot be completed until the correct pressure is reached, preventing under-crimping.

Advantages and typical uses

1) Process repeatability: each cycle closes only at the correct force, ensuring consistent quality.

2) Reduced waste: fewer under/over-crimping defects.

3) Automotive wiring.

4) Electronics and PC (fans, backplanes, auxiliary power connections).

5) Electrical panels / automation systems.

6) Repairs and custom wiring.

Technical specifications

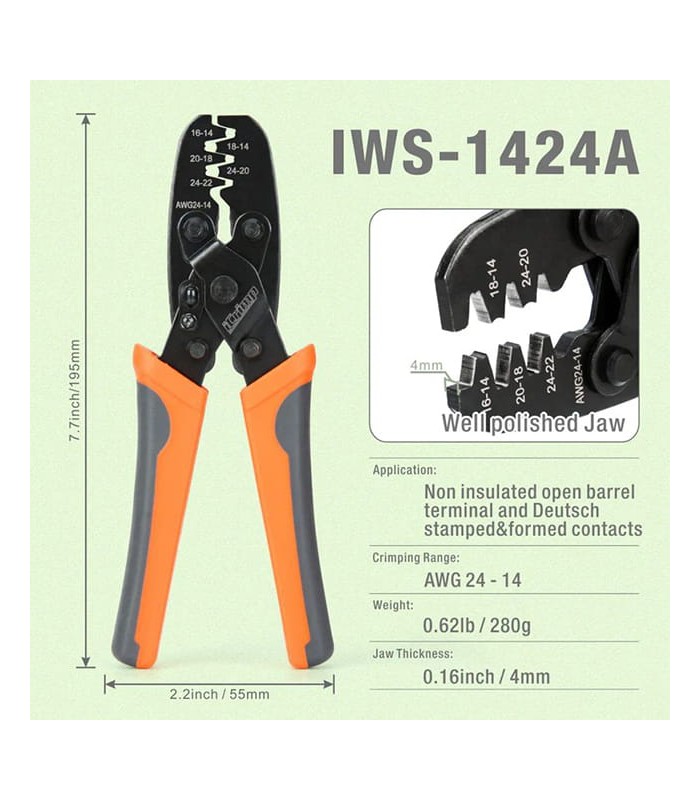

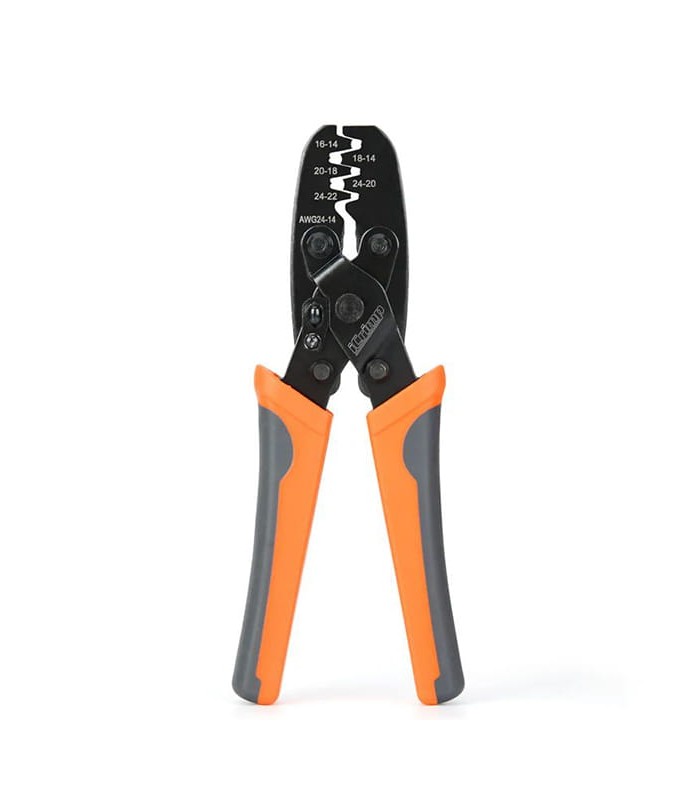

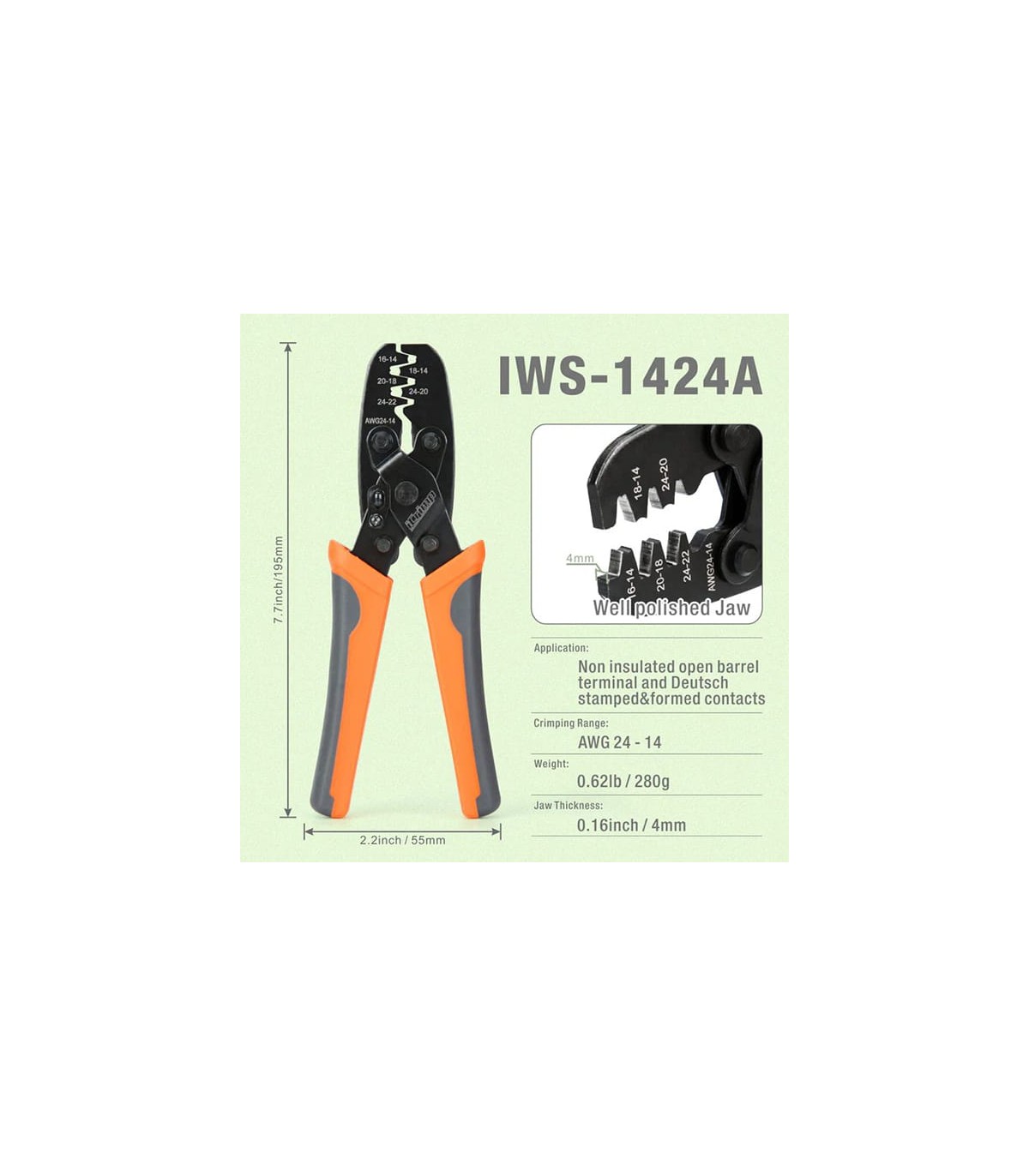

Model: RBIWS-1424A

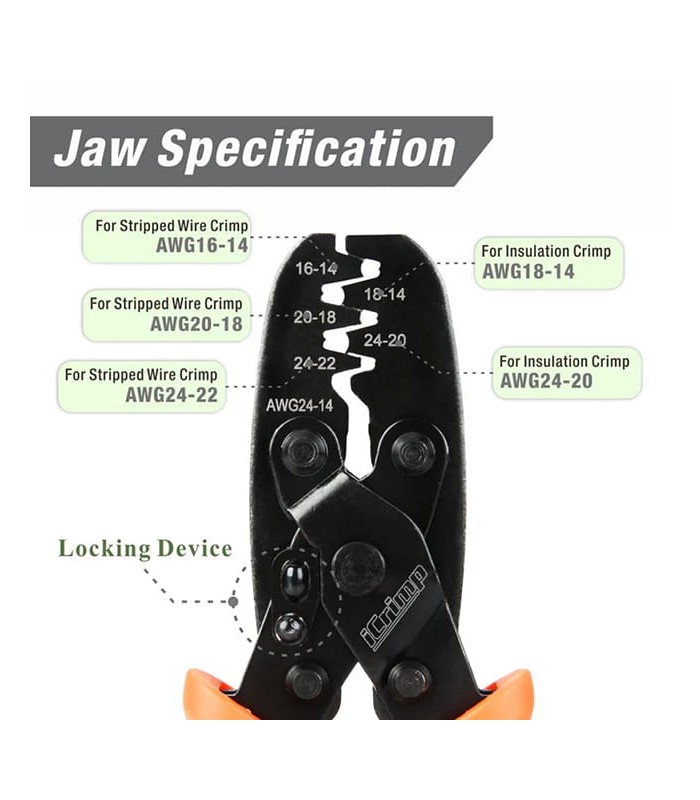

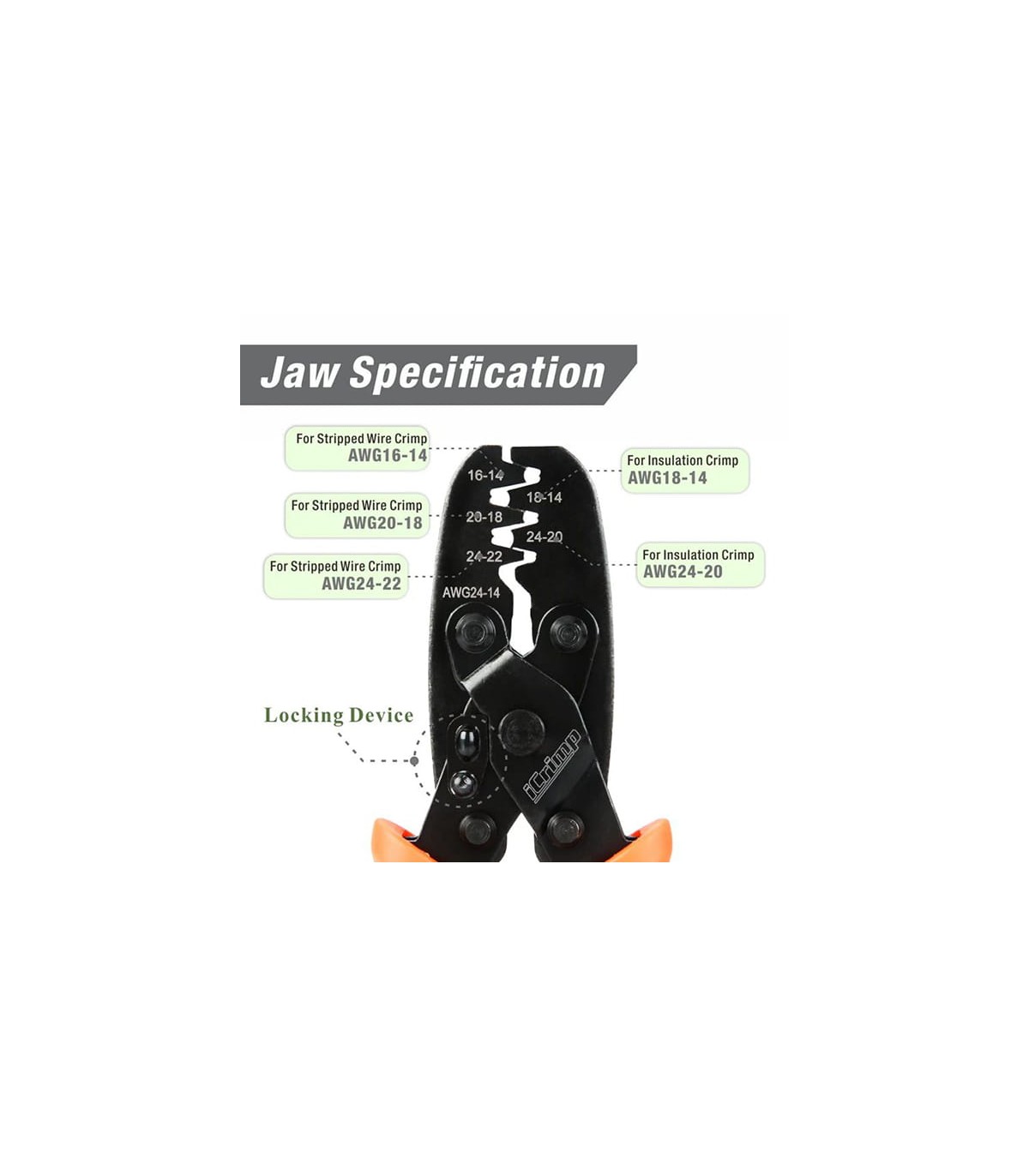

Terminal type: non-insulated open barrel, 5 dedicated crimp ranges

Wire section (mm²): 0.20 - 2.00 mm²

Wire section (AWG): 24 - 14 AWG

Length: 195 mm

Weight: 280 g

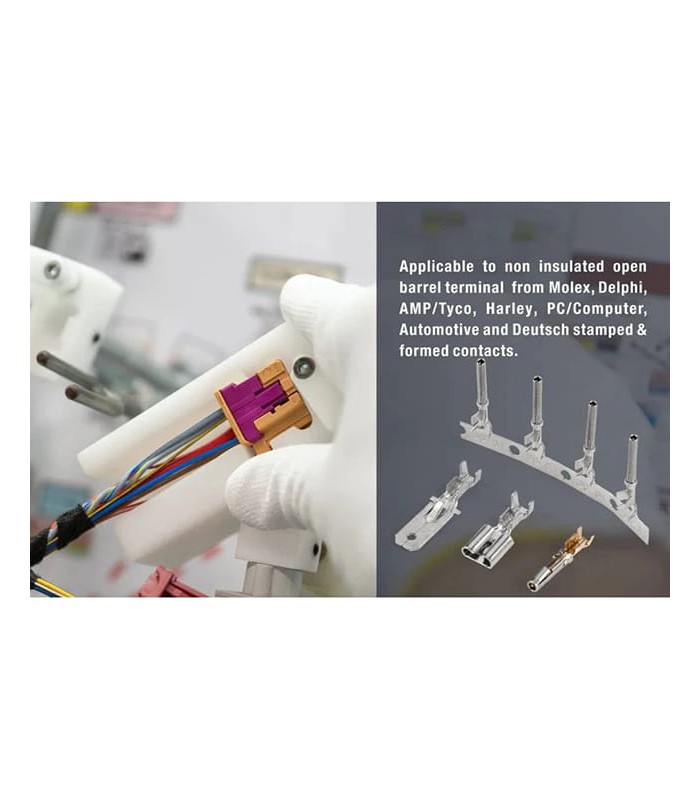

Terminal compatibility: Molex, Delphi, AMP/Tyco, Deutsch, Harley, Automotive
Ergonomics: rubber grips; ratchet mechanism with release
