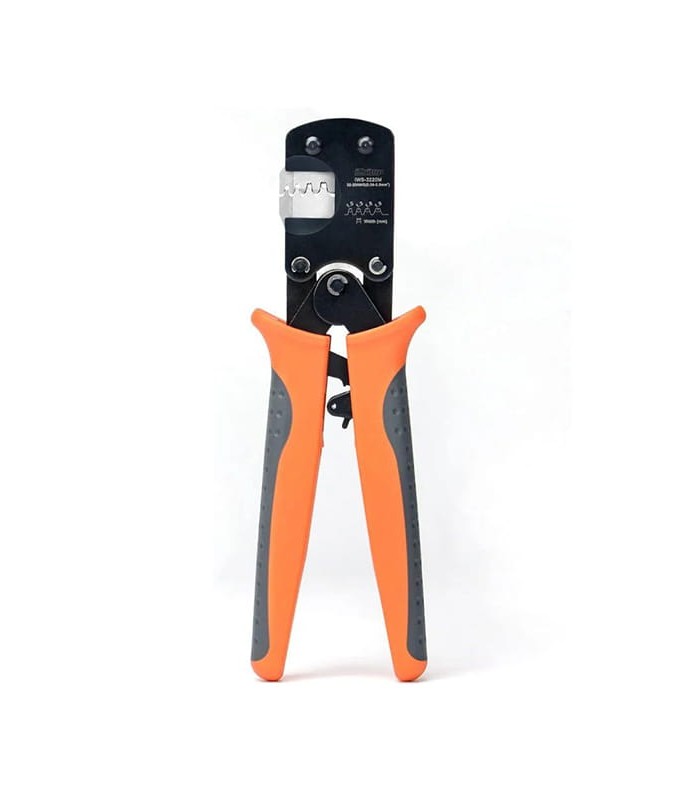

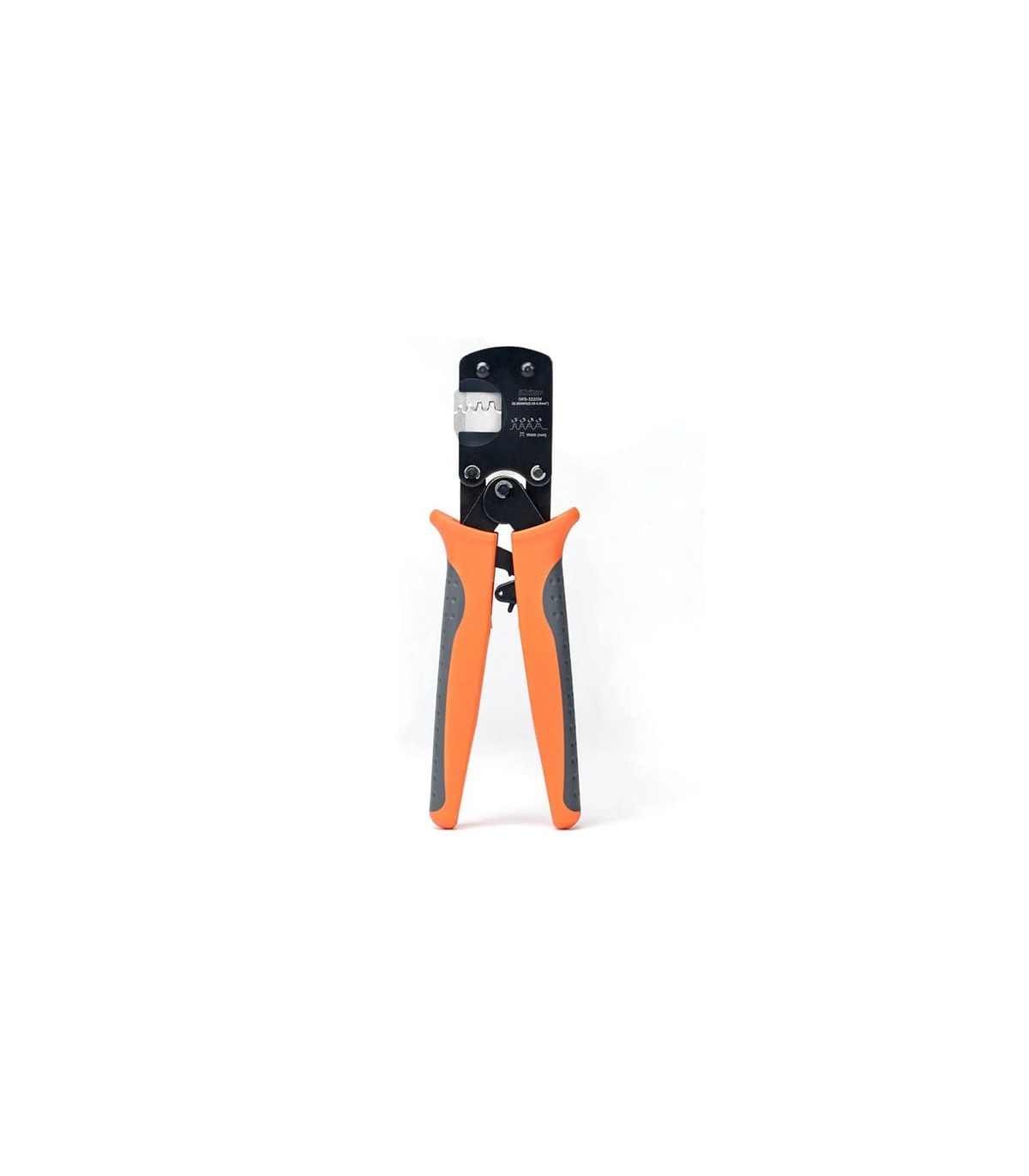

Crimping tool for micro terminals and connectors (Molex, JST, JAE, D-Sub)

The RBIWS-3220M is a precision manual crimping tool designed for micro terminals and small-pitch connectors such as Molex, JST, JAE and D-Sub. It provides consistent results even on ultra-fine wires up to 32 AWG, making it an essential tool for technicians, assemblers and hobbyists requiring professional accuracy.

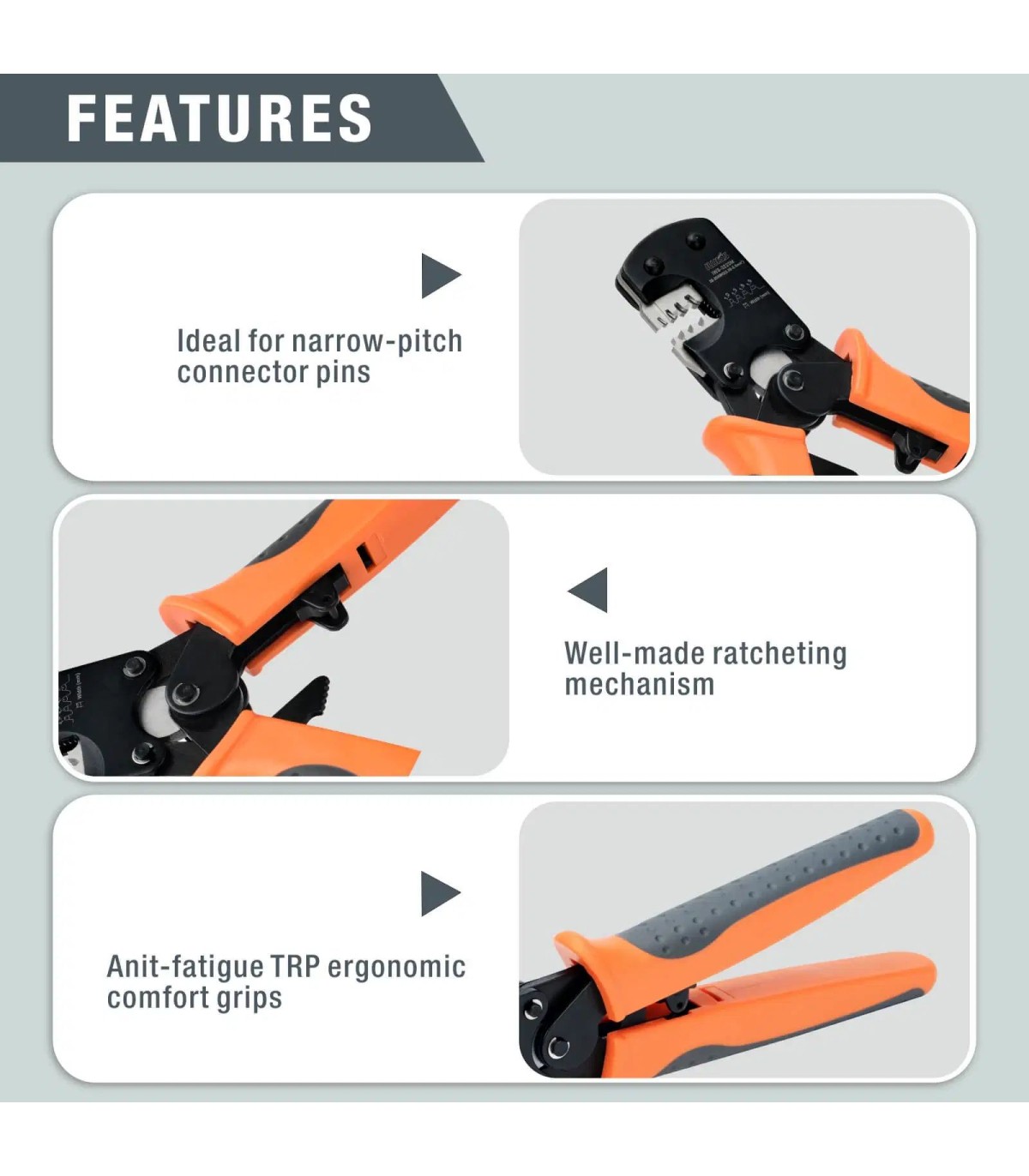

Advantages of the RBIWS-3220M

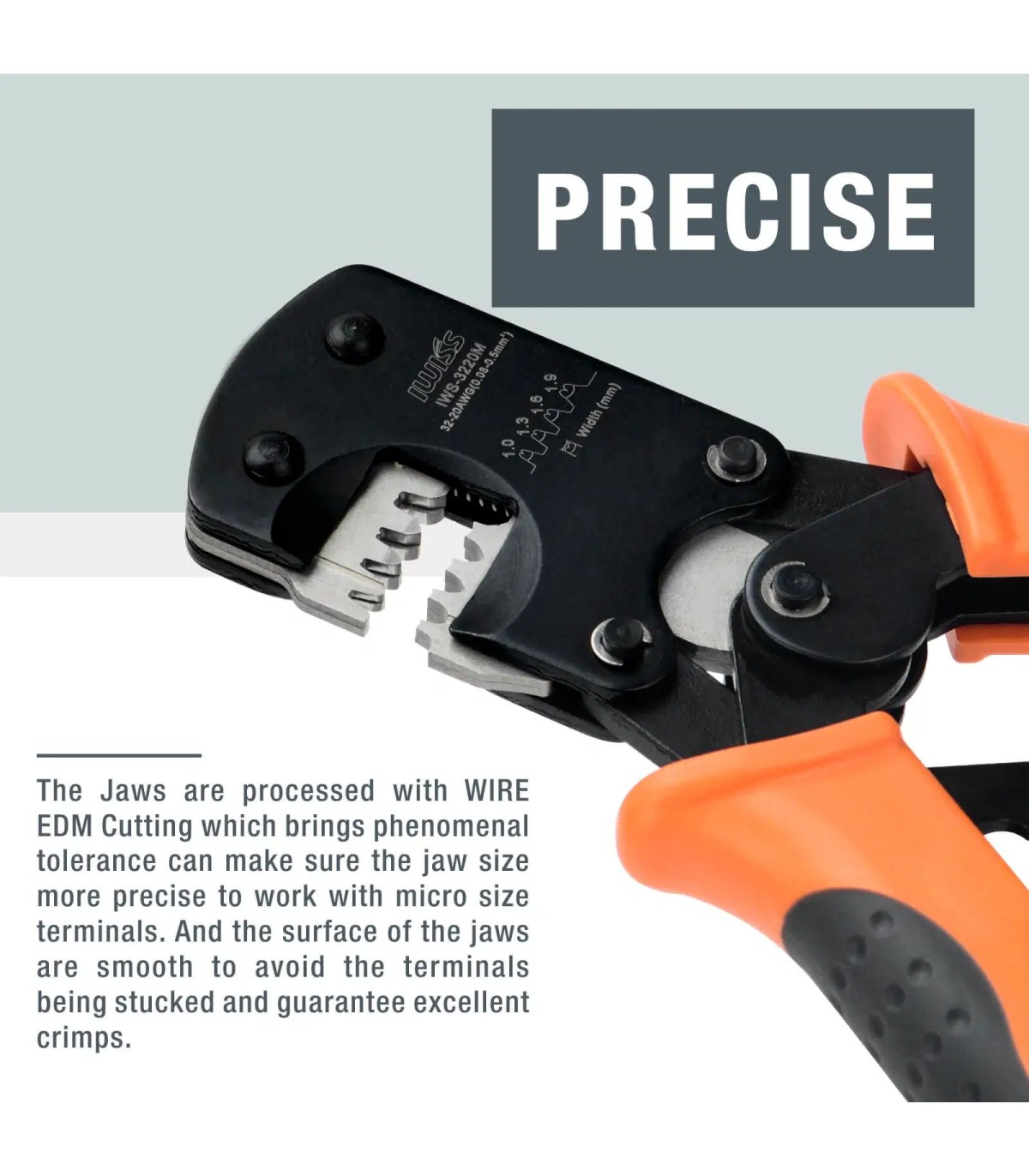

1) High crimping precision: suitable for thin wires and micro terminals, ensuring clean and uniform crimps.

2) Professional reliability: every connection is stable, conductive and durable over time.

3) Ease of use: the ratchet mechanism allows controlled and repeatable crimping.

4) Ideal for electronic and technical use: perfect for laboratories, prototyping and precision assemblies.

Common Uses

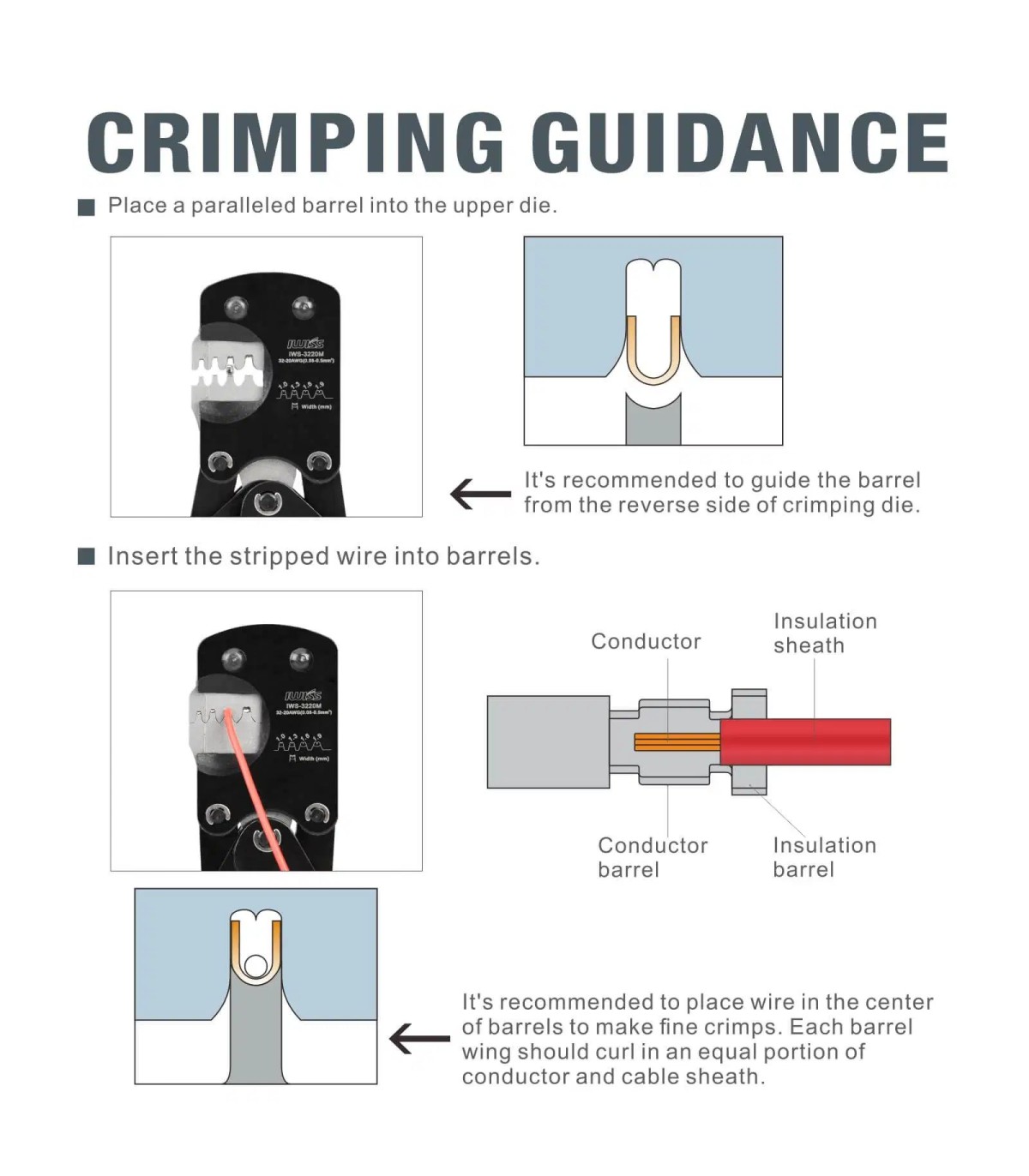

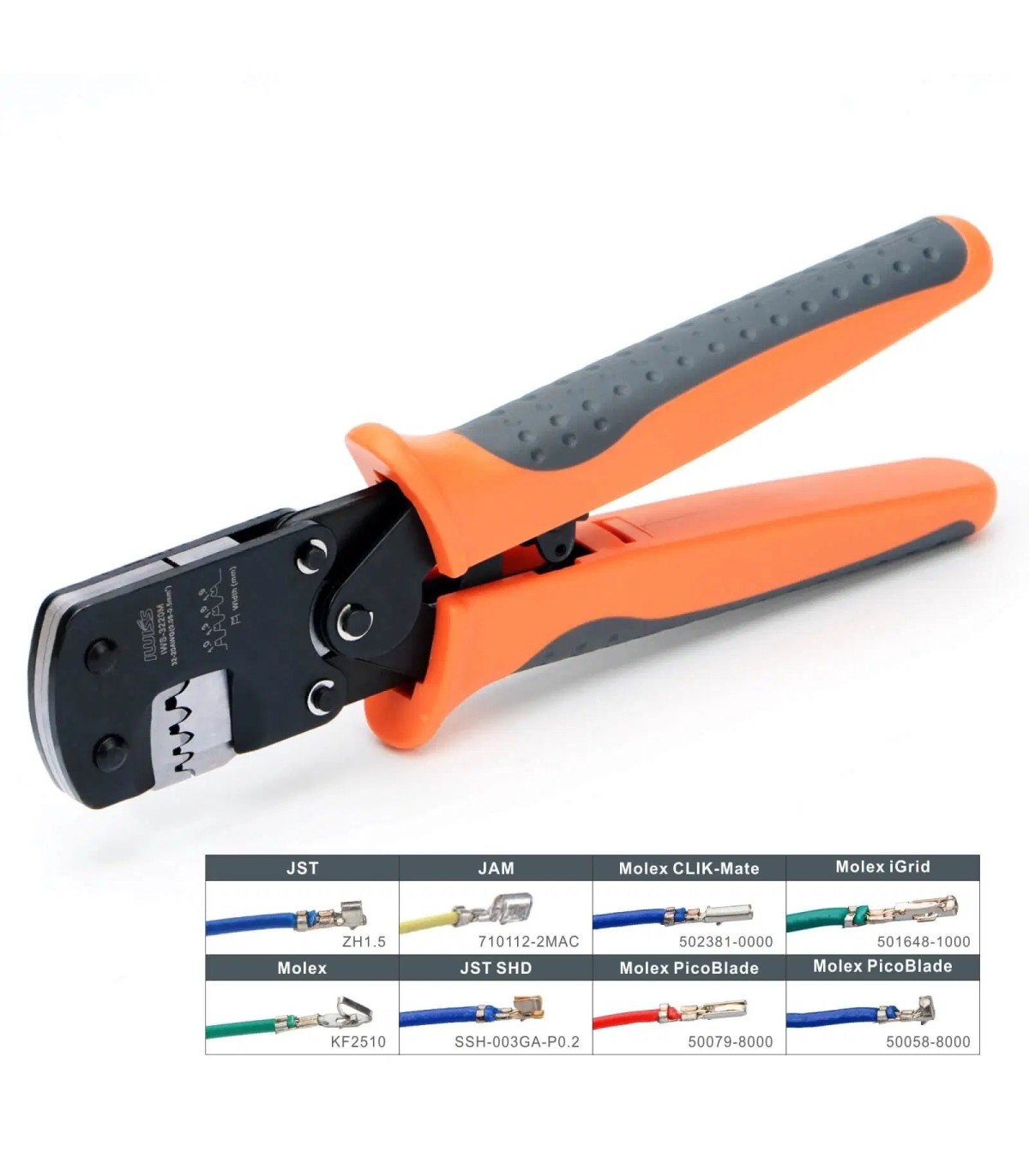

1) Crimping of pins and terminals for Molex, JST, JAE, D-Sub and other small-pitch connectors.

2) Assembly and repair of electronic wiring and PCB boards.

3) Production of signal cables, control systems, sensors and measuring equipment.

4) Automation systems, telecommunications and onboard applications for automotive or drones.

5) Applications in computing, audio, robotics and light industrial equipment.

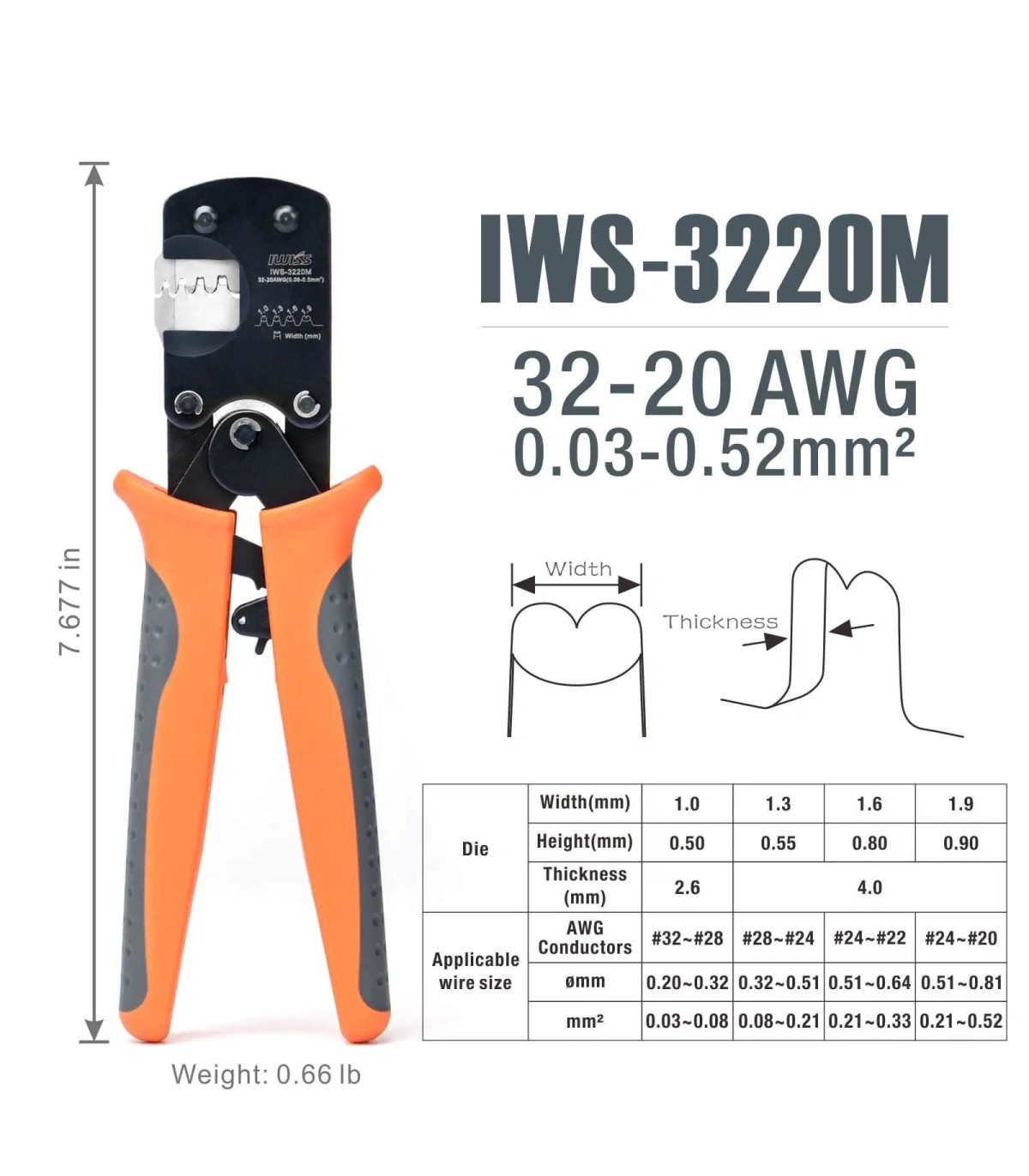

Technical Specifications

Wire range (AWG): 32 - 20 AWG

Wire range (mm²): 0.03 - 0.52 mm²

Terminal type: pin and micro terminals

Compatible connectors: D-Sub, Molex, JST, JAE

Mechanism: ratchet with integrated safety release

Material: high carbon steel

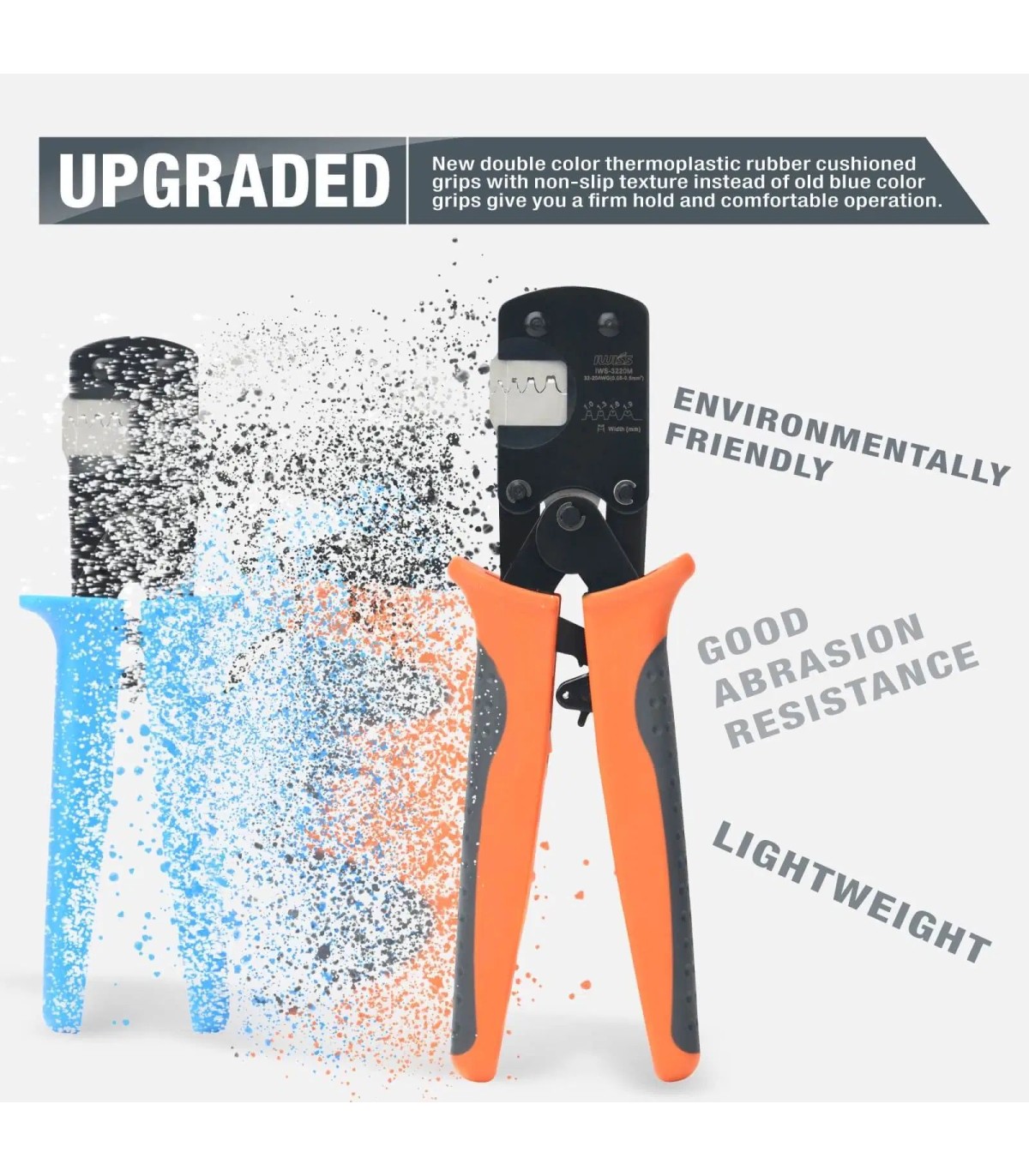

Handle: non-slip rubber

Length: 190 mm

Weight: 0.35 kg

Color: orange
