€3.83
(tax excl.)
€4.67
(tax incl.)
Errebi code: 67382Producer code: DT04-12P-E008Producer: Deutsch

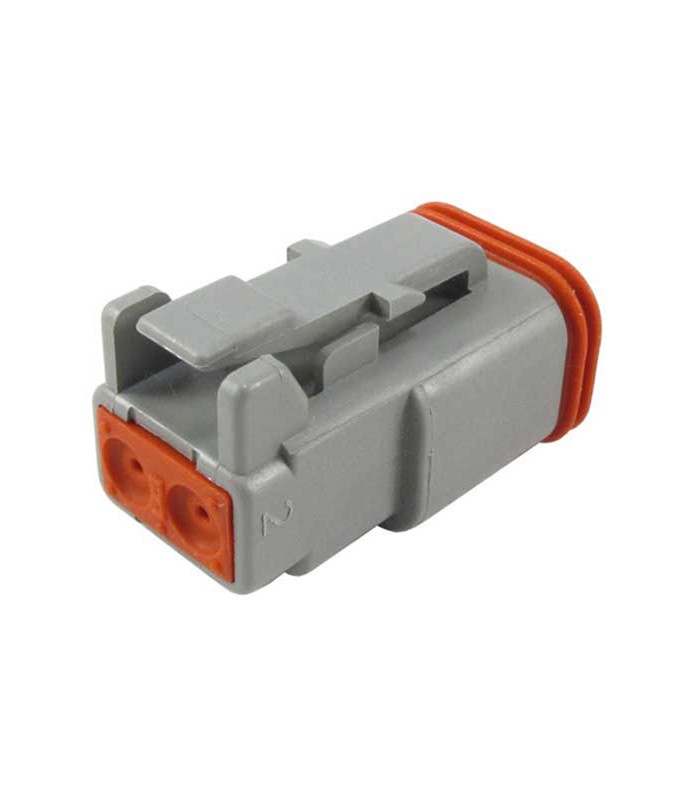

Connector DT Series Male 2 Way
Errebi code: 22678
Producer code: DT06-2S
Producer: Deutsch
Read moreShow lessProducer code: DT06-2S
Producer: Deutsch
€0.87
(tax excl.)
€1.06
(tax incl.)
Condition
New
Reference:
RBCTDTPF2V
Brand:
Add to wishlist
Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
Read moreShow less
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
RBCTDTPF2V
Data sheet
- Product type
- Connector body
- Serie
- DT
- Amperage
- 13A
- Material
- PA (Polyamide, Nylon)
- Color
- Grey
- IP rating
- IP68
- Operating temperature
- -55°C to +125°C
- Dimensions
- 28,40x15,01x15,77 (L x W x H)
- Voltage
- 250V
- Mounting
- On connector
- Kind
- Male
- Number of poles
- 2
- Number of rows
- 1
- Pitch
- 5.46 mm
- Orientation
- 180°
- Minimum order quantity
- 1
- Unit Type
- piece
