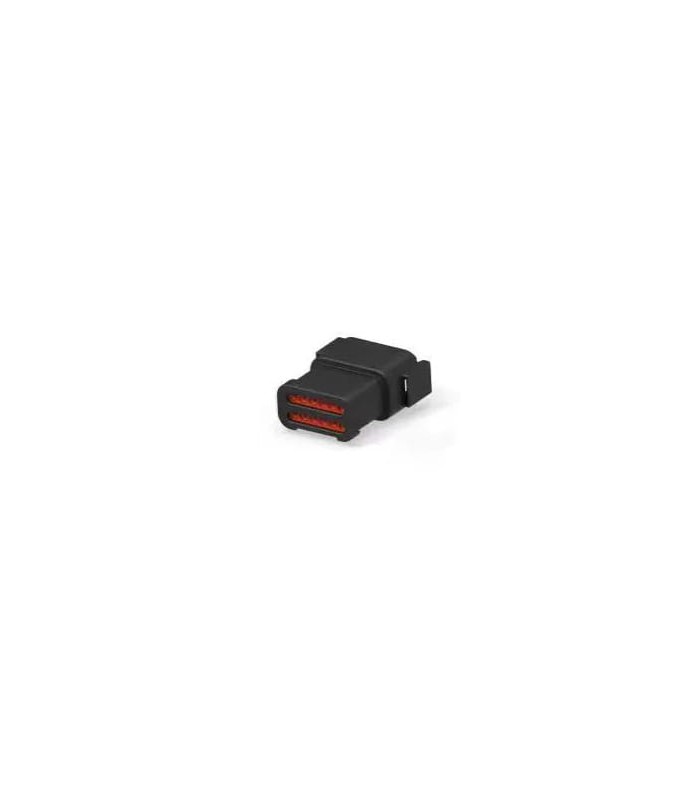

Connector DTM Series Female 12 Way black E003
Connector DTM Series Female 12 Way black E003
Connector DTM Series Female 12 Way black E003
Connector DTM Series Female 12 Way black E003

Connector DTM Series Female 12 Way black E003

Terminal DT size 16 female 16-20 awg
Errebi code: 66367
Producer code: DTM04-12PB-E003
Producer: Deutsch
Read moreShow less
€4.94 (tax excl.)
€6.03 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €5.73 €3.01
25 €5.42 €15.07
50 €4.52 €75.34
100 €3.62 €241.07
250 €3.31 €678.02
500 €3.01 €1,506.70
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTMPM12VNRE003
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 12 positions
Pitch: 4.19mm
Gender: female
Black colour
Series: DTM
Rated current: 7.5A
Dimensions: 20.22mm x 40.01mm x 43.69mm
Housing Material: Nylon
Ingress Protection: IP68, IP6K9K
Material: plastic
Maximum operating temperature: +125 C
Minimum operating temperature: - 55 C
Mounting Angle: Straight
Number of lines: 2 lines
Type: 12 way
Rated voltage: 250V
Wire gauge: 16AWG to 20AWG
Unit weight: 16,200 g
Read moreShow less
Product Details
RBCTDTMPM12VNRE003

Data sheet

Product type
Connector body
Serie
DTM
Amperage
7,5A
Material
Plastic
Color
Black
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
43.69x20.22x31.62 (L x W x H)
Voltage
250V
Mounting
On cable
Kind
Female
Number of poles
12
Number of rows
2
Pitch
4.19 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
