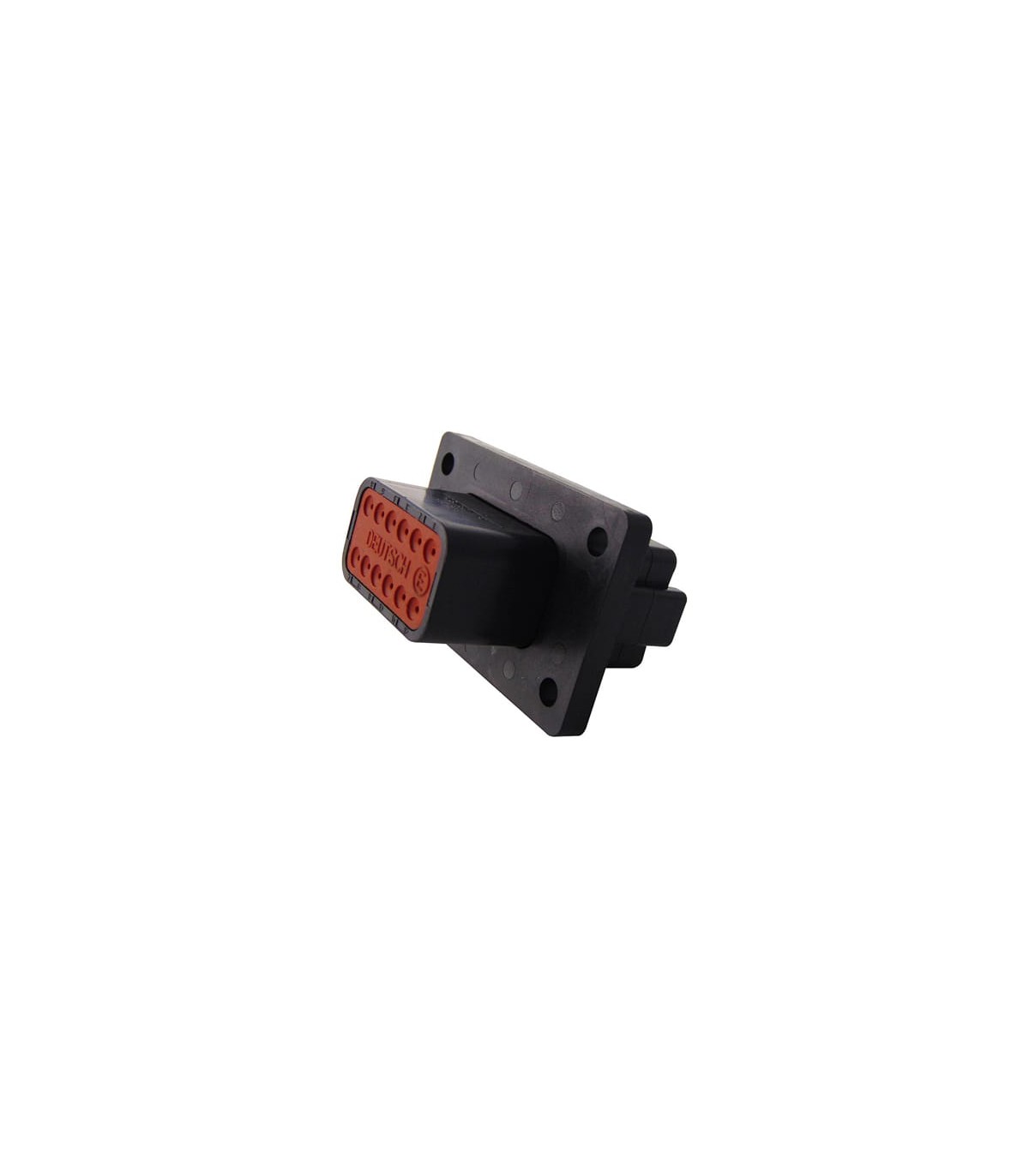

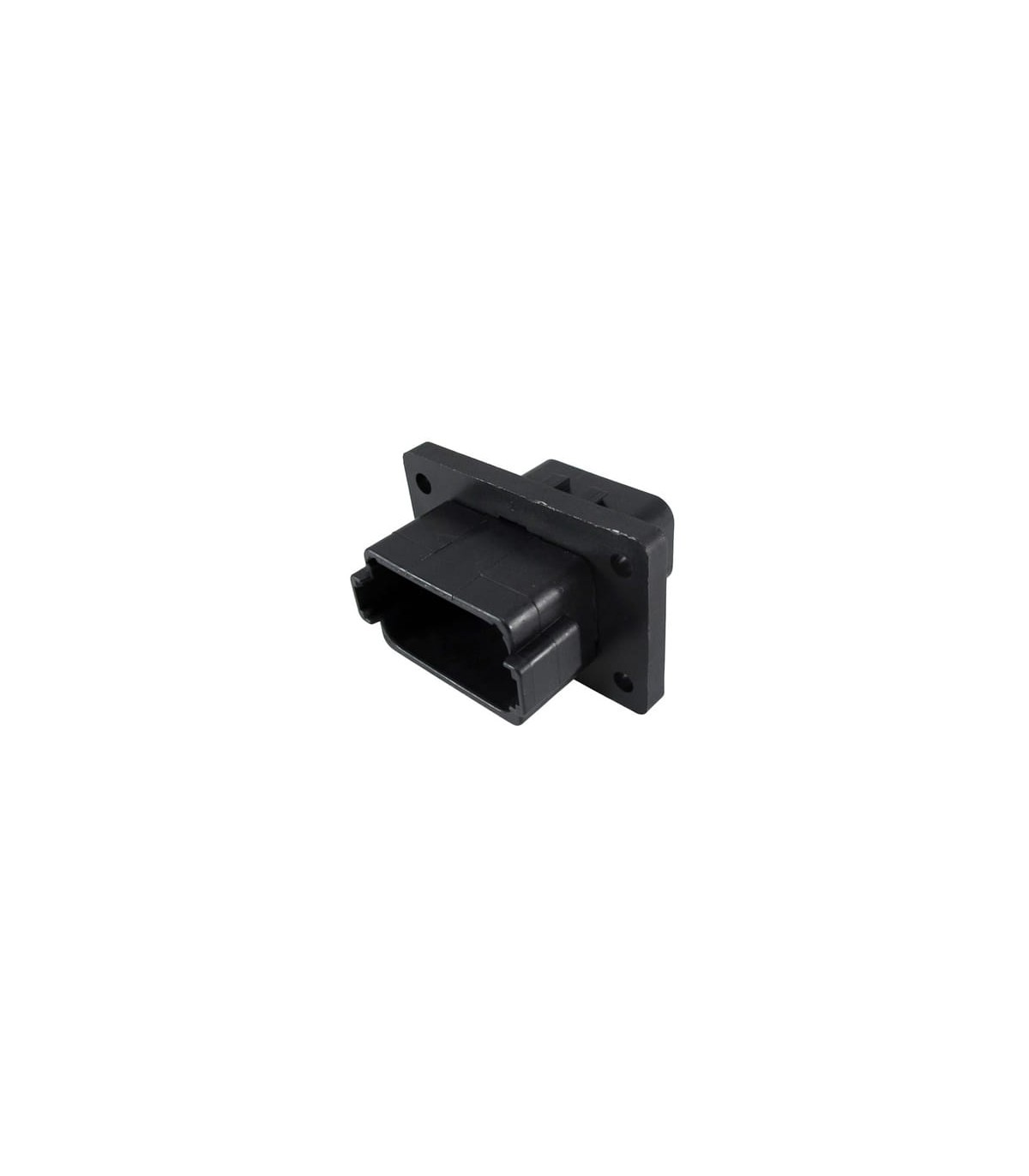

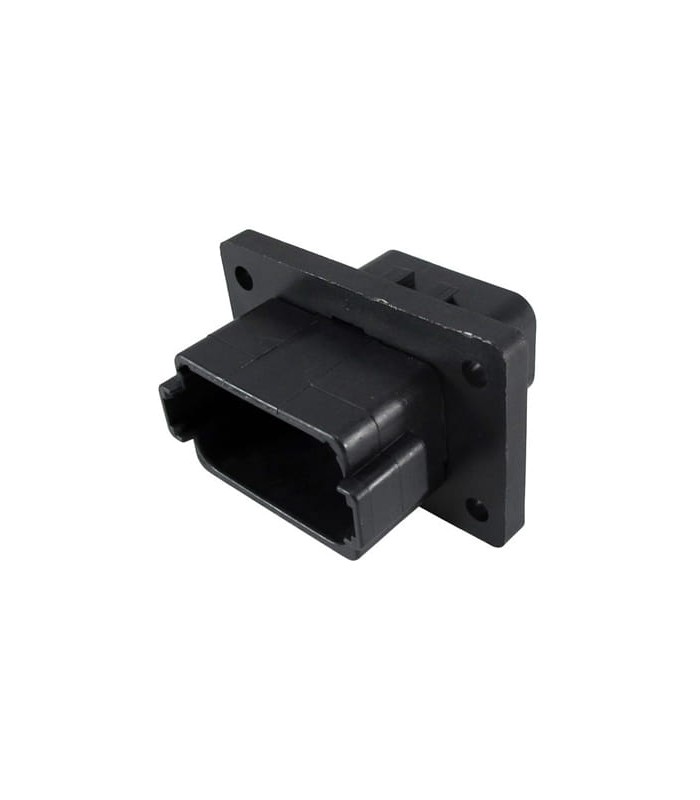

Connector DT Series Female 12 Way from panel CL06 black
Connector DT Series Female 12 Way from panel CL06 black
Connector DT Series Female 12 Way from panel CL06 black
Connector DT Series Female 12 Way from panel CL06 black

Connector DT Series Female 12 Way from panel CL06 black

JPT Connector Female 25 way blue
Errebi code: 66119
Producer code: DT04-12PA-C06
Producer: Deutsch
Read moreShow less
€6.10 (tax excl.)
€7.44 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €7.07 €3.72
25 €6.70 €18.61
50 €5.58 €93.03
100 €4.47 €297.68
250 €4.09 €837.23
500 €3.72 €1,860.50
Available in stock 84 Items
Condition
New
Reference:
RBCTDTPM12VPCL06NR
Brand:
Deutsch
Add to wishlist
Description

The 12-way female connector of the DT series is designed for electrical applications in industrial and automotive environments that require high resistance, waterproof sealing, and long-term reliability.


Function


Each terminal is securely inserted inside the high-performance thermoplastic body, while a silicone seal ensures tightness once mated with the corresponding male connector (DT06-12SA).
The snap-lock system guarantees a secure connection between the two parts, preventing accidental disconnections caused by vibrations or mechanical shocks.


The CL06 model is an ideal version for installation on panels or fixed structures, where it is necessary to secure the connector in a stable and accessible position for maintenance.


Main advantages


  • 1) Waterproof sealing: protection rating IP68, completely resistant to dust, water, and contaminants.

  • 2) Durable materials: reinforced thermoplastic body, resistant to shocks, vibrations, and chemical agents.

  • 3) Versatility: suitable for signal and power systems, up to 13 A per contact.

  • 4) Easy installation: terminals can be crimped and inserted easily without special tools.

    • Typical applications


  • 1) Industrial, agricultural, and heavy-duty vehicles: connections for sensors, actuators, control units, lights, and onboard systems.

  • 2) Construction machinery and heavy equipment: wiring exposed to dust, mud, and continuous vibrations.

  • 3) Marine and off-road environments: systems exposed to water splashes or corrosive substances.

  • 4) Industrial automation: connections in machinery, robots, and control devices.

    • Technical specifications


  • Series: DT - CL06

  • Number of rows: 2

  • Number of poles: 12 pins

  • Cable section: 20 - 14 AWG

  • Gender: panel-mount female

  • Contact pitch: 4.5 mm

  • Nominal voltage: 250 V

  • Current rating: 13 A

  • Material: thermoplastic

  • Color: black

  • Protection rating: IP68

  • Operating temperature: -55 / +125 °C

  • Mounting: on panel

    • Read moreShow less
    Product Details
    RBCTDTPM12VPCL06NR

    Data sheet

    Product type
    Connector body
    Serie
    DT
    Amperage
    13A
    Material
    PA (Polyamide, Nylon)
    Color
    Black
    Operating temperature
    -55°C to +125°C
    Voltage
    250V
    Mounting
    On panel
    Kind
    Female
    Number of poles
    12
    Number of rows
    2
    Pitch
    9.12 mm
    Orientation
    180°
    Minimum order quantity
    1
    Unit Type
    piece
    Attachments
    066119_001_DATASHEET.pdf
    Download (508.96KB)
