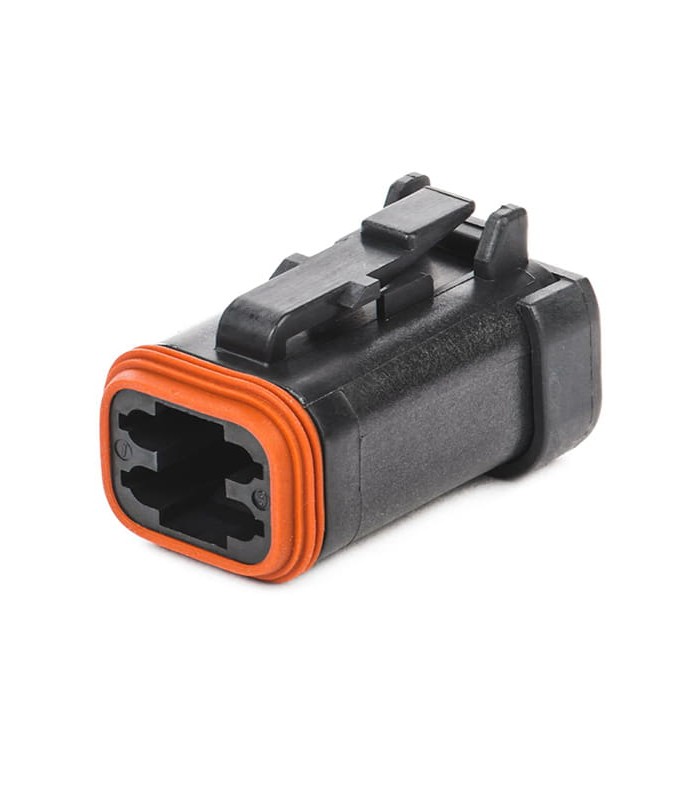

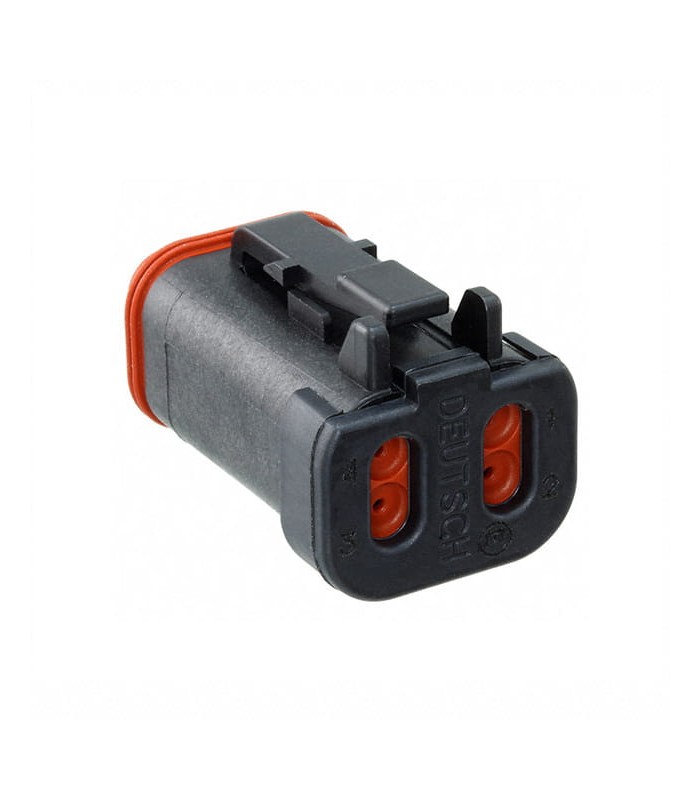

Connector DT Series male 4 Way CE05
Connector DT Series male 4 Way CE05
Connector DT Series male 4 Way CE05
Connector DT Series male 4 Way CE05

Connector DT Series male 4 Way CE05

JPT Connector Female 25 way blue
Errebi code: 66324
Producer code: DT06-4S-CE05
Producer: Deutsch
Read moreShow less
€2.54 (tax excl.)
€3.10 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.79 €3.10
25 €2.48 €15.49
50 €2.32 €38.74
100 €2.01 €108.46
250 €1.70 €348.62
500 €1.55 €774.70
1000 €1.39 €1,704.34
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTDTPF4VCE05
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 4 positions
Pitch: 4.45mm
Gender: Male
Black colour
Rated current: 13A
Dimensions: 20.83mm x 19.58mm x 32.46mm
Ingress Protection: IP68, IP6K9K
Insulation: insulated
Material: plastic
Maximum operating temperature: +125 C
Minimum operating temperature: - 55 C
Mounting Angle: Straight
Number of lines: 2 lines
Line spacing: 9.12 mm
Type: 4-way
Rated voltage: 250V
Wire gauge: 14AWG to 20AWG
Unit Weight: 7g
Read moreShow less
Product Details
RBCTDTPF4VCE05

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
Plastic
Color
Black
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
20,83x19,58x32,46 (L x W x H)
Voltage
250V
Mounting
On cable
Kind
Male
Number of poles
4
Number of rows
2
Pitch
4.45 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
Attachments
066324_001_DATASHEET.pdf
Download (863.61KB)
