Errebi code: 67382Produzent code: DT04-12P-E008Produzent: Deutsch

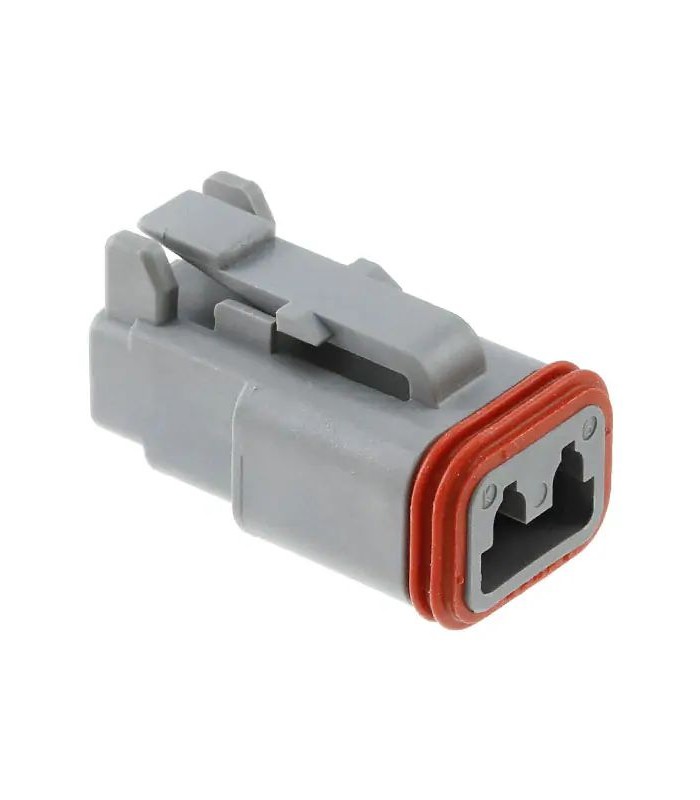

Steckverbinder DT Series Männlich 2 Wege
Errebi code: 22678
Produzent code: DT06-2S
Produzent: Deutsch
Read moreShow lessProduzent code: DT06-2S
Produzent: Deutsch
0,87 €
(tax excl.)
1,06 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTDTPF2V
Marke:
Zur Wunschliste hinzufügen
Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
Read moreShow less
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
RBCTDTPF2V
Technische Daten
- Produktart
- Steckverbinderkörper
- Serie
- DT
- Stromstärke
- 13A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Grau
- Schutzklasse (IP)
- IP68
- Betriebstemperatur
- -55°C bis +125°C
- Aussenmass
- 28,40x15,01x15,77 (L x W x H)
- Spannung
- 250V
- Montage
- Auf stecker
- Art
- Männlich
- Anzahl der Pole
- 2
- Anzahl der reihen
- 1
- Raster
- 5.46 mm
- Ausrichtung
- 180°
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
