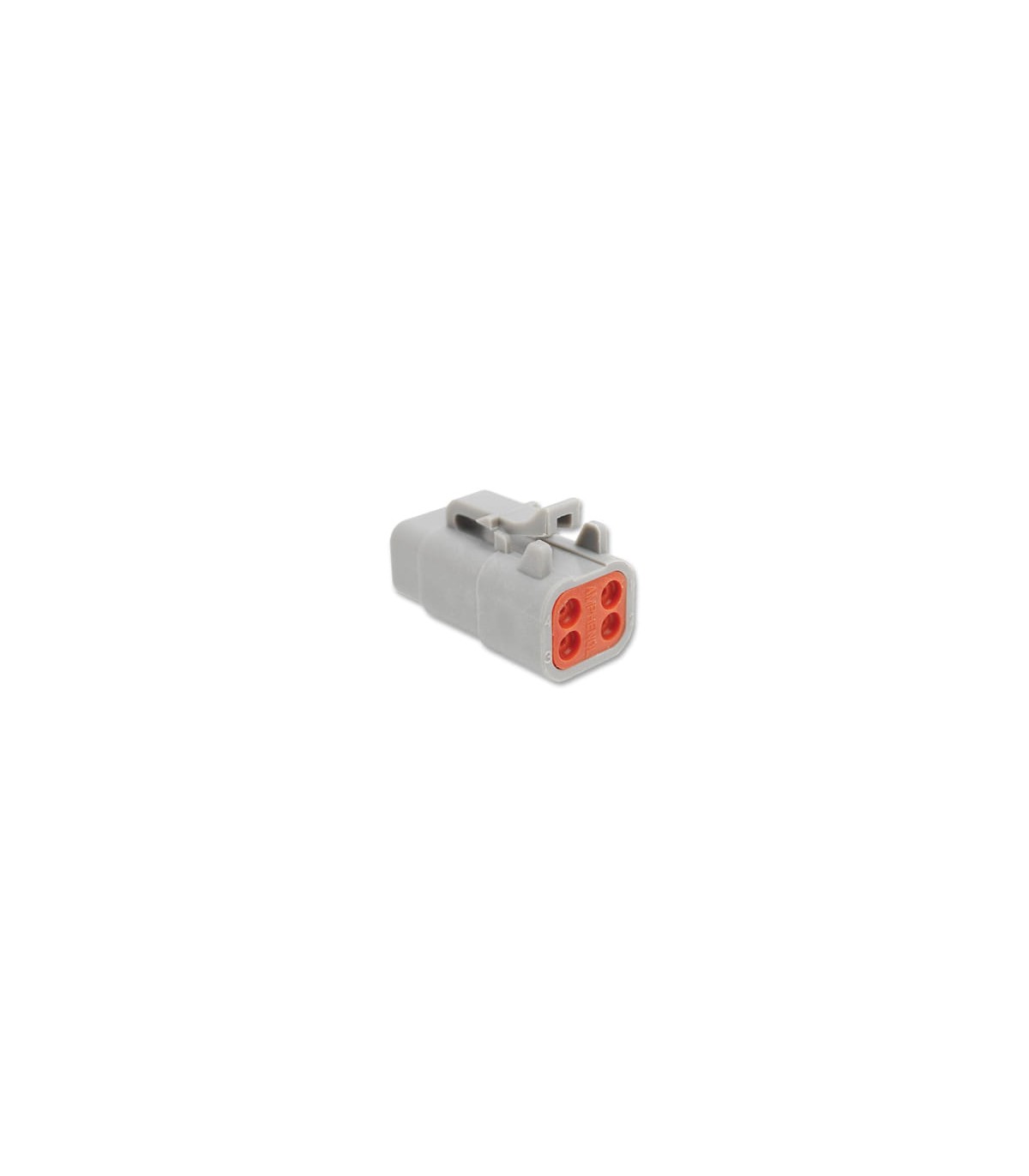

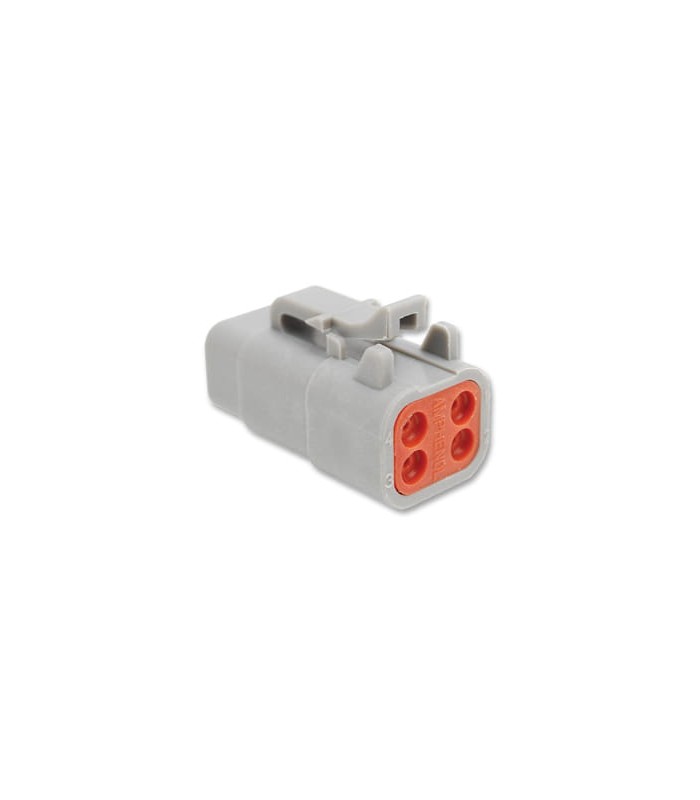

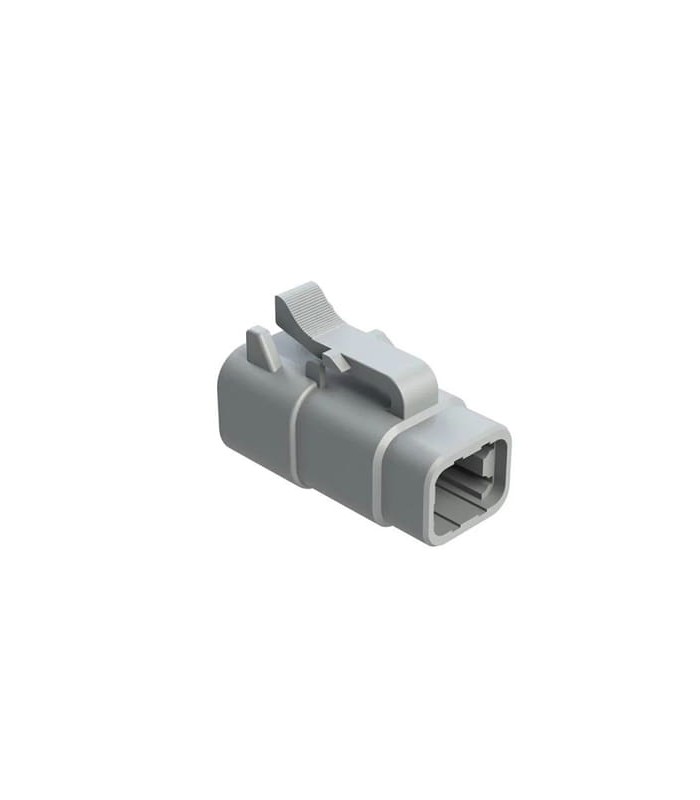

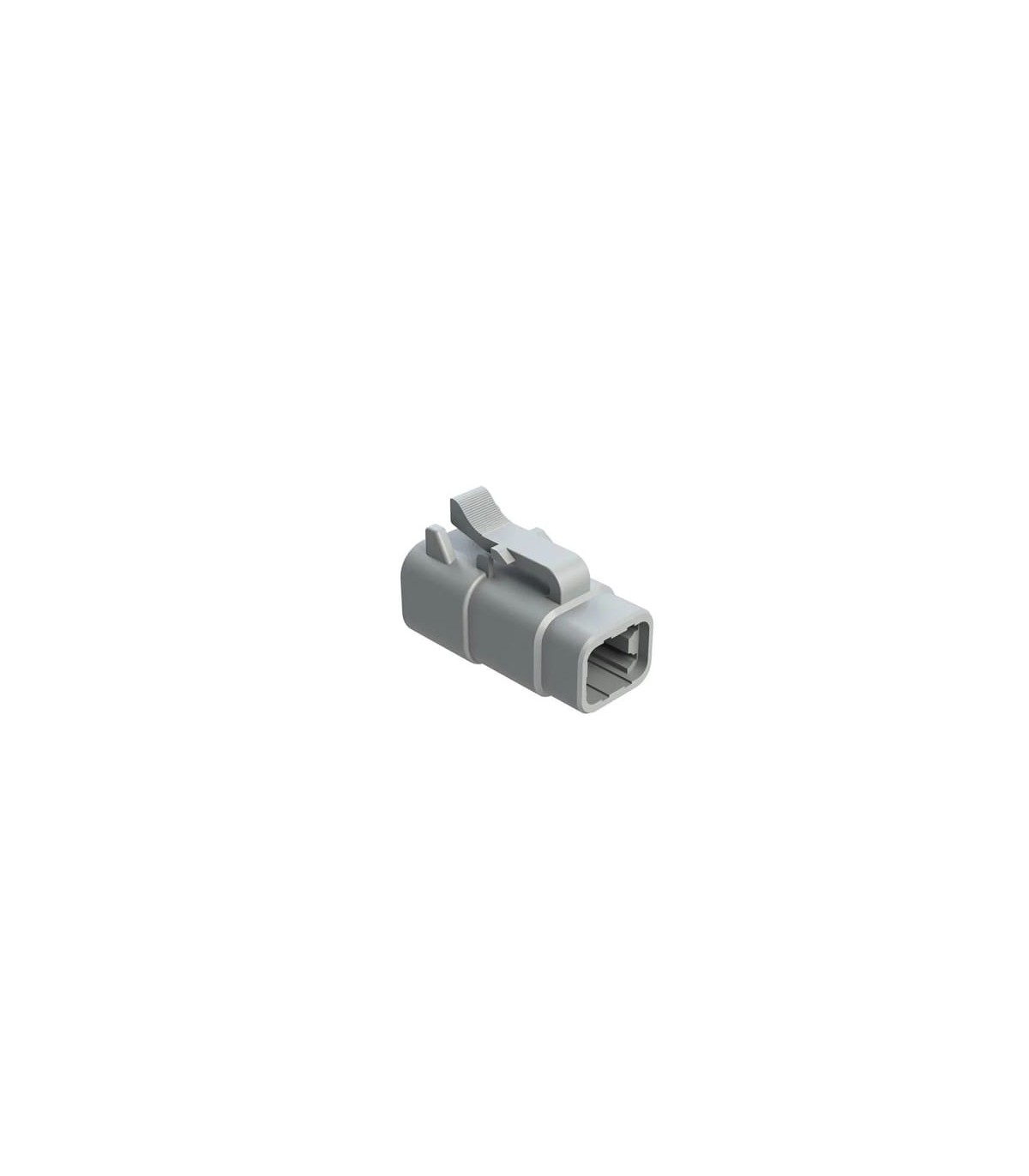

Connector ATM Series Male 4 Way
Connector ATM Series Male 4 Way
Connector ATM Series Male 4 Way
Connector ATM Series Male 4 Way

Connector ATM Series Male 4 Way

Terminal DT size 16 female 16-20 awg
Errebi code: 60662
Producer code: ATM06-4S
Producer: Amphenol
Read moreShow less
€2.40 (tax excl.)
€2.93 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.64 €2.93
25 €2.34 €14.64
50 €2.20 €36.60
100 €1.90 €102.48
250 €1.61 €329.40
500 €1.46 €732.00
1000 €1.32 €1,610.40
Available in stock 61 Items
Condition
New
Reference:
RBCTDTMPF4VA
Brand:
Amphenol
Add to wishlist
Description

The ATM06-4S connector is a version from the DT AMPHENOL series, designed to ensure reliable electrical connections in applications that require compactness, robustness, and ease of use.
It is ideal for use in automotive, industrial, and electrical systems where space is limited but conditions can be demanding.



The connector structure is designed to provide a certain mechanical tolerance, absorb vibrations, and reduce contact wear over time.



Main advantages


  • 1) Compactness and density: with 4 poles in a small footprint, it can be integrated even in tight spaces.

  • 2) Connection safety: the locking system prevents the connector from accidentally disconnecting.

  • 3) Electrical reliability: the crimping of terminals and constant contact pressure ensure low losses and stability.

  • 4) Versatility: suitable for signal and low/medium power supply applications, as well as small electronic and mechanical systems.


    • Typical applications


    It can be used in:


  • 1) Power and signal circuits: in electrical and electronic modules.

  • 2) Light automotive systems: sensors, secondary systems, auxiliary lights.

  • 3) Compact household appliances and machinery.

  • 4) Hobby and small-scale automation.


    • Technical specifications


  • Series: ATM

  • Number of positions: 4 positions

  • Mounting style: Cable mount

  • Color: Grey

  • Rated current: 7.5 A

  • Gender: Male

  • Housing material: Thermoplastic (TP)

  • Protection rating: IP67

  • Maximum operating temperature: +125 °C

  • Minimum operating temperature: -55 °C

  • Mounting angle: Straight

  • Number of rows: 2 rows

  • Weight: 5 g

    • Read moreShow less
    Product Details
    RBCTDTMPF4VA

    Data sheet

    Product type
    Connector body
    Serie
    ATM
    Amperage
    7,5A
    Material
    Thermoplastic
    Color
    Grey
    IP rating
    IP67
    Operating temperature
    -55°C to +125°C
    Mounting
    On cable
    Wire range
    22 - 16 AWG
    Kind
    Male
    Number of poles
    4
    Number of rows
    2
    Orientation
    180°
    Minimum order quantity
    1
    Unit Type
    piece
    Attachments
    060662_001_DATASHEET.pdf
    Download (182.34KB)
