3,83 €
(tax excl.)
4,67 €
(impuestos inc.)
Código ErreBi: 67382Código productor: DT04-12P-E008Productor: Deutsch

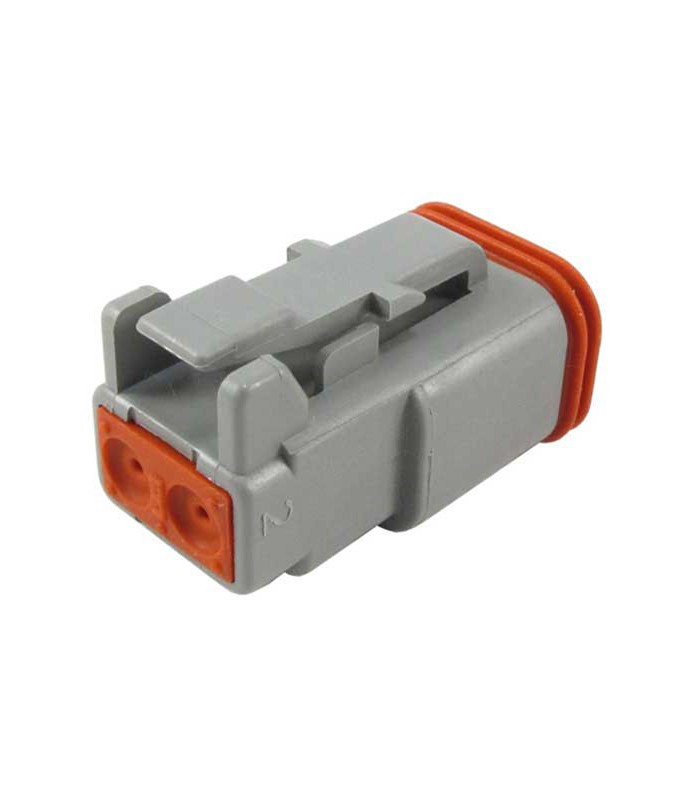

Conector Series DT Macho 2 Vìas
Código ErreBi: 22678
Código productor: DT06-2S
Productor: Deutsch
Lee masShow lessCódigo productor: DT06-2S
Productor: Deutsch
0,87 €
(tax excl.)
1,06 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCTDTPF2V
Marca:
A lista de deseos
Product Type Features
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
Lee masShow less
Connector Style: Housing for female terminals
Connector System: Wire-to-Wire
Sealable: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector & Contact Terminates To: Wire & Cable
Strain Relief: Add By Accessory
Configuration Features
Number of Positions: 2
Electrical Characteristics
Operating Voltage(VDC): 250
Body Features
Color: Gray
Cable Exit Angle: 180°
Body Material: PA GF
Contact Features
Mating Pin Diameter: 1.5 mm [ .059 in ]
Mechanical Attachment
Mounting Feature: No
Terminal Position Assurance: No
Polarized: Yes
Housing Features
Centerline (Pitch): 5.46 mm [ .215 in ]
Dimensions
Width: 15.01 mm [ .591 in ]
Height: 15.95 mm [ .628 in ]
Length: 28.4 mm [ 1.118 in ]
Usage Conditions
Operating Temperature Range: -55 – 125°C [ -67 – 257°F ]
Industry Standards
Degree of Protection: IP68
Other
Connector Position Assurance Capable: No
Serviceable: Yes
RBCTDTPF2V
Ficha técnica
- Tipo de producto
- Cuerpo del conector
- Serie
- DT
- Amperaje
- 13A
- Material
- PA (Poliamida, Nylon)
- Color
- Gris
- Protección IP
- IP68
- Temperatura de funcionamiento
- -55°C a +125°C
- Dimensión
- 28,40x15,01x15,77 (L x W x H)
- Voltaje
- 250V
- Montaje
- En conector
- Clase
- Macho
- Número de polos
- 2
- Número de Filas
- 1
- Paso
- 5.46 mm
- Orientación
- 180°
- Minima pedido
- 1
- Tipo de unidad
- pieza
