Double crimping machine 0.2-2.5 mm² with tube insertion

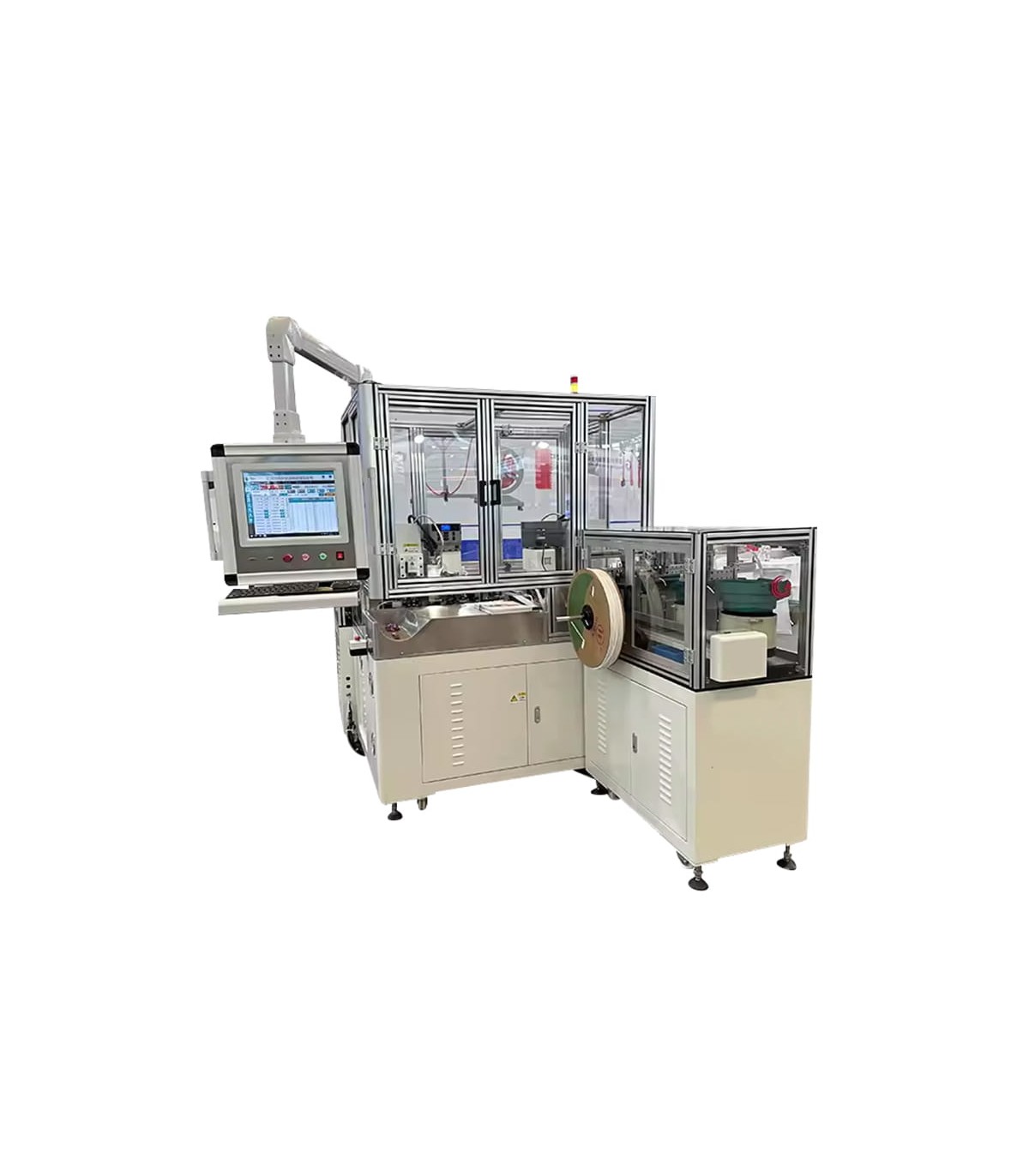

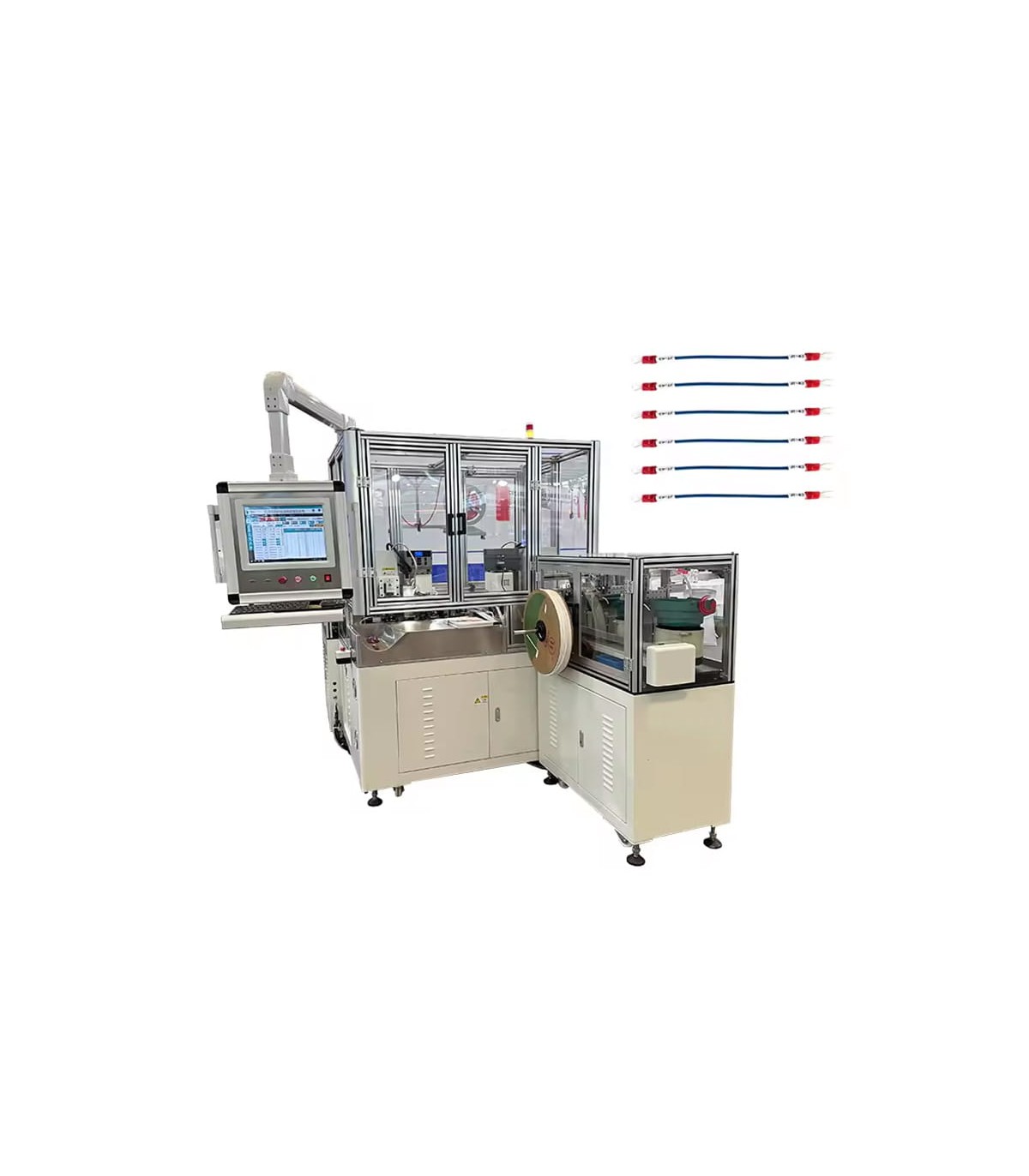

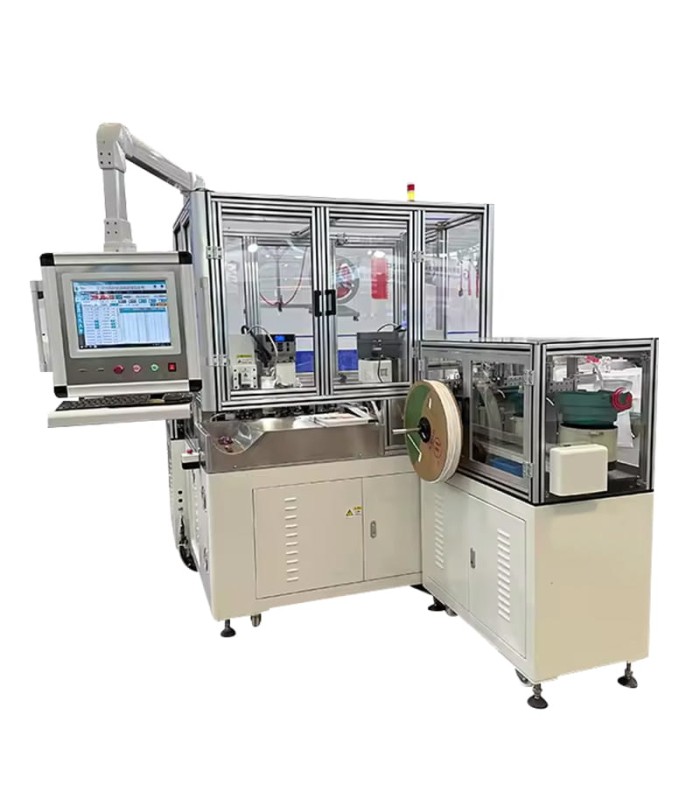

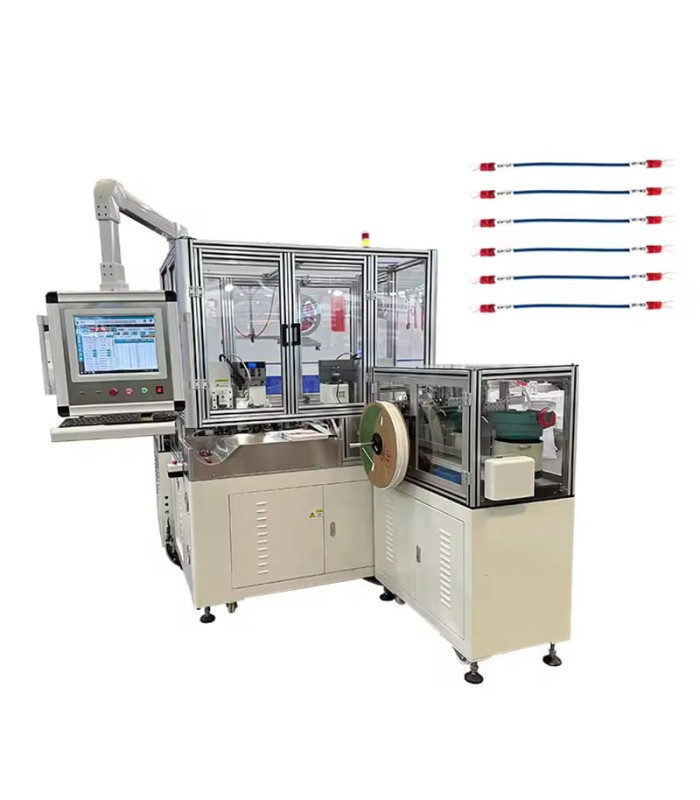

The RBEW8280 is an automatic machine designed for complete cable processing, integrating cutting, stripping, terminal crimping and numbered tube insertion functions into a single operating cycle.
It is particularly suitable for companies producing electrical wiring, electrical panels, automotive wiring and industrial processing where high productivity, precision and process repeatability are required.
Thanks to its automated structure, the machine significantly reduces processing times compared to manual or semi-automatic processes, while improving the quality of the finished product and reducing the risk of operating errors.
The RBEW8280 can perform several operations in sequence, including single-end stripping, double-end stripping, cable cutting, single-end crimping, double-end crimping, double-end tube insertion, single-end tube insertion and marking.
The system is suitable for processing PVC and Teflon cables, with cable sizes from AWG 26 to AWG 14, approximately corresponding to 0.2 - 2.5 mm². The machine can also be customized according to production requirements.
The LCD display in Chinese/English allows easy management of working parameters, including cutting length, stripping length, operating mode and settings related to the numbered tube.
The roller feeding system ensures smooth cable feeding, helping maintain precision and stability throughout the entire production cycle.
The presence of detection devices, such as cable presence detection, optical fiber detection and low air pressure detection, increases process safety and helps reduce scrap and non-compliant processing.
The modular structure of the machine facilitates maintenance operations and makes access to the main processing units easier, such as cable feeding, blade unit, crimping system and tube insertion device.

WORKING PRINCIPLE

- The cable is automatically fed through the roller feeding system
- The machine cuts the cable to the set length
- The front and rear ends of the cable are stripped
- The system performs terminal crimping on one or both ends according to the selected configuration
- The dedicated device can insert the numbered tube or sleeve according to the required processing cycle
- The detection systems check cable presence and the main operating conditions
- The processed cable is discharged ready for the next assembly or packaging stages

MAIN ADVANTAGES

- Automatic cutting, stripping, crimping and tube insertion process
- Possibility of processing one or both cable ends
- Reduced production times compared to manual processing
- Greater precision and repeatability of the production cycle
- Compatible with ferrule terminals, O/Y terminals and loose terminals
- Suitable for PVC and Teflon cables
- Roller cable feeding system for stable advancement
- Chinese/English LCD display for parameter management
- Detection devices to improve safety and quality
- Customization available for waterproof plug and numbered tube device
- Easier maintenance thanks to the modular structure
- Ideal for continuous industrial production

MAIN APPLICATIONS

- Electrical wiring production
- Automotive wiring
- Professional wiring harnesses
- Electrical panels and industrial automation
- Wiring for electronic equipment
- Processing with ferrule terminals
- Processing with O and Y terminals
- Numbered tube insertion for cable identification
- High-repeatability industrial production

TECHNICAL FEATURES

Model: RBEW8280
Power: 220V / 800W
Functions: single-end stripping, double-end stripping, cutting, single-end crimping, double-end crimping, double-end tube insertion, single-end sleeving, single-end tube insertion and marking
Compatible terminals: ferrule terminals, O/Y terminals and loose terminals
Production: 1200 - 1500 pcs/hour on 200 mm cable
Machine dimensions: L1300 × W1050 × H1550 mm
Weight: 580 kg
Display: Chinese/English LCD
Applicable cables: PVC, Teflon
Cable size: AWG 26 - AWG 14, approx. 0.2 - 2.5 mm², customizable
Cable cutting length: 90 mm - 999999 mm
Minimum remaining length: 70 mm
Minimum tube length: 15 mm
Cutting precision: tolerance 1 mm + less than 0.2% of the cutting length
Stripping length: front end 1.5 - 15 mm, rear end 1.5 - 15 mm
Press capacity: 2000 kg
Detection devices: cable presence detection, optical fiber detection, low air pressure detection
Required air pressure: 0.5 - 0.65 MPa with clean, dry air
Waterproof plug: customizable
Numbered tube device: customizable, cutting length 12 - 30 mm
Operating mode: single step, single cycle, automatic
Working conditions: 0 - 50 °C
Cable feeding mode: roller feeding
Pressure monitoring: optional
CCT visual inspection: optional
