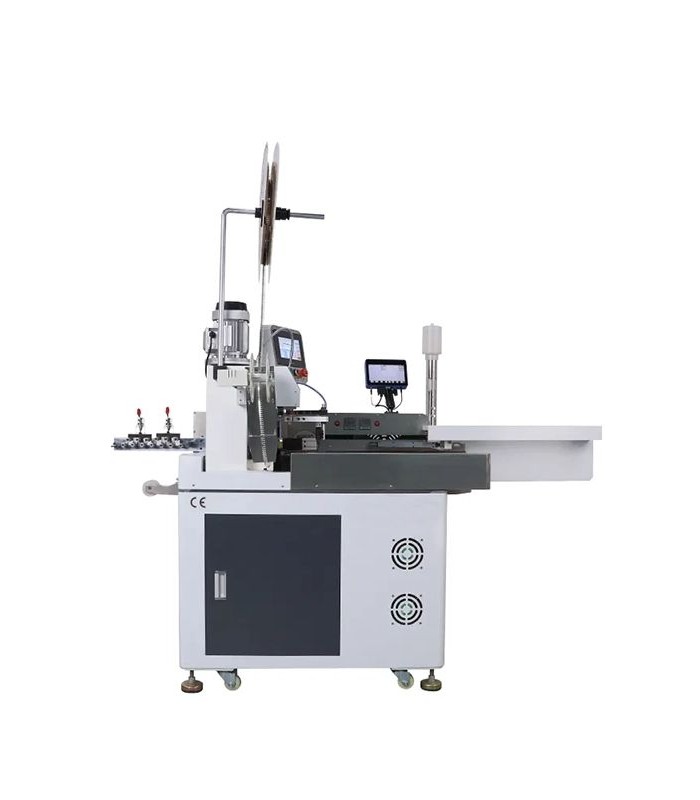

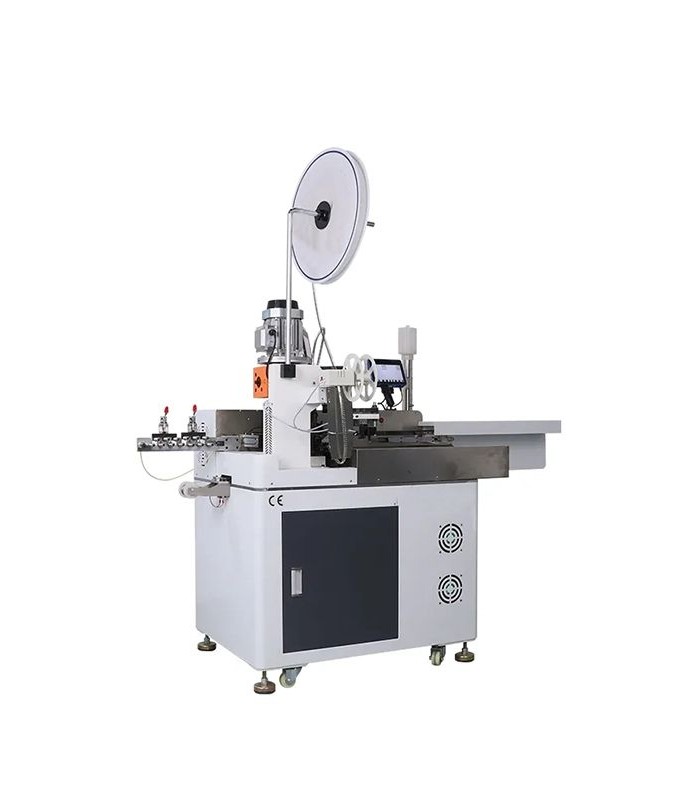

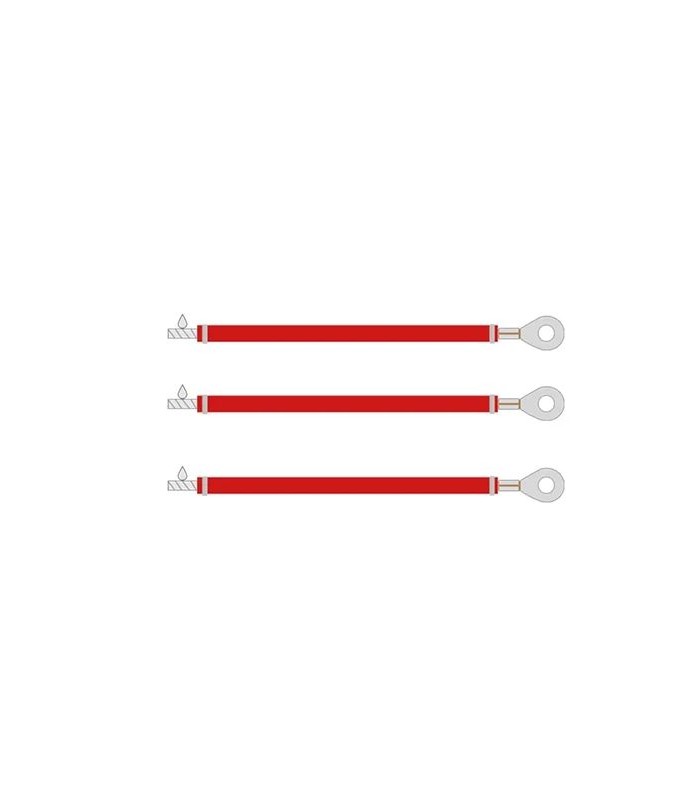

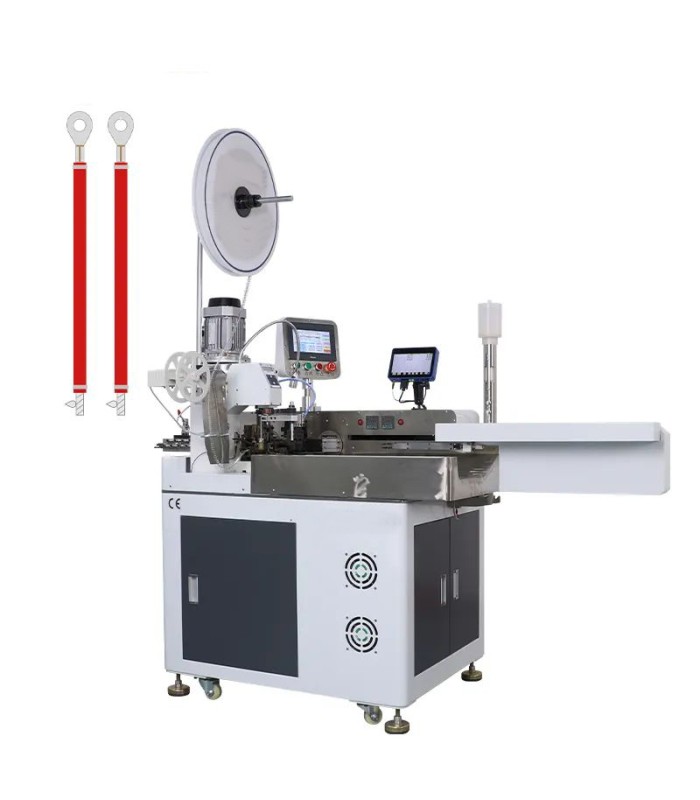

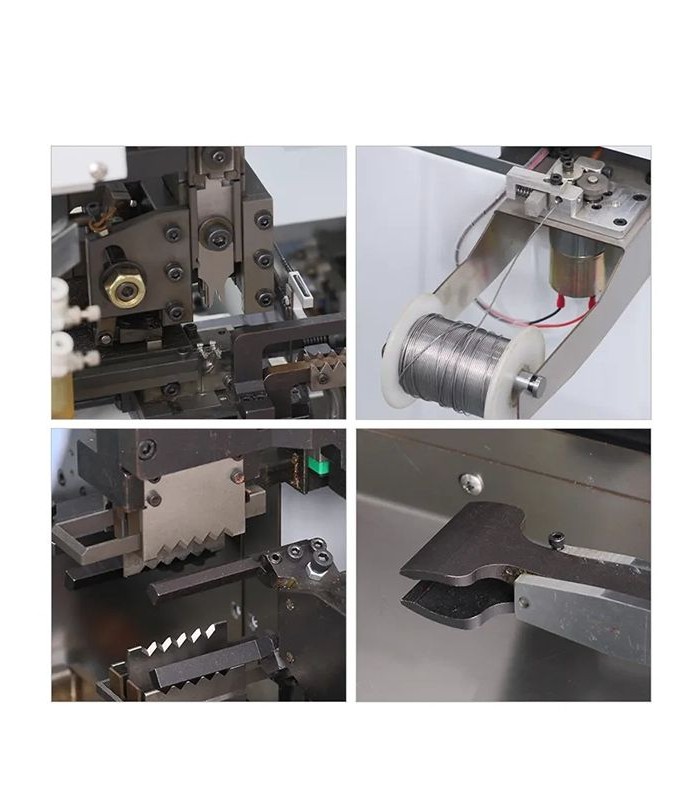

Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side
Machine cuts, strips and crimps on one side and strips and seals on the other side

Machine cuts, strips and crimps on one side and strips and seals on the other side

Electric machine for crimping bare cable lugs 1 - 150 mm² with servomotor
Errebi code: 67527
Producer code: RBEW8230
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
SOLD WITH PROTECTIVE COVER
Read moreShow less
€19,000.00 (tax excl.)
€23,180.00 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW8230
Brand:
ErreBi Group
Add to wishlist
Description
Technical data

Model: RBEW8230
Cutting length: 80 - 20000 mm
Cutting accuracy: +/- 1.0 mm
Stripping length: 0.1 - 15.5 mm
Cable section: 0.22 - 6.5 mmq
Feeding speed: 10 m/s
Crimping force: 25/40 KN (2.5/4T)
Dimension: 3500*1200*1700 mm
Noise: <75 dB
Voltage: 220 50/60 HZ
Power: 3.5 kW
Air pressure air: 0.5 - 0.8 Mpa
Weight: 1100 Kg
Read moreShow less
Product Details
RBEW8230

Data sheet

Product type
Cable stripping machine
Wattage
3.5 kW
Voltage/Frequency
AC 220V, 50Hz
Dimensions
3500x1200x1700 (L x W x H)
Cable section mmq
0.22 mmq - 6.50 mmq
Minimum order quantity
1
Unit Type
piece
Crimping force
25-40 KN (2.5/4T)
Length of Cut
80 - 20000 mm
Blade material
tungsten steel
Viewing mode
touch screen
Air pressure
0.5 - 0.8 MPa
Unwinding and winding speed
10 m/s
Attachments
067527_001_DATASHEET.pdf
Download (59.36KB)
067527_002_CERTIFICATION.pdf
Download (3.13MB)
