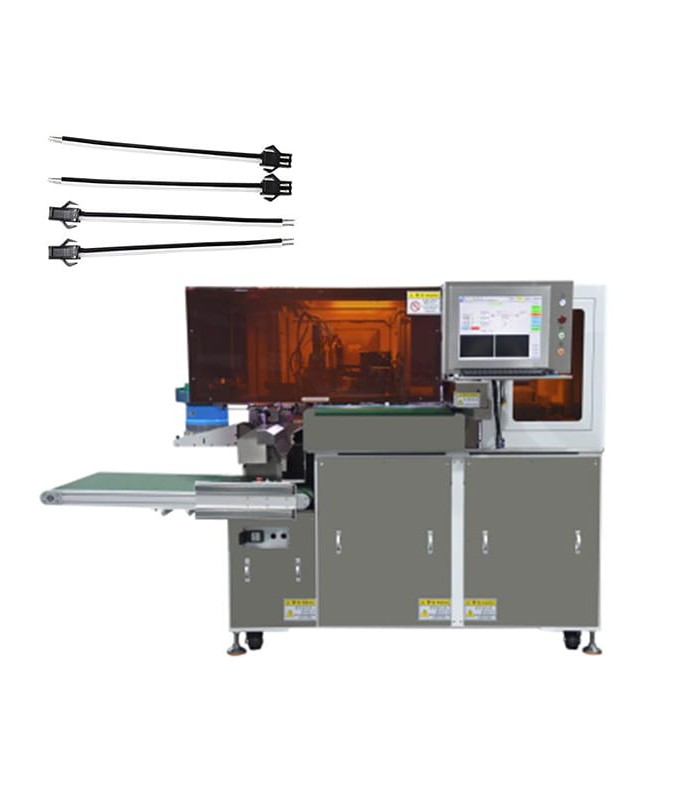

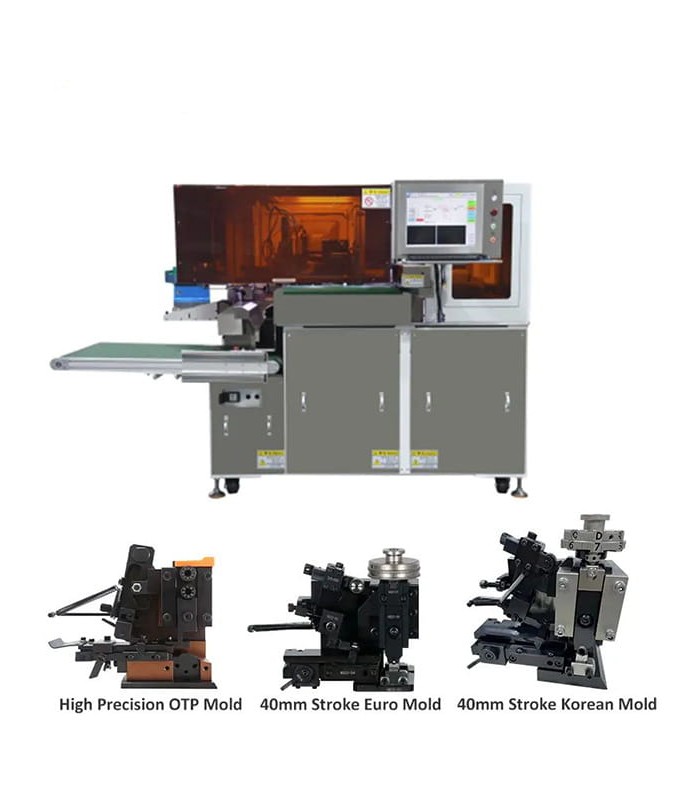

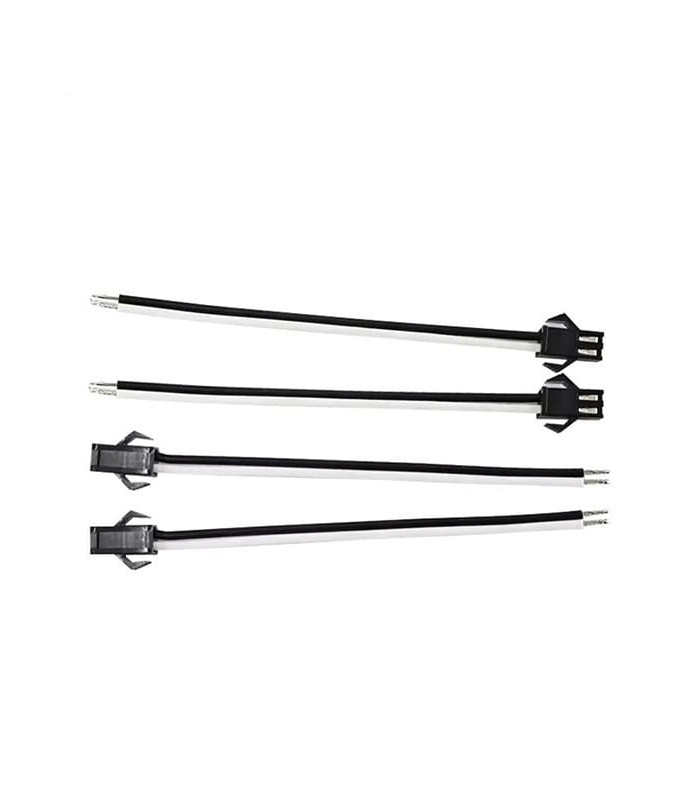

Wire Cutting, Crimping and Tinning Machine (30-18 AWG)
Wire Cutting, Crimping and Tinning Machine (30-18 AWG)
Wire Cutting, Crimping and Tinning Machine (30-18 AWG)
Wire Cutting, Crimping and Tinning Machine (30-18 AWG)
Wire Cutting, Crimping and Tinning Machine (30-18 AWG)
Wire Cutting, Crimping and Tinning Machine (30-18 AWG)

Wire Cutting, Crimping and Tinning Machine (30-18 AWG)

Electropneumatic machine for hexagonal crimping of bare cable lugs 16 - 150 mm² with support bench
Errebi code: 67535
Producer code: RBEW8295
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€46,159.00 (tax excl.)
€56,313.98 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW8295
Brand:
ErreBi Group
Add to wishlist
Description
Technical data

Model: RBEW8295
Wire section: 30 - 18 AWG
Stripping length (side I): 0.1 - 6 mm
Stripping length (side II): 0.1 - 10 mm
Tinning length: 1 - 10 mm
Cutting length: 40 - 780 mm
Capacity: 1300 pcs/h
Crimping force: 2.0 T (20 KN)
Terminal length: 30mm
Air pressure: 0.6 - 0.8 Mpa
Wire color: 2 - 8 colored wires
Power: 110-220 V/50-60 HZ
Detection device: Low air pressure, Wire exhaustion, Wire overload, Terminal exhaustion, Terminal overload, Terminal error crimping, Input error
Dimensions: 2340*1300*2120 mm
Weight: 520 Kg
Read moreShow less
Product Details
RBEW8295

Data sheet

Product type
Connector Insertion Machine
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
2340x1300x2120 (L x W x H) mm
Cable section AWG
30 - 18 AWG
Minimum order quantity
1
Unit Type
piece
Crimping force
20 KN (2T)
Stripping length Side1
0.1 - 6 mm
Stripping length Side2
0.1 - 10 mm
Length of Cut
40 - 780 mm
Viewing mode
touch screen
Air pressure
0.6 - 0.8 MPa
Productivity
1300 pz/h
Attachments
067535_001_DATASHEET.pdf
Download (694.05KB)
067535_002_CERTIFICATION.pdf
Download (3.13MB)
