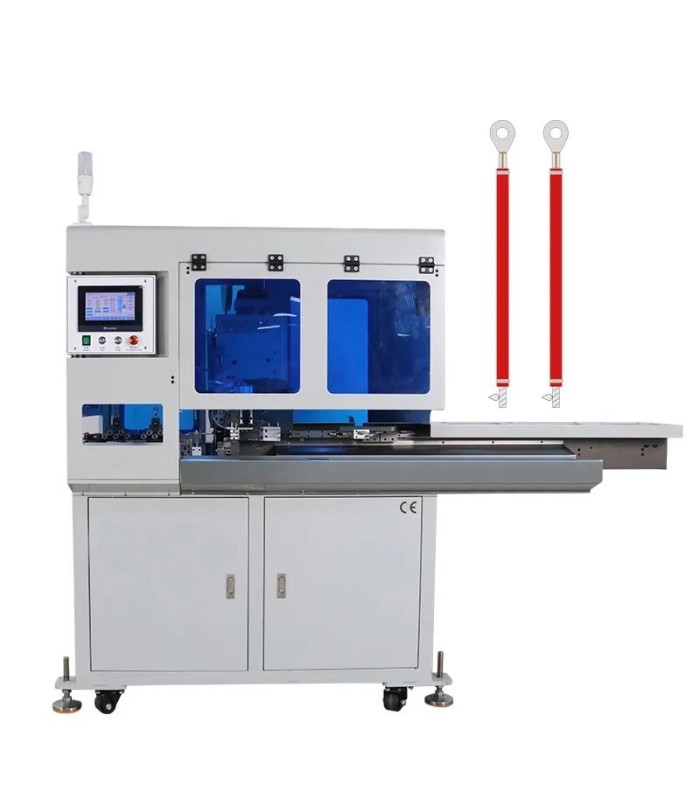

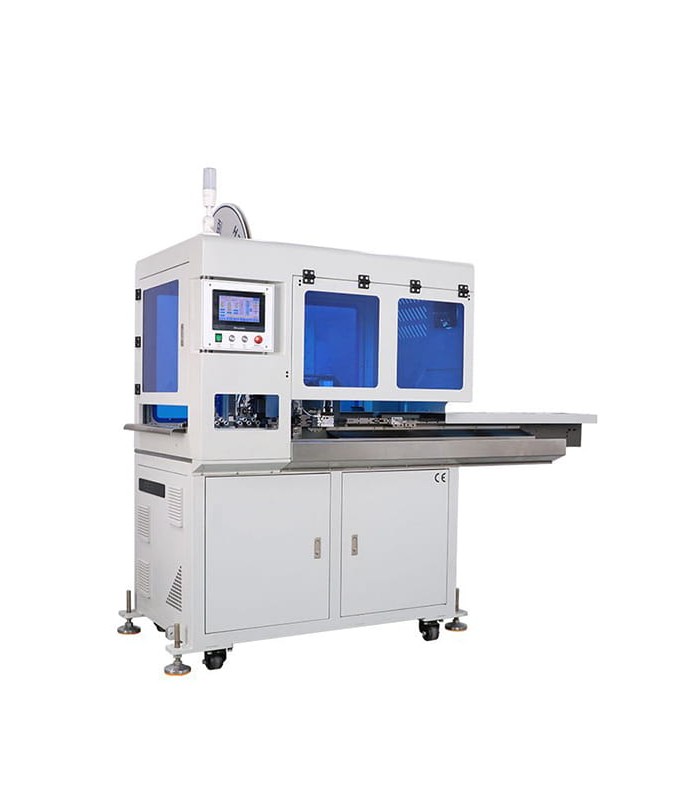

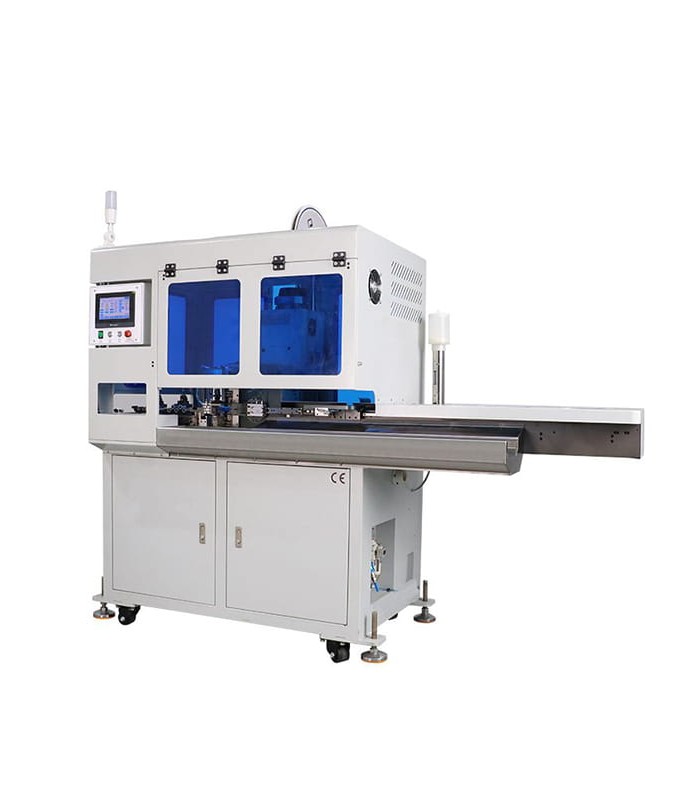

Wire Cutting, Crimping and Tinning Machine (30-18 AWG)

Errebi code: 67534
Producer code: RBEW8290
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€16,940.00 (tax excl.)
€20,666.80 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW8290
Add to wishlist
Description
Technical data

Model: RBEW8290
Wire section: 30-18 AWG
Stripping (side I): 7.5 mm
Stripping (side II): 11 mm
Cutting accuracy: +/- 0.5 mm
Cutting length: 1 - 1000 mm
Capacity: 6000 - 8000 pcs/hour
Crimping force: 2.0 T (20 KN)
Tinning length: 3 - 7 mm
Air pressure: 0.5 - 0.7 mm
Detection: wire exhaustion, low air pressure, termination error
Power: 110-220 V/50-60 HZ
Stroke: 30 - 40 mm
Dimensions: 1700 * 720 * 1500
Weight: 500 Kg
Read moreShow less
Product Details
RBEW8290

Data sheet

Product type
Terminal crimping machine
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1700x720x1500 (L x W x H)
Cable section AWG
30 - 18 AWG
Minimum order quantity
1
Unit Type
piece
Crimping force
20 KN (2T)
Stripping length Side1
0 - 7.5 mm
Stripping length Side2
0 - 11 mm
Length of Cut
1 - 1000 mm
Viewing mode
touch screen
Air pressure
0.5 - 0.7 MPa
Productivity
6000 - 8000 pz/h
Press stroke
30/40 mm
