RBEW05F+T
RBEW05F+T
RBEW05F+T
RBEW05F+T

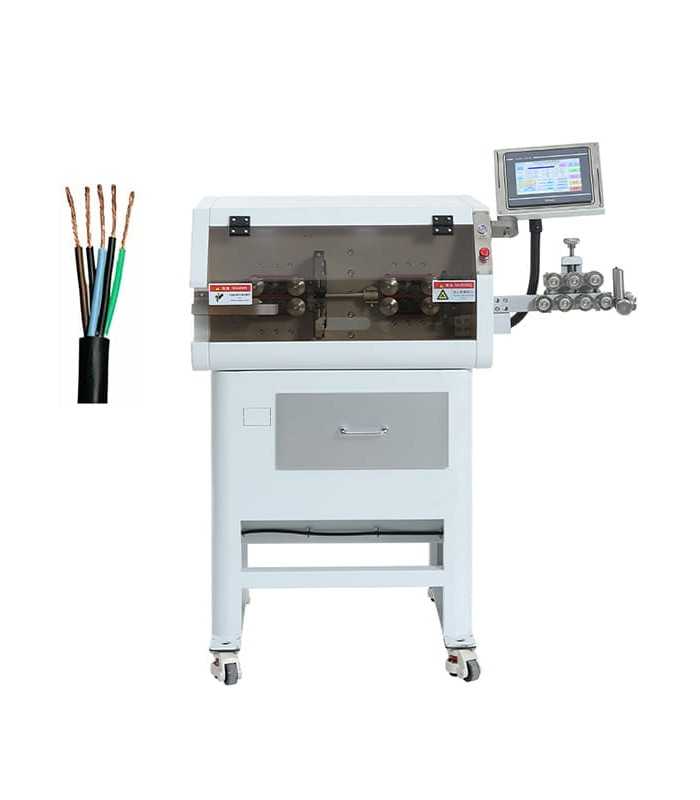

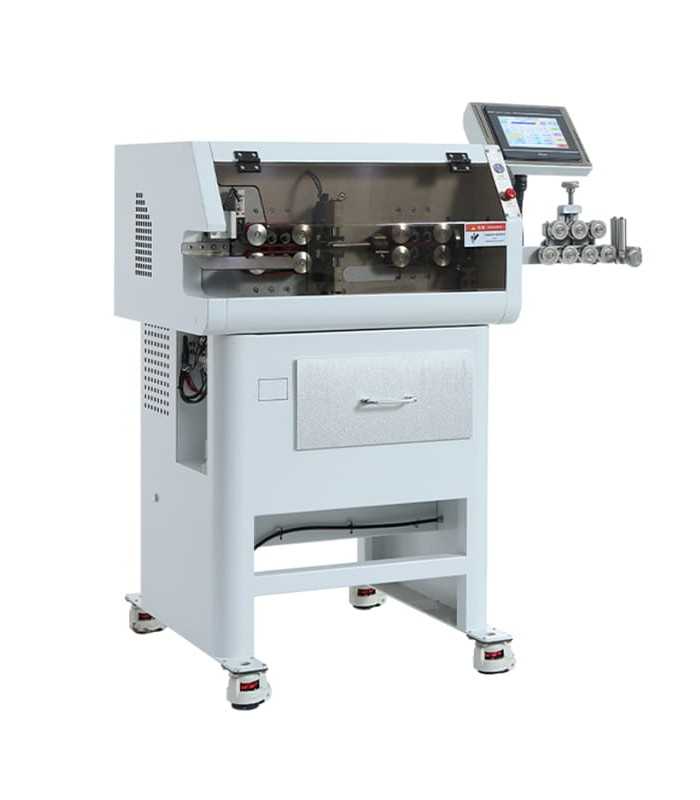

Automatic machine for cutting and stripping single and multicore cables with strand twisting device

Errebi code: 63751
Producer code: RBEW05F+T
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€9,763.00 (tax excl.)
€11,910.86 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW05F+T
Brand:
ErreBi Group
Add to wishlist
Description
Conductor cross section: 4 - 30 mm²
Cutting length: 1 - 99999.99 mm
Stripping length (I side): cable jacket
- Whole strip: 1 - 150 mm
- Half tape: 1 - 1000 mm
Central thread:
- Full strip: 1 - 30 mm
- Half strip: 1 - 100 mm
Stripping length (side II): cable jacket
- Full strip: 1 - 120 mm
- Half strip: 1 - 350 mm
Central thread:
- Full strip: 1 - 30 mm
- Half strip: 1 - 60 mm
Maximum internal diameter of the guide tube: 16 mm
Productivity: 800 pcs./h (total length = 100 mm)
Weight: 100 Kg
Dimension: 1050 x 600 x 1200 mm
Read moreShow less
Product Details
RBEW05F+T

Data sheet

Product type
Cable cutting and stripping machine
Wattage
1 kW
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1050x600x1200 (L x W x H)
Cable section mmq
4.00 mmq - 30 mmq
Minimum order quantity
1
Unit Type
piece
Maximum inner diameter of guide tube
16 mm
Stripping length Side1
Wire jacket: Full strip: 1 - 150 mm / Half strip: 1 - 1000 mm, Core wire: Full strip: 1 - 30 mm / Half strip: 1 - 100 mm
Stripping length Side2
Cable jacket: Full strip: 1 - 120 mm / Half strip: 1 - 350 mm, Core wire: Full strip: 1 - 30 mm / Half strip: 1 - 60 mm
Length of Cut
1 - 99999,99 mm
Air pressure
0.5 - 0.7 MPa
Productivity
800 pz/h
Attachments
063751_001_DATASHEET.pdf
Download (3.88MB)
063751_002_CERTIFICATION.pdf
Download (3.13MB)
