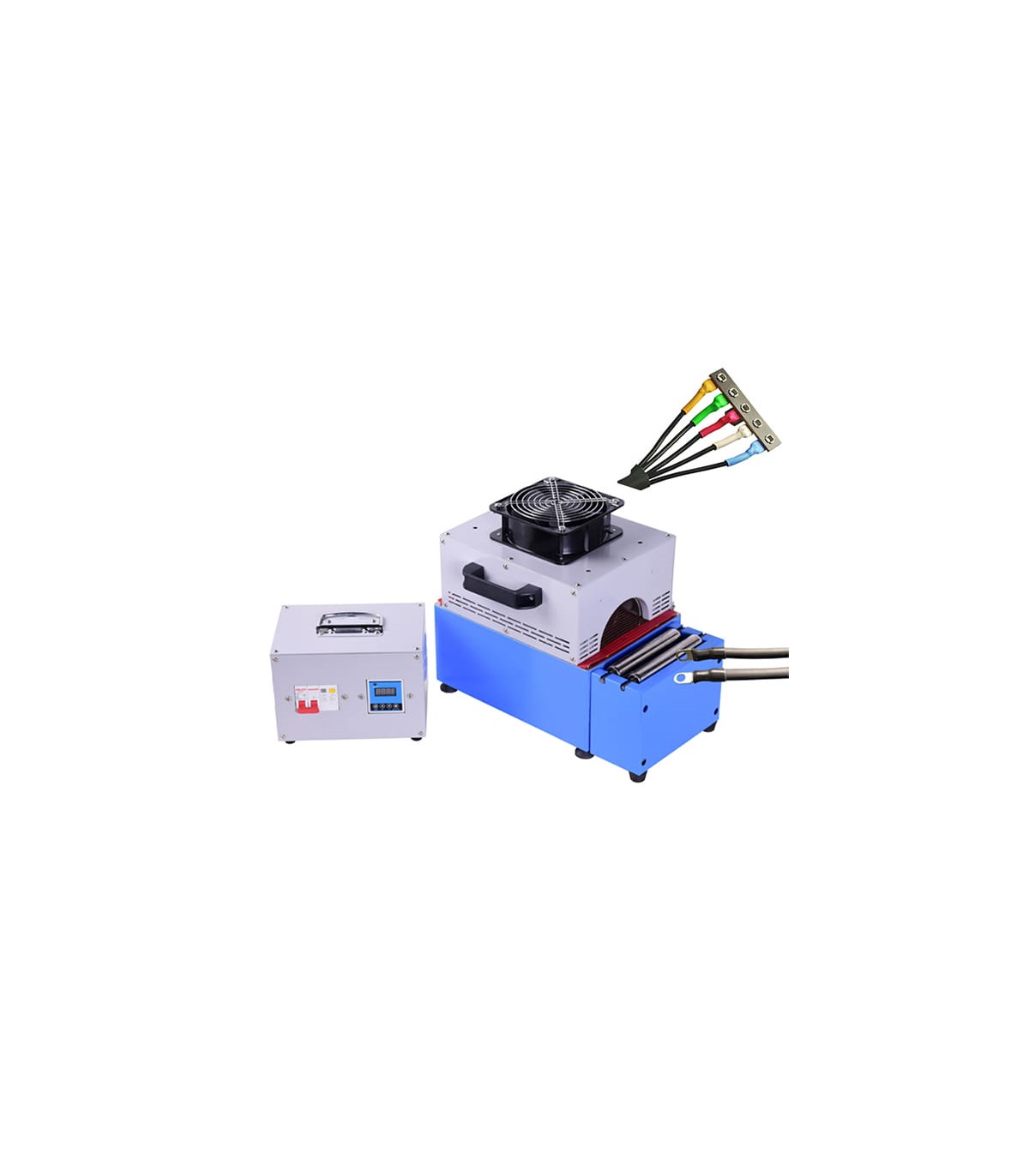

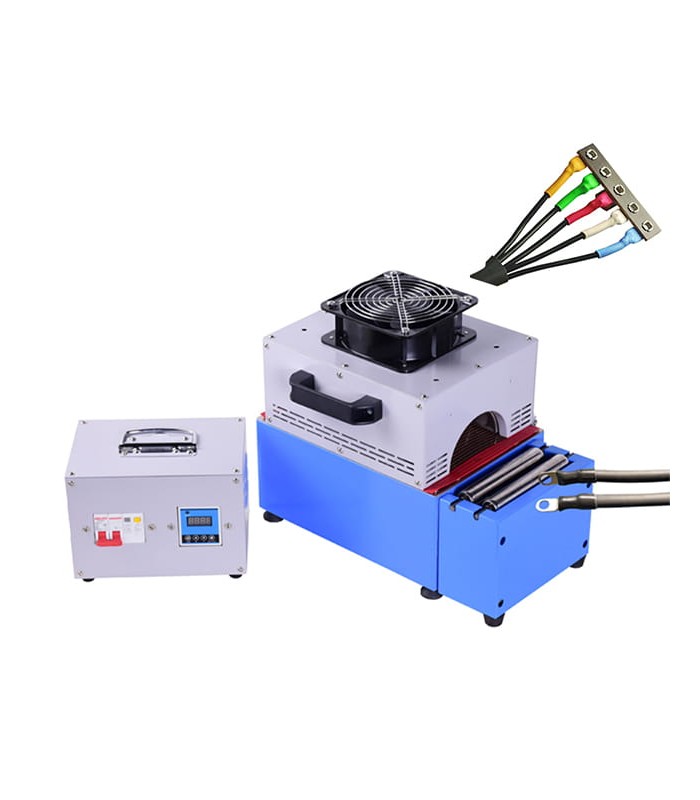

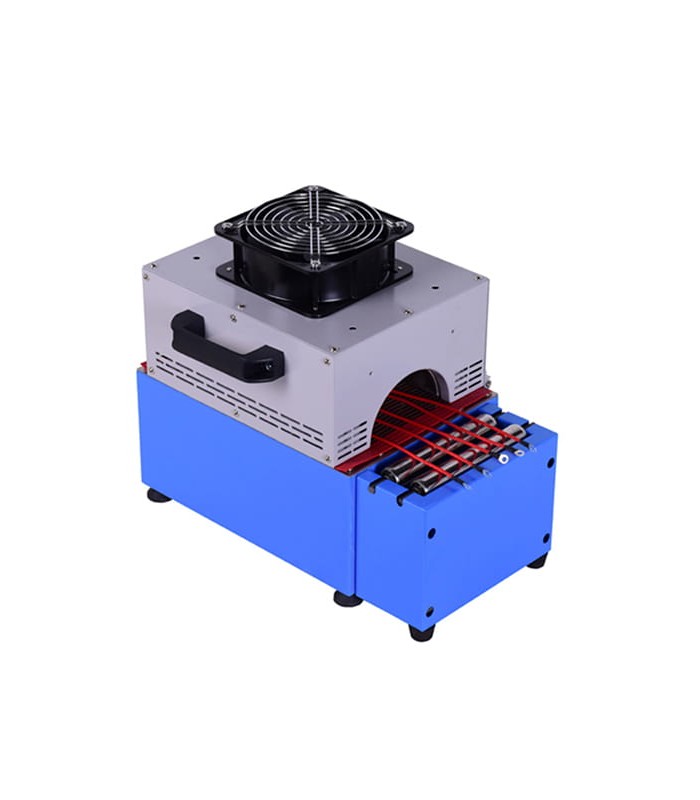

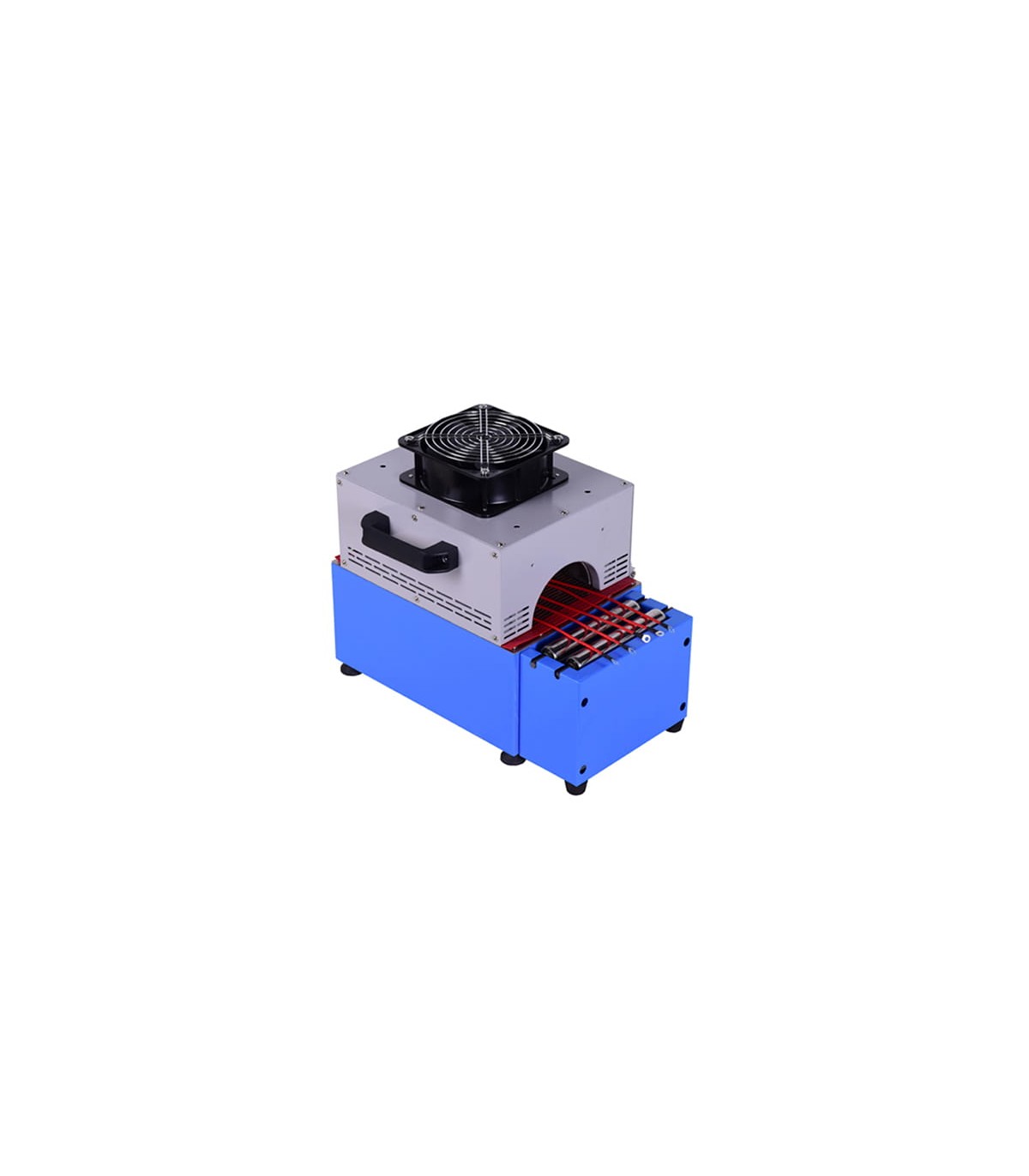

Professional heat shrink tube heating machine

The RBEW1970 is a machine designed for controlled heating and shrinking of heat-shrink tubing applied to cables, electrical wiring harnesses and industrial components.
Thanks to the infrared radiation heating system, it allows uniform and precise heat shrinking, reducing the risk of deformation, burns or irregular shrinking.
The machine is particularly suitable for applications where heat-shrink tubing needs to be heated on cables and wiring harnesses quickly, stably and repeatably.
The working range allows heating of heat-shrink tubing with length from 1 to 130 mm and cables with diameter from 1 to 25 mm, making the machine suitable for various electrical, electronic and industrial wiring applications.
The heating tube power of 2.3 kW ensures effective heating and good thermal stability during the working cycle.
The control mode with proximity sensor start allows practical and safe use, while the continuous automatic cycle increases productivity in series production.
The compact and robust structure makes the machine suitable for use in production departments, assembly lines, wiring workshops and professional applications where precision, repeatability and reliability are required.

OPERATING PRINCIPLE

- The cable with the heat-shrink tubing is positioned in the heating area
- The machine detects the presence of the piece through the proximity sensor
- The system generates heat through infrared radiation
- The tubing is heated and shrinks uniformly around the cable or component
- The continuous automatic cycle allows fast and repeatable processing
- The wiring harness is ready for the next assembly or quality control stages

MAIN ADVANTAGES

- Infrared heating for uniform heat shrinking
- Ideal for heat-shrink tubing on cables and wiring harnesses
- Suitable for heat-shrink lengths from 1 to 130 mm
- Compatible with cables from 1 to 25 mm in diameter
- Start via proximity sensor
- Continuous automatic cycle for series production
- Heating power of 2.3 kW
- Reduction of shrinking defects
- Improved aesthetic and functional quality of the finished wiring harness
- Stable and repeatable process
- Compact and robust structure
- Suitable for professional and industrial use

MAIN APPLICATIONS

- Heat shrinking of tubing on electrical cables
- Processing of industrial wiring harnesses
- Wiring harness assembly
- Automotive sector
- Electrical panel production
- Protection and insulation of electrical connections
- Electrical and electronic wiring
- Industrial applications
- Assembly and production departments
- Professional electrical maintenance

TECHNICAL FEATURES

Model: RBEW1970

Machine type: heat-shrink tube heating machine

Heating type: infrared radiation

Heat-shrink length: 1 - 130 mm

Heatable diameter: 1 - 25 mm

Heating tube power: 2.3 kW

Operating voltage: 220 V / 50-60 Hz

Control mode: proximity sensor start; continuous automatic cycle

Overall machine dimensions: 830 x 390 x 480 mm

Overall machine weight: 16.5 kg

Application: heating and shrinking of heat-shrink tubing on cables and wiring harnesses

Operation: controlled infrared heating

Use: professional and industrial
