RBCTS1.0PM5V

series 1.0 Connector female 5 way

Errebi code: 59167
Producer code: 7282-5830
Producer: Yazaki
Read moreShow less
€2.61 (tax excl.)
€3.18 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.87 €3.14
25 €2.55 €15.88
50 €2.39 €39.80
100 €2.07 €111.77
250 €1.75 €357.82
500 €1.59 €796.05
1000 €1.43 €1,752.90
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTS1.0PM5V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki Code: 7282-5830
Connection type: Cable to cable
Unsealed / Sealed: Unsealed
Gender: female
Number of poles: 5
Tab width 1.0 mm
material: PBT
Natural color
Permitted current 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand voltage 1000 V AC (1 min.)
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PM5V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

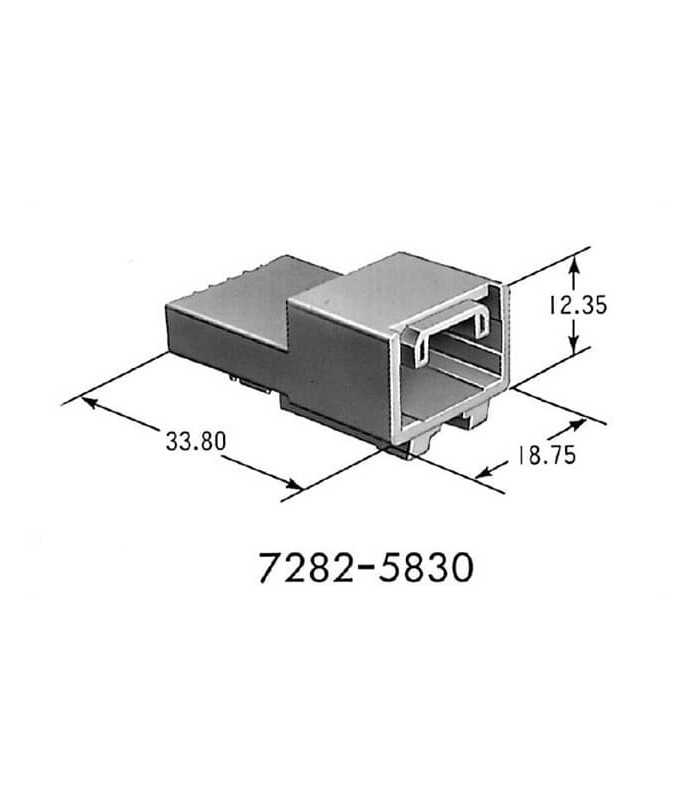

Dimensions
18,75x33,80x12,35 (L x W x H)
Mounting
On cable
Kind
Female
Number of poles
5
Number of rows
1
Orientation
180°
Minimum order quantity
1
Unit Type
piece
