RBCTS1.0PF5V

series 1.0 Connector male 5 way

JPT Connector Female 25 way yellow
Errebi code: 59166
Producer code: 7283-5830
Producer: Yazaki
Read moreShow less
€2.43 (tax excl.)
€2.96 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.67 €2.96
25 €2.37 €14.82
50 €2.22 €37.06
100 €1.93 €103.76
250 €1.63 €333.52
500 €1.48 €741.15
1000 €1.33 €1,630.53
Product available for orders
Condition
New
Reference:
RBCTS1.0PF5V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki Code: 7283-5830
Connection type: Cable to cable
Wire on board
Cable to the device
Unsealed / Sealed: Unsealed
Gender: male
Number of poles: 5
Tab width 1.0 mm
material: PBT
Natural color
Allowed current: 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand voltage 1000 V AC (1 min.)
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PF5V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

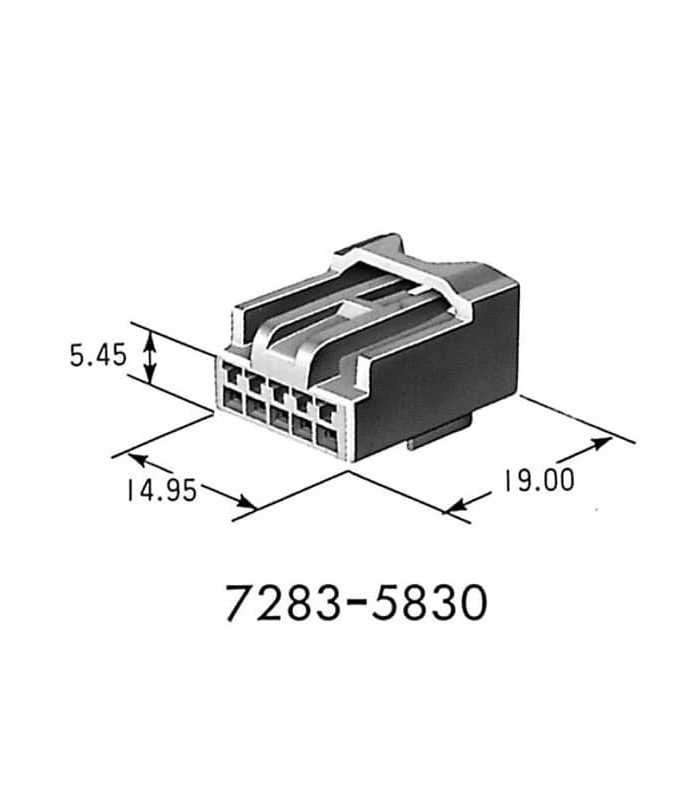

Dimensions
14,95x19,00x5,45 (L x W x H)
Mounting
On cable
Kind
Male
Number of poles
5
Number of rows
1
Orientation
180°
Minimum order quantity
1
Unit Type
piece
