RBCTS1.0PM2V

series 1.0 Connector female 2 way

JPT Connector Female 25 way yellow
Errebi code: 59165
Producer code: 7282-5845
Producer: Yazaki
Read moreShow less
€2.56 (tax excl.)
€3.12 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.81 €3.12
25 €2.50 €15.62
50 €2.34 €39.04
100 €2.03 €109.31
250 €1.72 €351.36
500 €1.56 €780.80
1000 €1.41 €1,717.76
Product available for orders
Condition
New
Reference:
RBCTS1.0PM2V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki code 7282-5845
Connection type: Cable to cable
Unsealed / Sealed: Unsealed
Gender: female
Number of poles: 2
Tab width 1.0 mm
material: PBT
Natural color
Permitted current 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand voltage 1000 V AC (1 min.)
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PM2V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

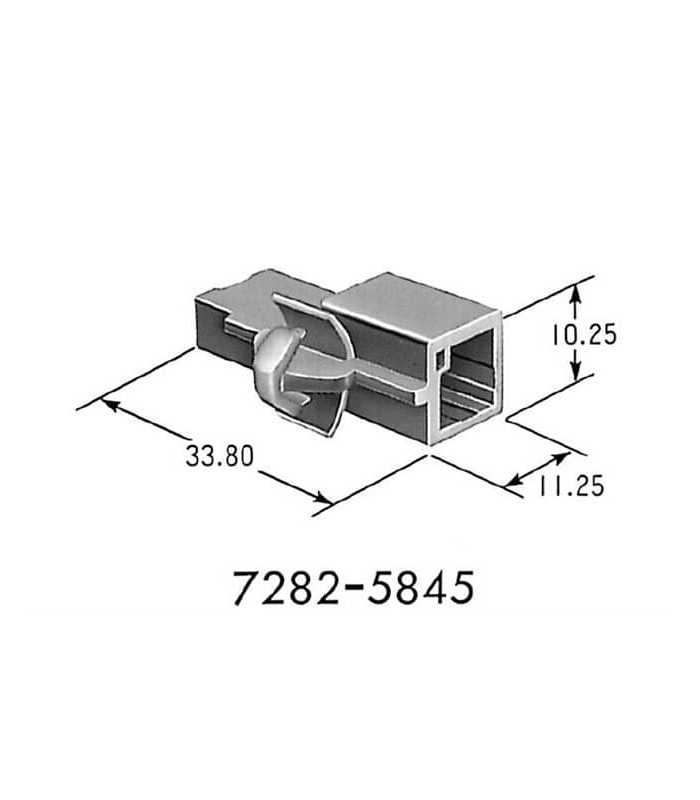

Dimensions
11,25x33,80x10,25 (L x W x H)
Mounting
On cable
Kind
Female
Number of poles
2
Number of rows
1
Orientation
180°
Minimum order quantity
1
Unit Type
piece
