RBCTS1.0PF22V

series 1.0 Connector male 22 way

JPT Connector Female 25 way yellow
Errebi code: 59170
Producer code: 7283-5834
Producer: Yazaki
Read moreShow less
€3.10 (tax excl.)
€3.78 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €3.40 €3.78
25 €3.03 €18.91
50 €2.84 €47.28
100 €2.46 €132.37
250 €2.08 €425.48
500 €1.89 €945.50
1000 €1.70 €2,080.10
Product available for orders
Condition
New
Reference:
RBCTS1.0PF22V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki Code: 7283-5834
Connection type: Cable to cable
Wire on board
Cable to the device
Unsealed / Sealed: Unsealed
Gender: male
Number of poles: 22
Tab width: 1.0 mm
material: PBT
Natural color
Allowed current: 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand voltage: 1000V AC
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PF22V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

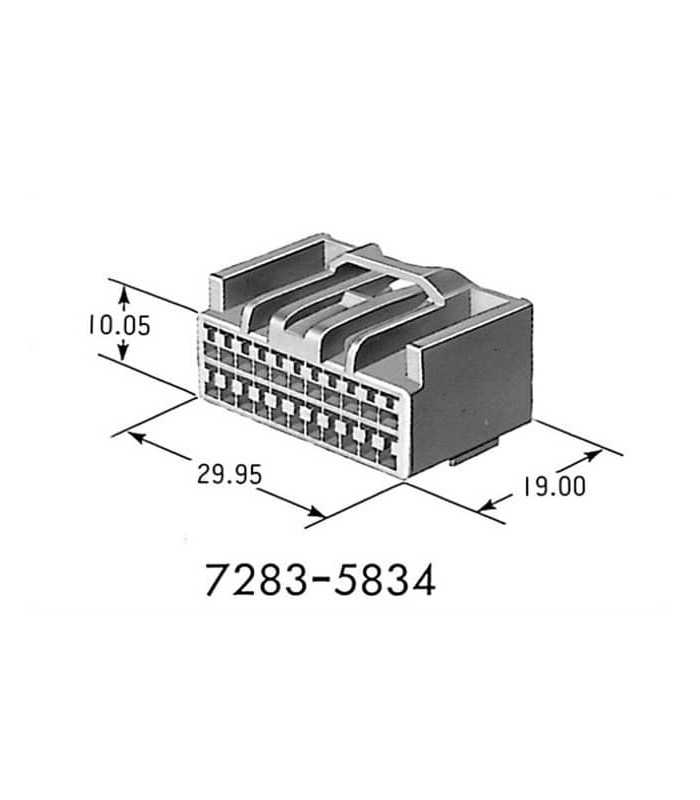

Dimensions
29,95x19,00x10,05 (L x W x H)
Mounting
On cable
Kind
Male
Number of poles
22
Number of rows
2
Orientation
180°
Minimum order quantity
1
Unit Type
piece
