RBCTS1.0PF18V

series 1.0 Connector male 18 way

Errebi code: 59168
Producer code: 7283-5833
Producer: Yazaki
Read moreShow less
€3.25 (tax excl.)
€3.97 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €3.57 €3.91
25 €3.17 €19.78
50 €2.97 €49.56
100 €2.57 €139.17
250 €2.18 €445.57
500 €1.98 €991.25
1000 €1.78 €2,182.73
'Available in 30 working days from the order.'
Condition
New
Reference:
RBCTS1.0PF18V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki Code: 7283-5833
Connection type: Cable to cable
Wire on board
Cable to the device
Unsealed / Sealed: Unsealed
Gender: male
Number of poles: 18
Tab width 1.0 mm
material: PBT
Natural color
Allowed current: 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand voltage 1000 V AC
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PF18V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

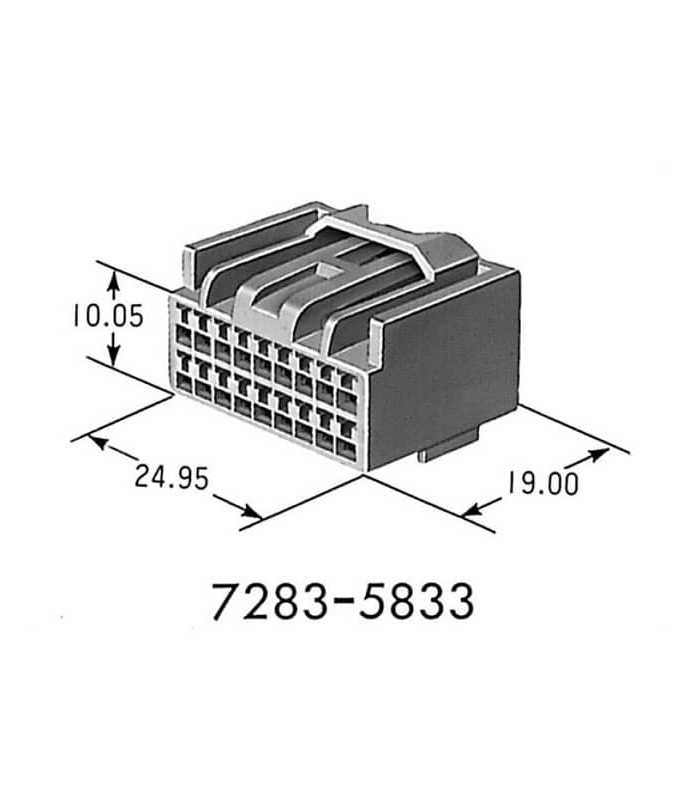

Dimensions
24,95x19,00x10,05 (L x W x H)
Mounting
On cable
Kind
Male
Number of poles
18
Number of rows
2
Orientation
180°
Minimum order quantity
1
Unit Type
piece
