RBCTS1.0PF2V

series 1.0 Connector male 2 way

JPT Connector Female 25 way yellow
Errebi code: 59162
Producer code: 7283-5845
Producer: Yazaki
Read moreShow less
€2.30 (tax excl.)
€2.81 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €2.53 €2.81
25 €2.24 €14.03
50 €2.10 €35.08
100 €1.82 €98.21
250 €1.54 €315.68
500 €1.40 €701.50
1000 €1.26 €1,543.30
Product available for orders
Condition
New
Reference:
RBCTS1.0PF2V
Brand:
ErreBi Group
Add to wishlist
Description
Yazaki part number 7283-5845
Connection type Cable to cable
Wire on board
Cable to the device
Unsealed / Sealed: Unsealed
Gender: male
Number of poles: 2
Width: tongue: 1.0 mm
material: PBT
Natural color
Allowed current: 3A
Low Level Contact Resistance 5 milliohm max.
Insulation resistance 100 megohms min. (At 500 V DC)
Withstand Voltage: 1000VAC (1min.)
Temperature range: -30 to 80 degrees. C.
Read moreShow less
Product Details
RBCTS1.0PF2V

Data sheet

Product type
Connector body
Serie
YAZAKI 1.0
Material
PBT (Polybutylene terephthalate)
Color
White
Operating temperature
-40°C to +120°C

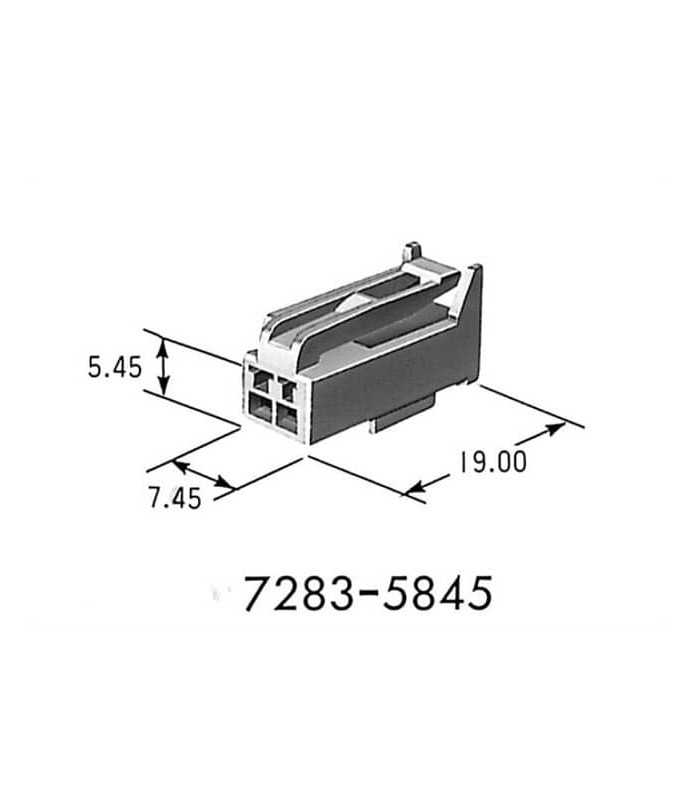

Dimensions
7,45x19,00x5,45 (L x W x H)
Mounting
On cable
Kind
Male
Number of poles
2
Number of rows
1
Orientation
180°
Minimum order quantity
1
Unit Type
piece
