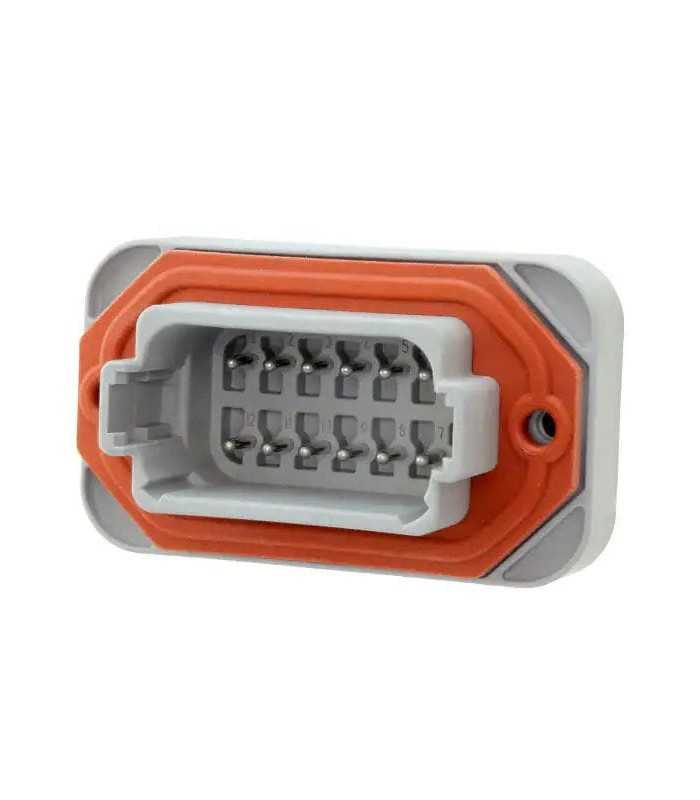

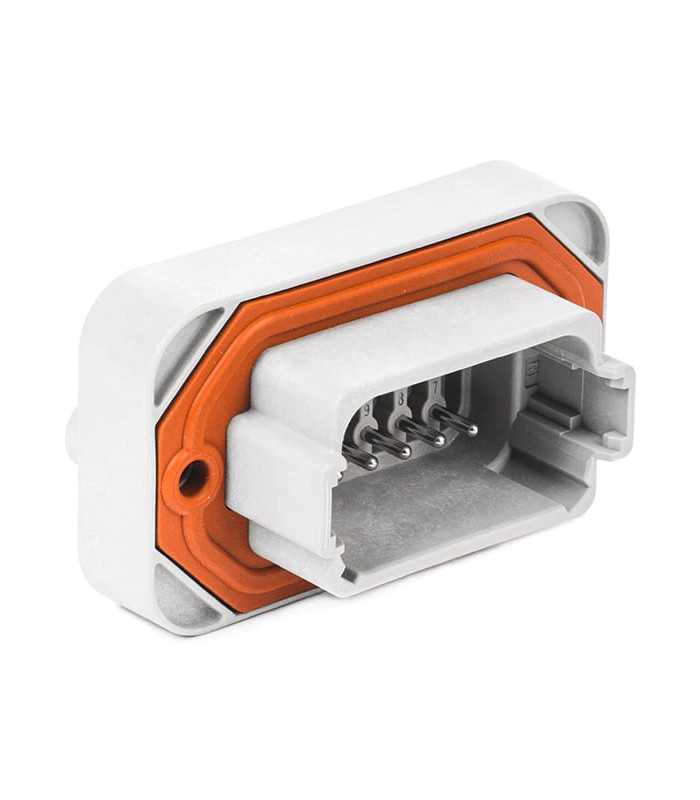

Connector DT15 Series Female 12 Way PCB

PCB Connector Assembly Type: PCB Mount Header
Connector and housing shape: rectangular
Connection system: cable-to-board
Connector and contact terminals with: wire and cable

Configuration features:
Number of signal positions: 12
Number of positions: 12
PCB mounting orientation: vertical
Number of lines: 2
Number of sections: 1

Electrical characteristics:
Operating voltage (VAC): 250
Operating voltage (VCC): 250
Nominal voltage architecture (V): 12, 24
Rated voltage (max) (VAC): 250
Rated voltage (max) (VDC): 250

Body features:
Primary product color: gray

Contact functions:
Contact type: Pin
Contact size: size 16mm
Coupling Pin Diameter: 1.59 mm [.063 in]
Contact rated current (max) (A): 13

Center line (pitch): 1.45 mm [0.175 inch]

Dimensions:
Profile height from PCB: 35.26mm [1.388 in]
PCB thickness (recommended): .78 - 2.36 mm [.031 - .093 in]
Connector Width: 59.21mm [2.331in]
Connector length: 39.5mm [1.555 inch]

Terms of use:
Operating temperature (max): 125 ° C [257 ° F]
Operating temperature range: -55 - 125 ° C [-67 - 257 ° F]
UL flammability classification: UL 94V-0
