RBCTDTMF3VP

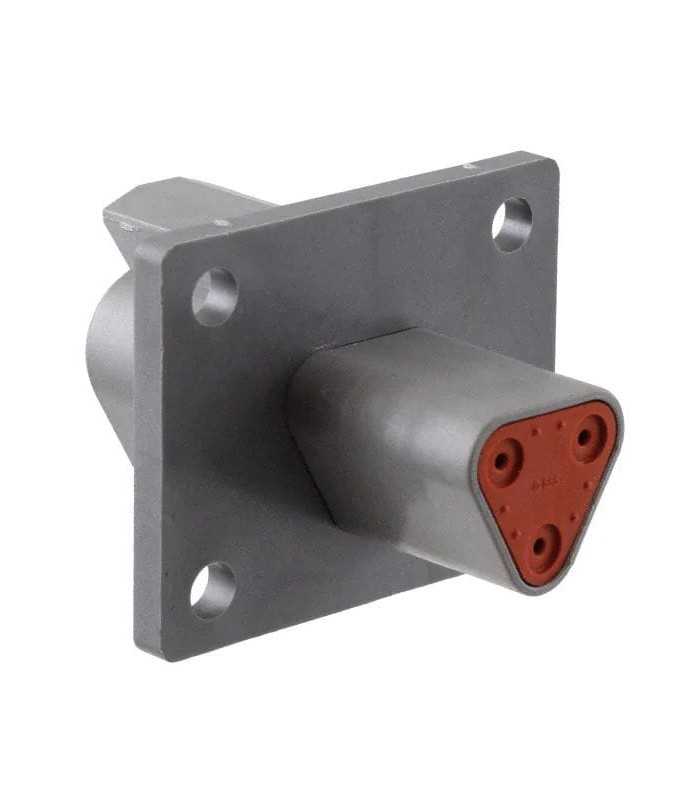

Connector DT Series Female 3 Way from panel

JPT Connector Female 25 way green
Errebi code: 57799
Producer code: DT04-3P-L012
Producer: Deutsch
Read moreShow less
€3.52 (tax excl.)
€4.29 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €3.86 €4.29
25 €3.44 €21.47
50 €3.22 €53.68
100 €2.79 €150.30
250 €2.36 €483.12
500 €2.15 €1,073.60
1000 €1.93 €2,361.92
'Available in 15 working days from the order.'
Condition
New
Reference:
RBCTDTPM3VPL012GR
Brand:
Deutsch
Add to wishlist
Description
Number of positions: 3 positions
Pitch: 10.01 mm
Gender: Female
Mounting Style: Mounting Flange
Termination style: crimp
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Grey
Rated current: 13A
Height: 31.75 mm
Housing material: polyamide (PA)
Degree of protection: IP68, IP6K9K
Insulation: isolated
Length: 43.13 mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Product Type: Automotive Connectors
Type: 3 way
Rated voltage: 250V
Width: 40.51 mm
Unit weight: 10,540 g
Read moreShow less
Product Details
RBCTDTPM3VPL012GR

Data sheet

Product type
Connector body
Serie
DT
Amperage
13A
Material
PA (Polyamide, Nylon)
Color
Grey
IP rating
IP68
Operating temperature
-55°C to +125°C
Dimensions
43.13x40.51x31.75 (L x W x H)
Flammability
94-HB
Voltage
250V
Mounting
On panel
Kind
Male + Female
Number of poles
3
Number of rows
2
Pitch
10.01 mm
Orientation
180°
Minimum order quantity
1
Unit Type
piece
