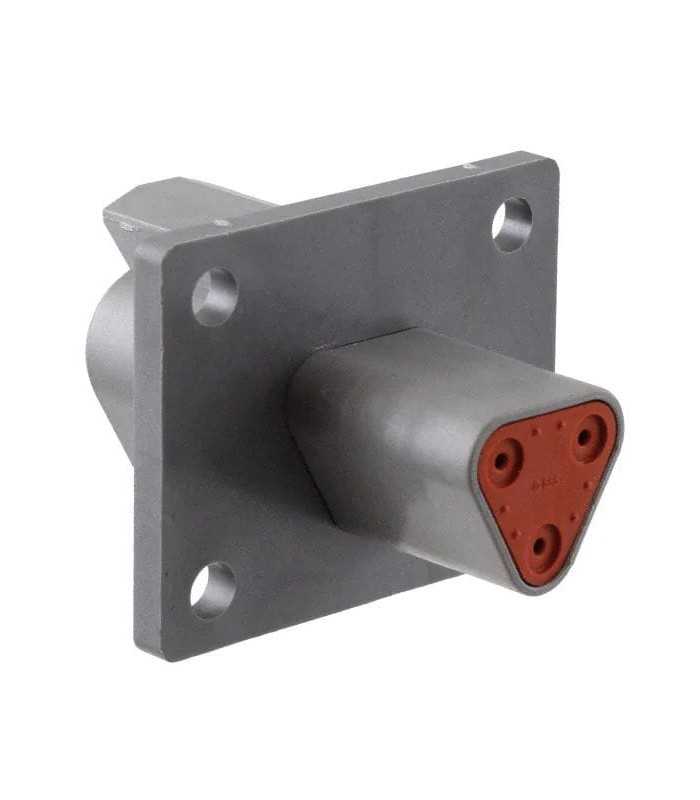

Number of positions: 3 positions
Pitch: 10.01 mm
Gender: Female
Mounting Style: Mounting Flange
Termination style: crimp
Maximum wire diameter: 14 AWG
Minimum wire diameter: 20 AWG
Fixing hole diameter: 1.5mm
Color: Grey
Rated current: 13A
Height: 31.75 mm
Housing material: polyamide (PA)
Degree of protection: IP68, IP6K9K
Insulation: isolated
Length: 43.13 mm
Material: plastic
Maximum operating temperature: + 125 C
Minimum operating temperature: - 55 C
Mounting angle: straight
Product Type: Automotive Connectors
Type: 3 way
Rated voltage: 250V
Width: 40.51 mm
Unit weight: 10,540 g
