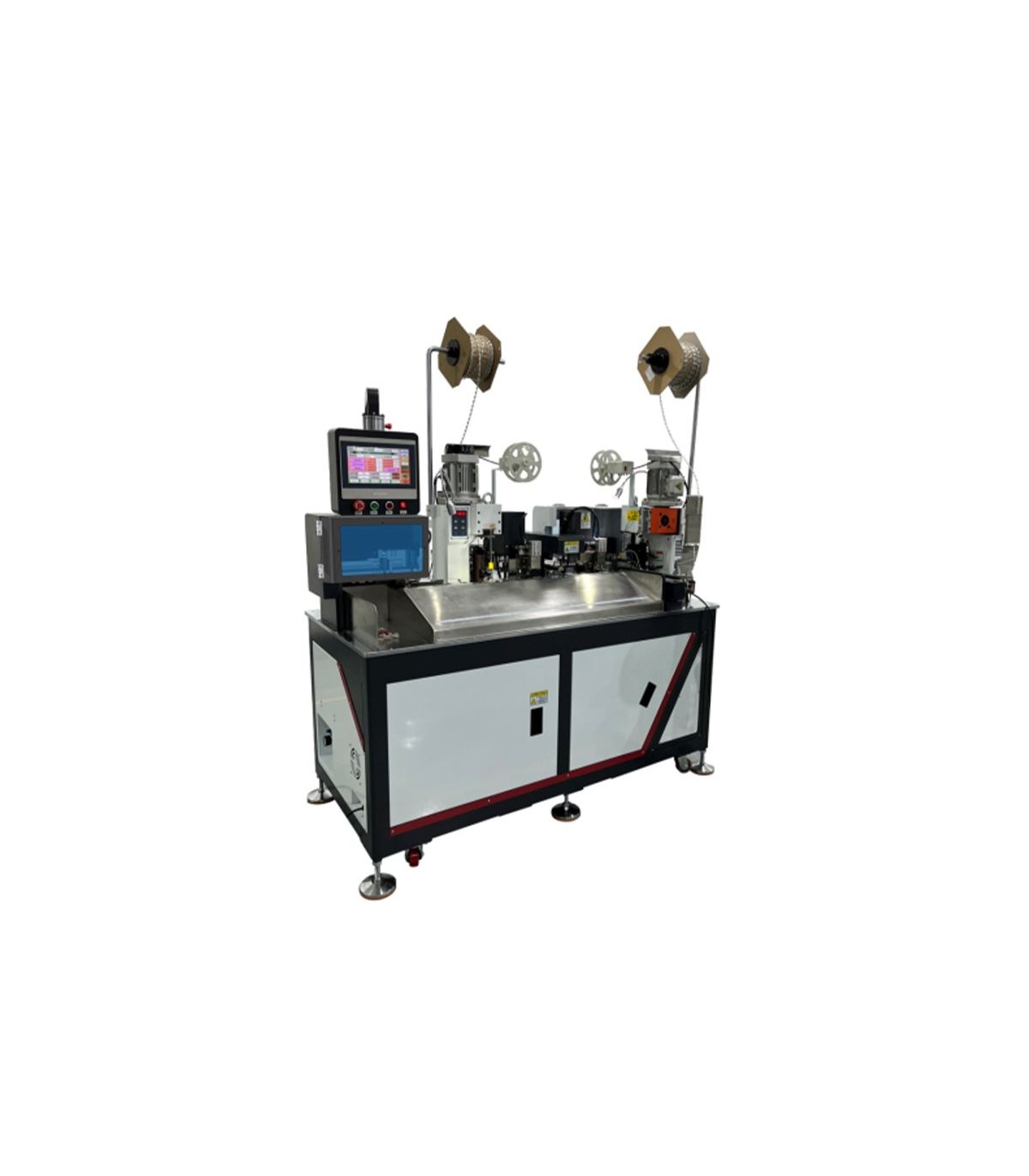

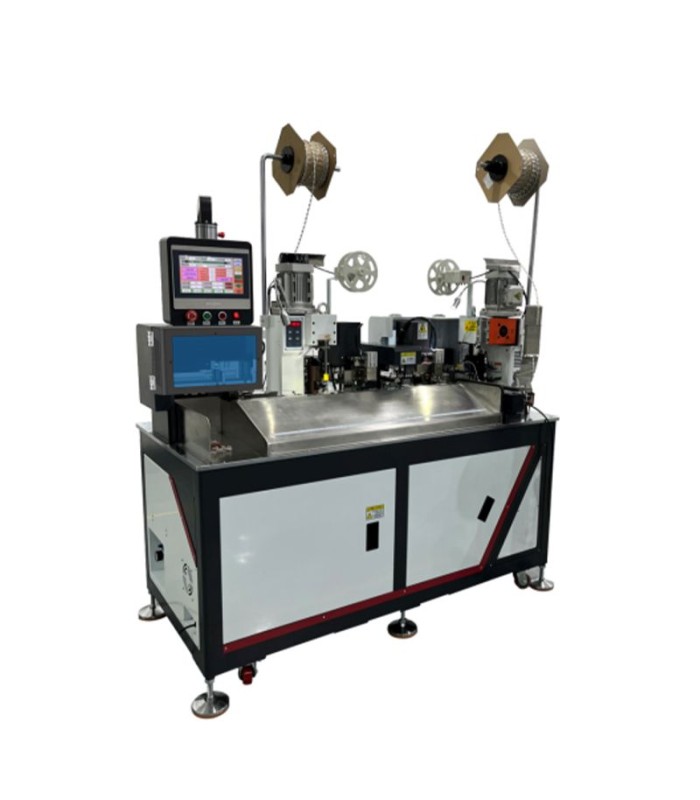

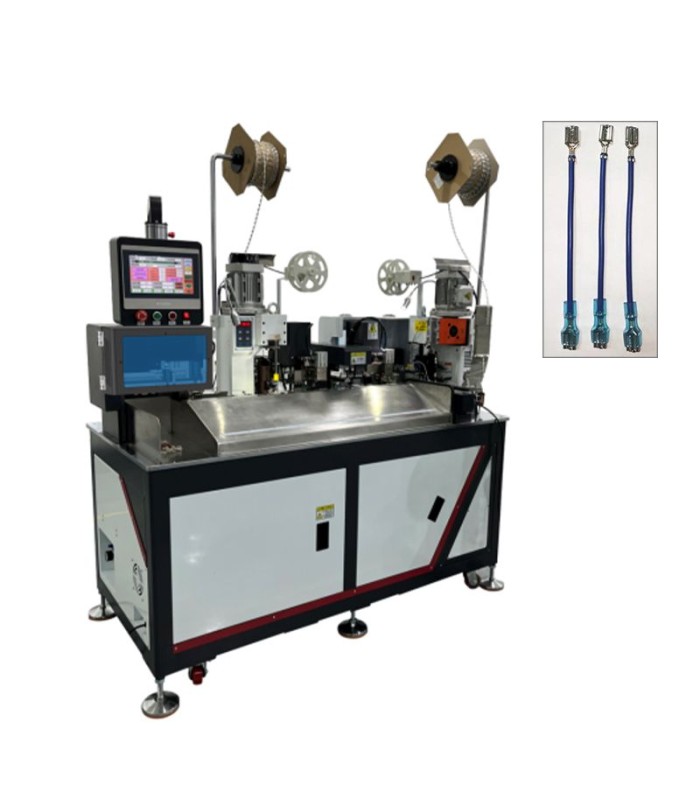

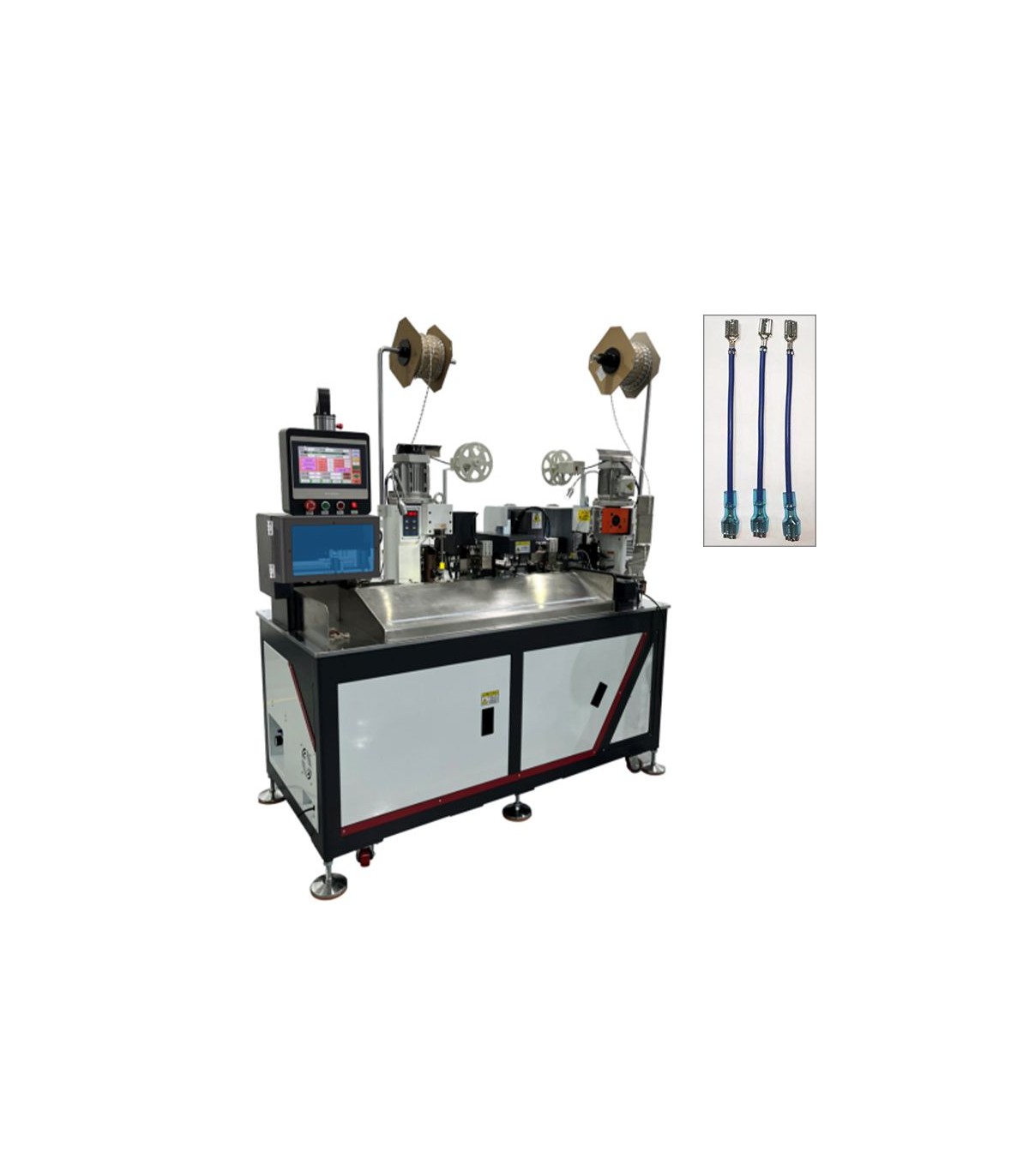

Automatic crimping machine, terminal insertion on both sides

The RBEW8345 is a fully automatic machine that integrates in a single cycle: cut-to-length, single/double-end stripping, double-side crimping and sleeve insertion on one side with end-stop positioning. It is designed for electrical harnesses that require high productivity, repeatable quality and integrated process monitoring.

Workflow

1) Cut-to-length: adjustable lengths 90 - 9,999 mm; for cables = 800 mm, the use of the outgoing conveyor belt is ????????????.

2) Stripping: single or double end, 1 - 15 mm per side.

3) Double-side crimping: crimping force 3.0 T, stroke 30 mm.

4) Sleeve insertion (on one side): the machine inserts and positions the sleeve (sheath) on one end and then completes crimping on both sides.

Main technical data

Model: RBEW8345

Cable cross-section (mm²): 1.00 - 4.00 mm²

Cable cross-section (AWG): 24 - 12 AWG

Cutting length: 90 - 9,999 mm

Stripping length: 1 - 15 mm

Crimping force: 3.0 T (30 kN)

Stroke: 30 mm

Functions: cutting; single/double stripping; single/double crimping; sleeve insertion on one side only

Fault detection: low air pressure, cable jam or missing cable

Control: touch screen

Productivity: 2,000 - 2,500 pcs/h

Air pressure: 0.5 - 0.8 MPa

Voltage: AC 220 V single-phase, 50/60 Hz

Weight: 500 kg

Dimensions: 1700 × 900 × 1860 mm (L × W × H)
