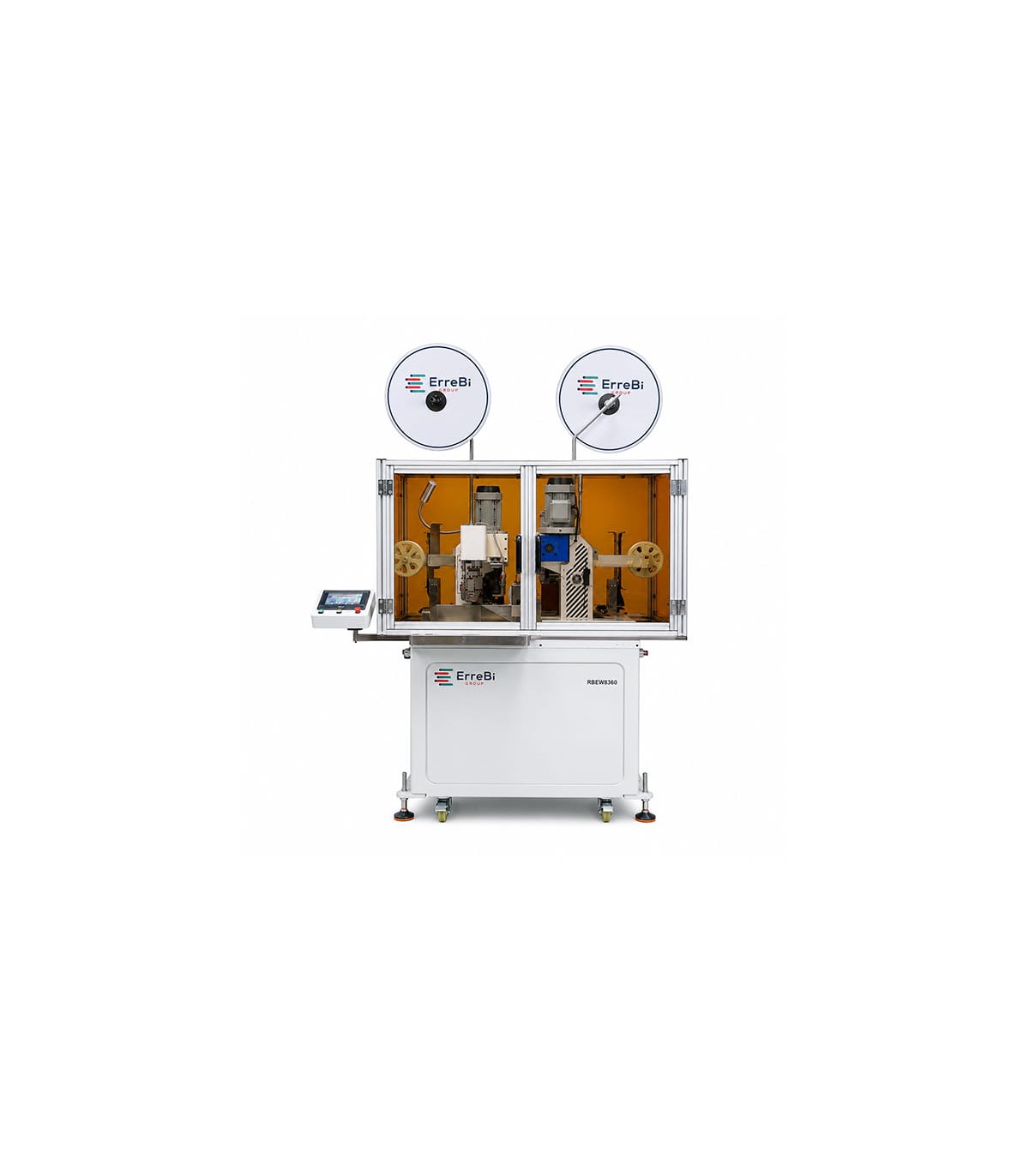

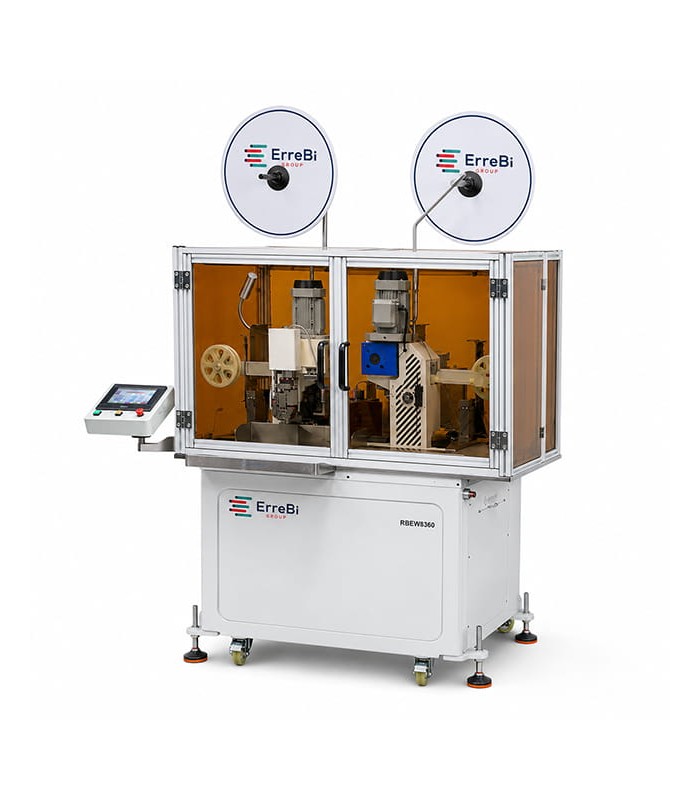

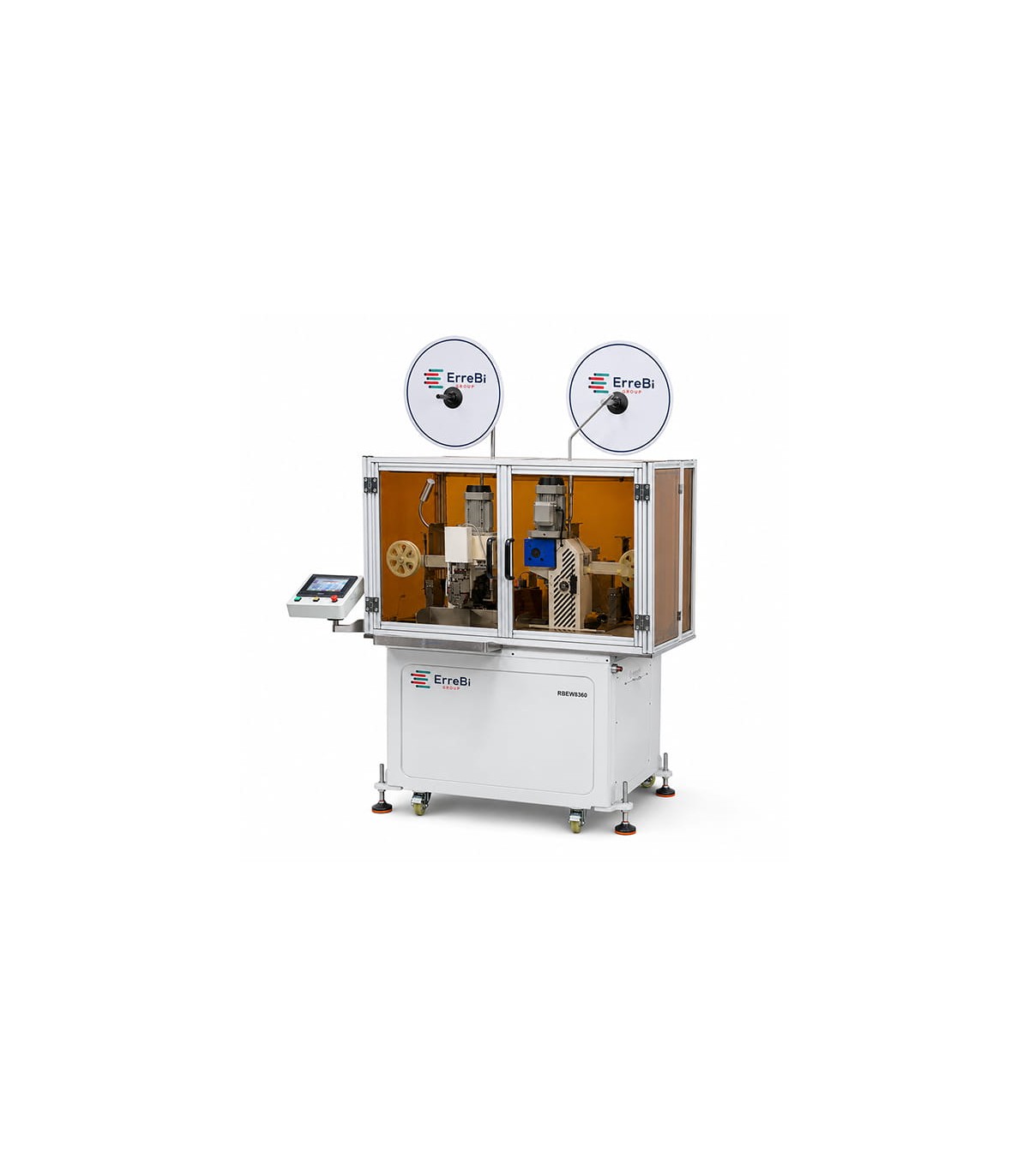

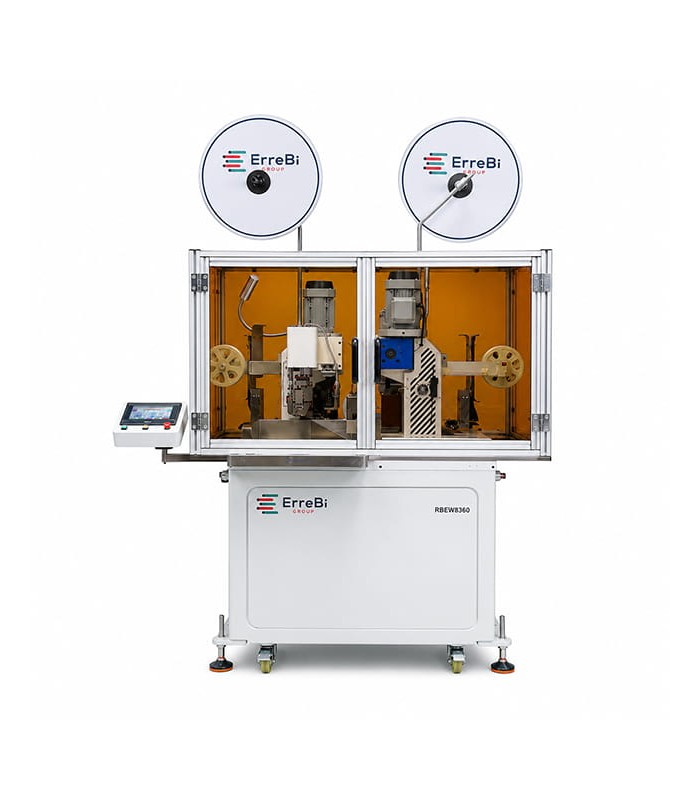

High-speed automatic servo motor machine for double terminal crimping 30 AWG - 14 AWG

The RBEW8360 is a professional automatic machine designed for cutting, stripping and crimping terminals on both ends of the cable.
It is suitable for wiring harness production where high speed, processing precision, process stability and reduced manual working time are required.
The machine automatically performs cable cutting to length, end stripping and double crimping, making it ideal for series production and industrial applications.
The 4-wheel cable feeding system improves feeding stability, reduces the risk of slipping and allows more precise and uniform processing.
Control via LCD touch screen display makes parameter setting simple and intuitive, making it easier to adjust cutting lengths, stripping dimensions and processing positions.
The servo motor translation ensures fast, precise and repeatable movements, helping to maintain high wiring quality even during continuous production.
The compact and robust structure, combined with the precision terminal machine with 2T crimping capacity, makes the machine suitable for professional processing of electronic cables, high-temperature cables, Teflon cables and similar applications.
The machine integrates detection and control functions such as cable knot detection, cable absence detection, paper collection and air pressure control, helping to reduce waste, machine downtime and production defects.

OPERATING PRINCIPLE

- The cable is automatically fed through the 4-wheel system
- The machine cuts the cable to the set length
- The ends are stripped according to the configured parameters
- The terminals are automatically crimped on both ends of the cable
- The servo system controls front and rear translation for precise processing
- The rotating arm collects the processed cables in an orderly way
- The detection functions monitor any anomalies during the production cycle

MAIN ADVANTAGES

- Cutting, stripping and double crimping in a single automatic cycle
- Ideal for high-speed production
- Production capacity up to 4200 pieces/hour
- 4-wheel cable feeding for greater stability
- Crimping on both ends of the cable
- LCD touch screen display for easy parameter adjustment
- Front and rear servo translation with brake
- Compatible with horizontal and vertical dies
- High cutting precision
- Cable knot detection, cable absence detection, paper collection and air pressure control
- Possibility to install crimping pressure monitoring
- Robust structure for continuous industrial use
- Reduces manual processing time
- Suitable for electrical and electronic wiring harness production

MAIN APPLICATIONS

- Electrical wiring harness production
- Wiring harness production
- Automotive wiring
- Electronic wiring
- High-temperature cables
- Teflon cables
- Electrical and electronic equipment
- Household appliances and industrial systems
- Series production of crimped cables
- Terminal assembly on both ends of the cable
- Automatic production lines
- High-productivity industrial applications
