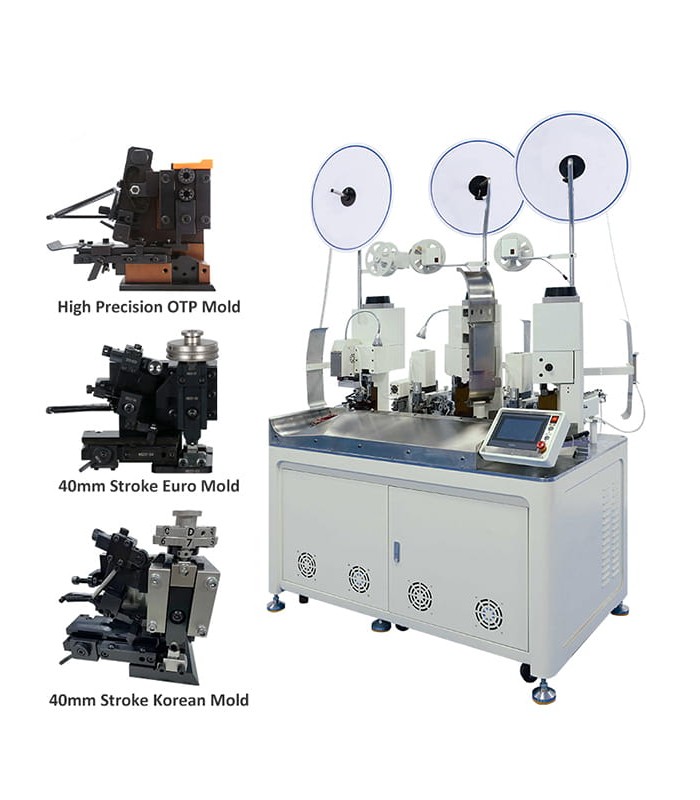

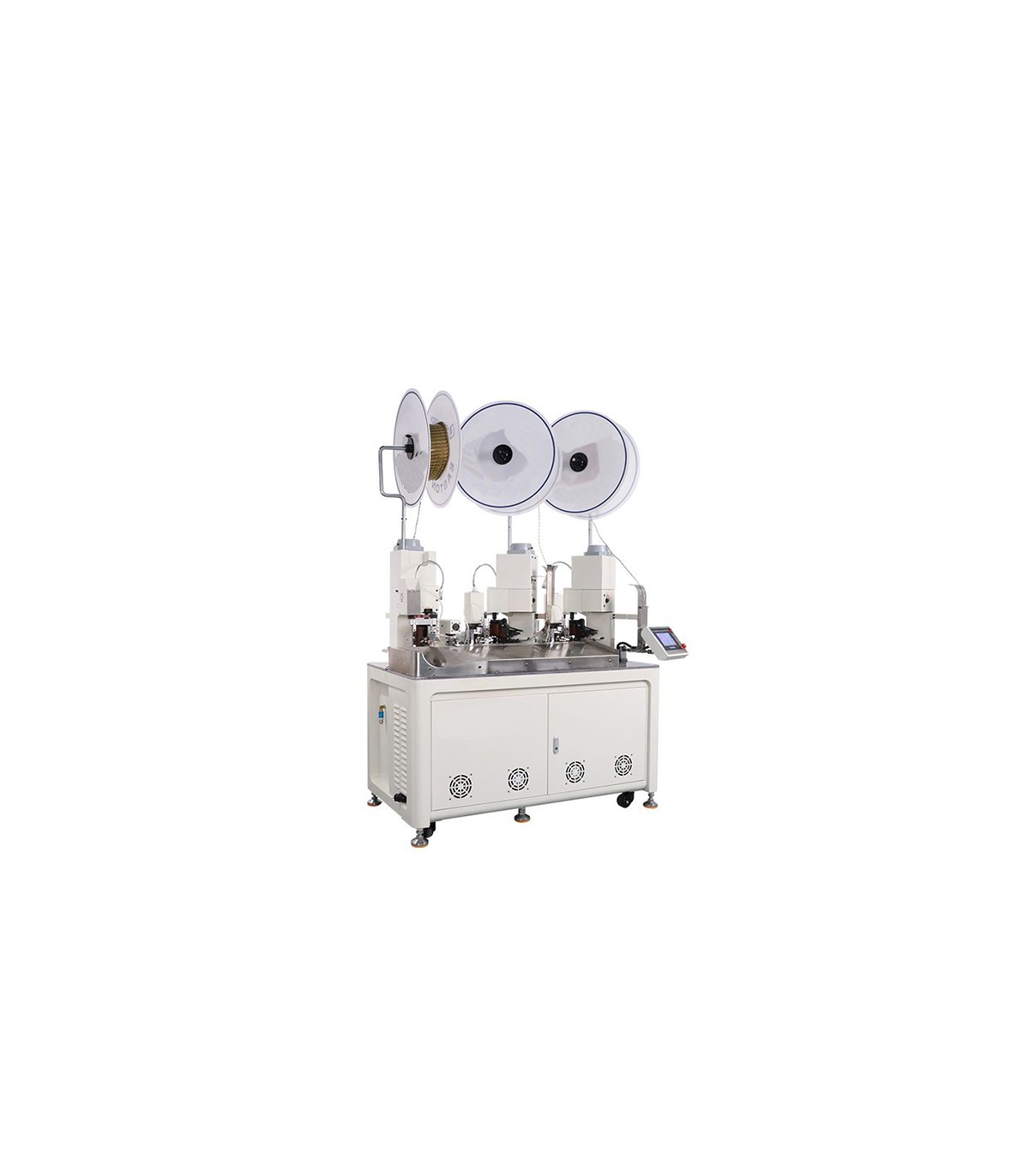

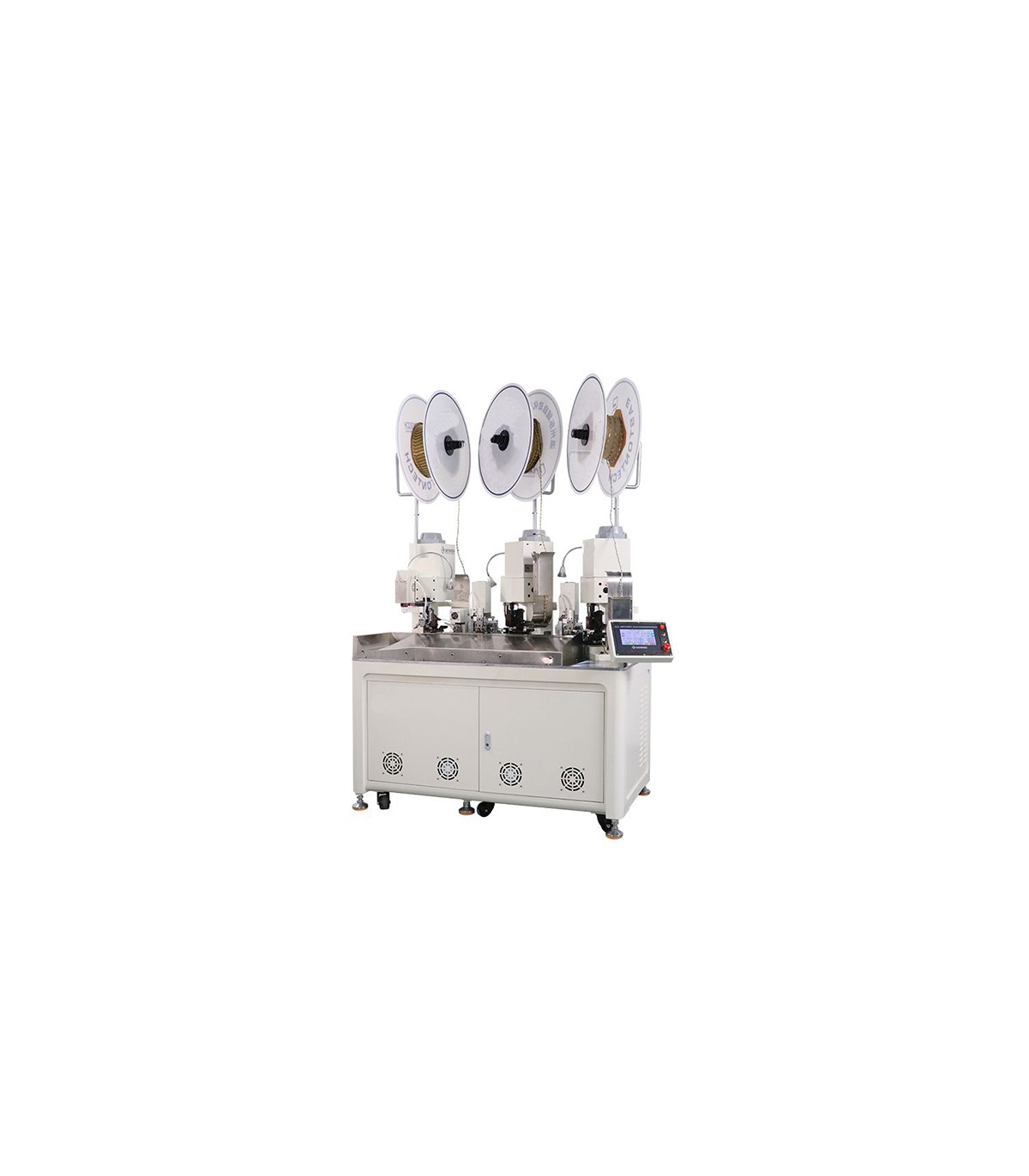

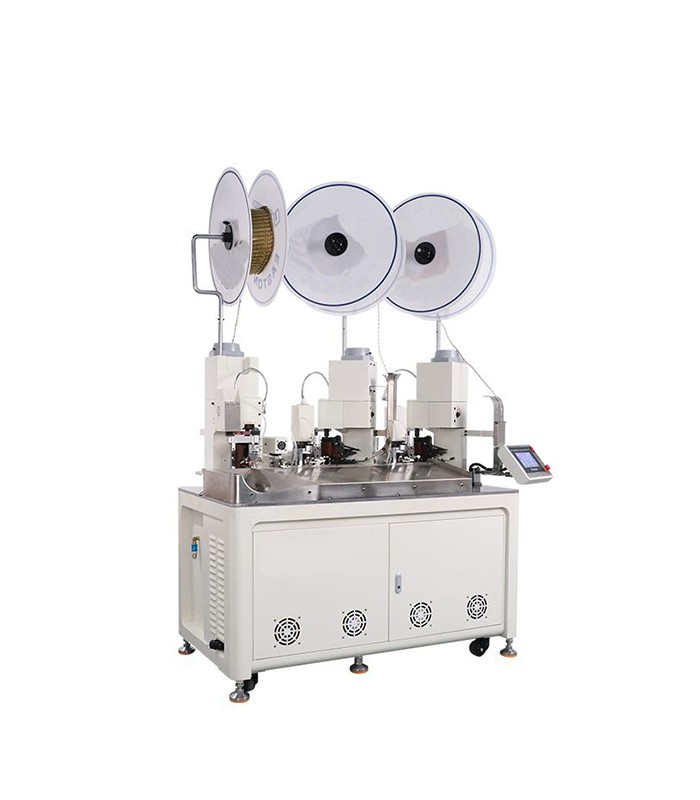

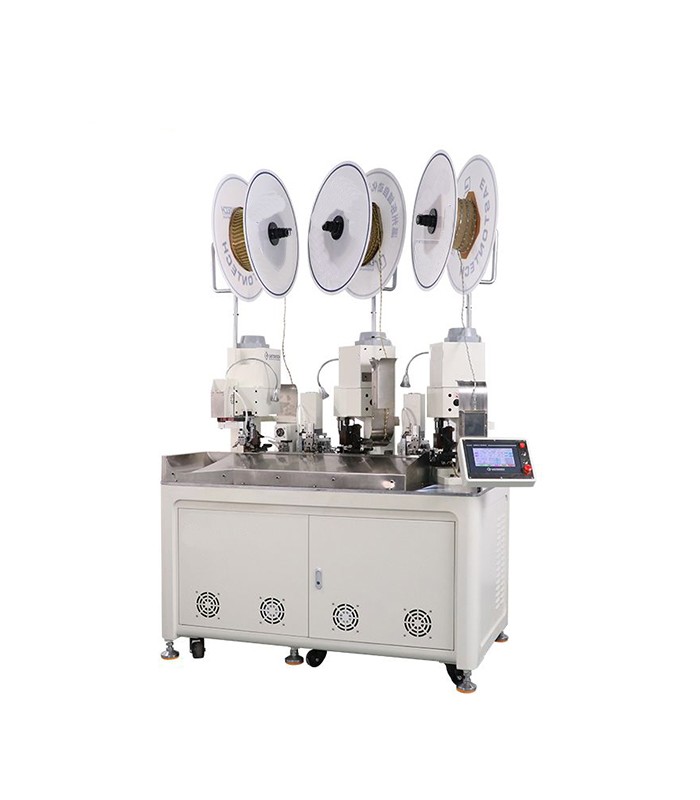

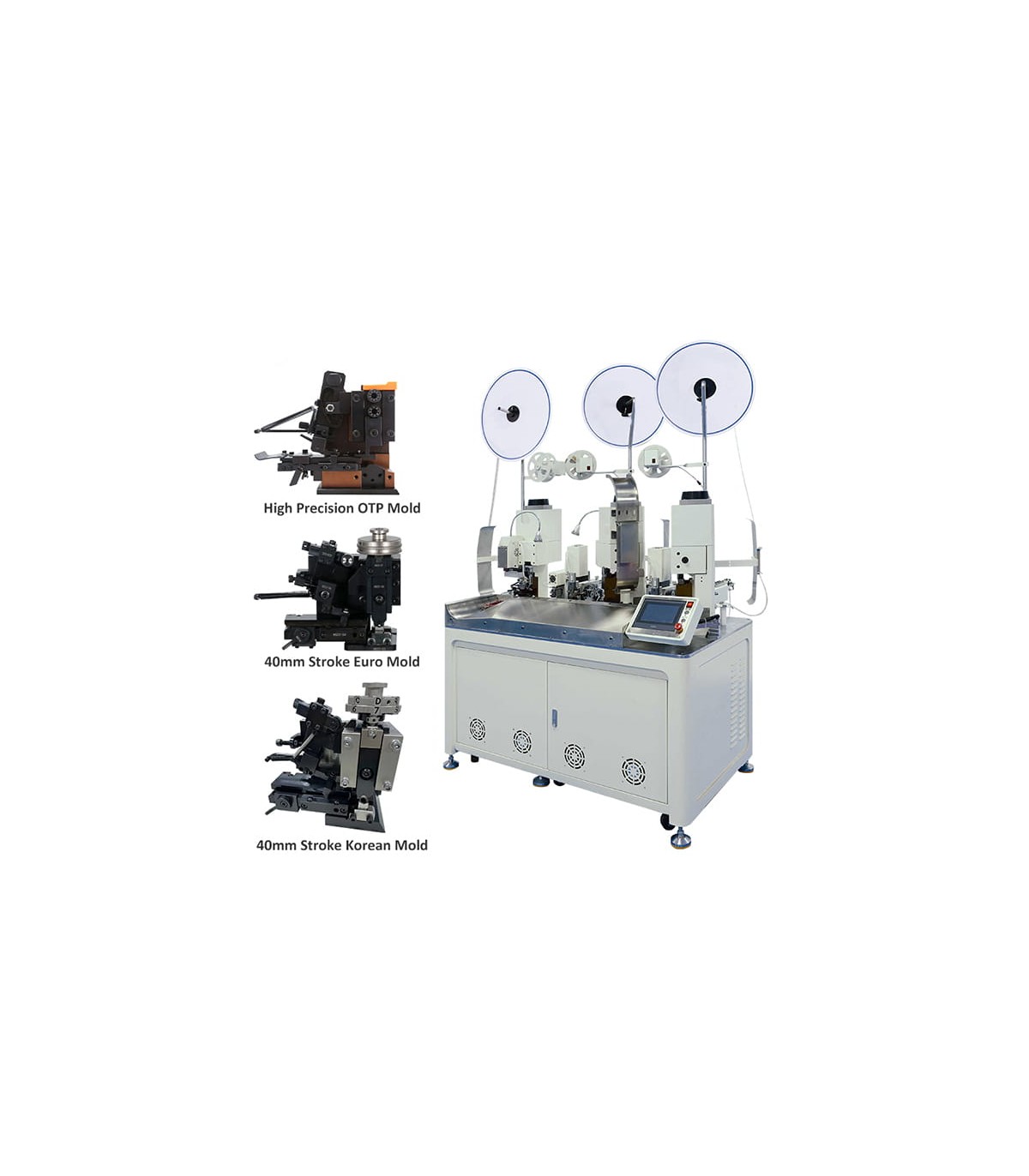

Automatic machine for wire cutting, stripping, and terminal crimping with intelligent control system

The RBEW21C machine automates the entire unwinding cycle:

- cutting to length
- stripping

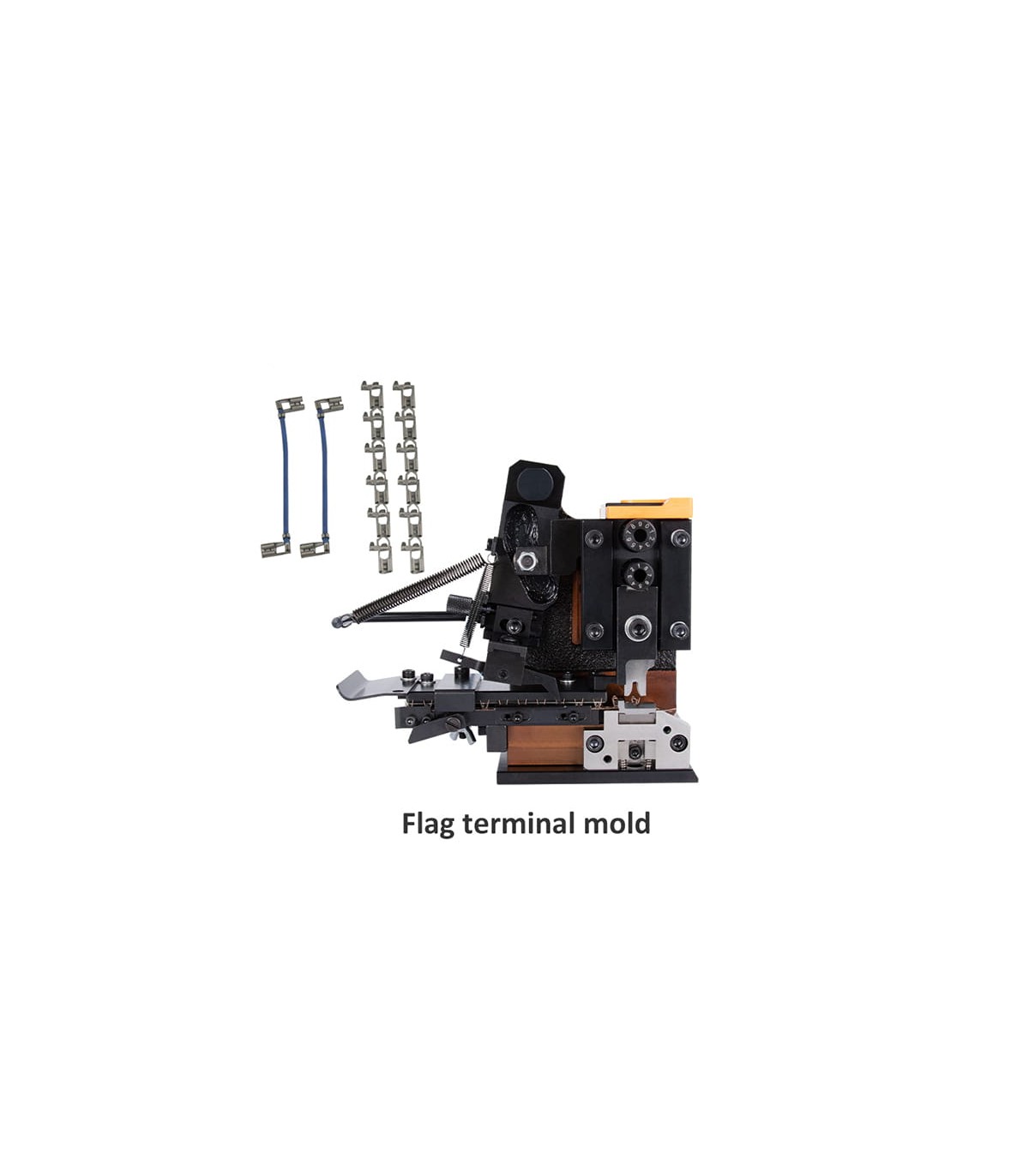

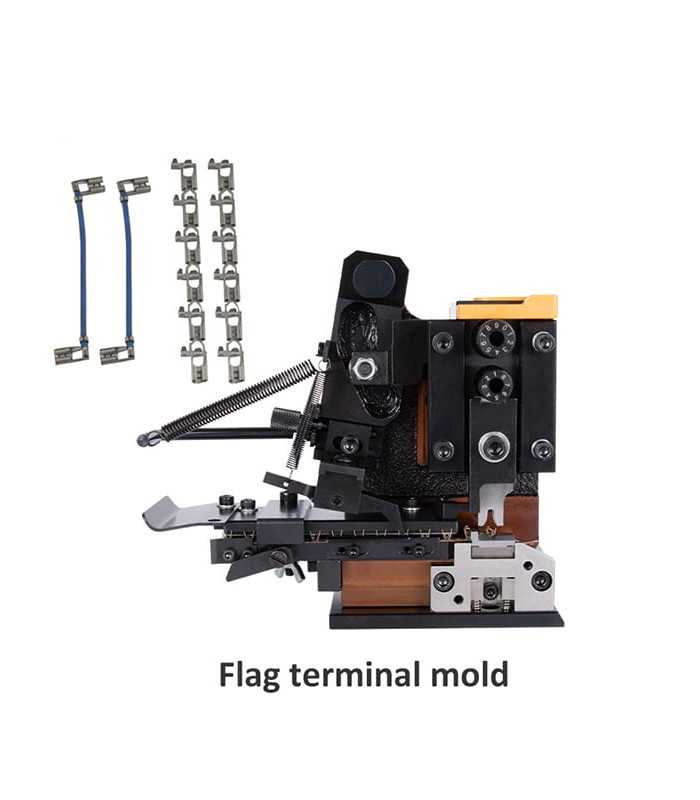

- crimping

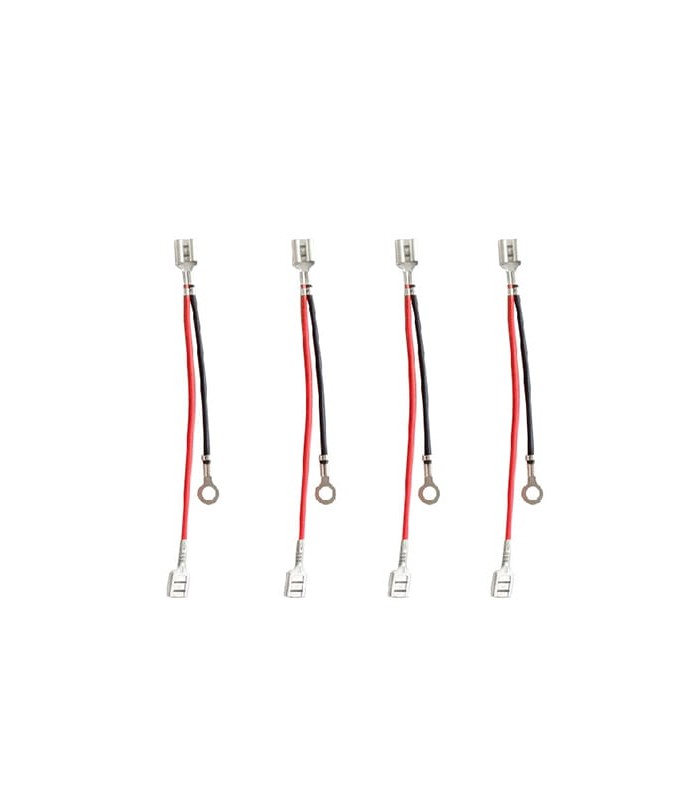

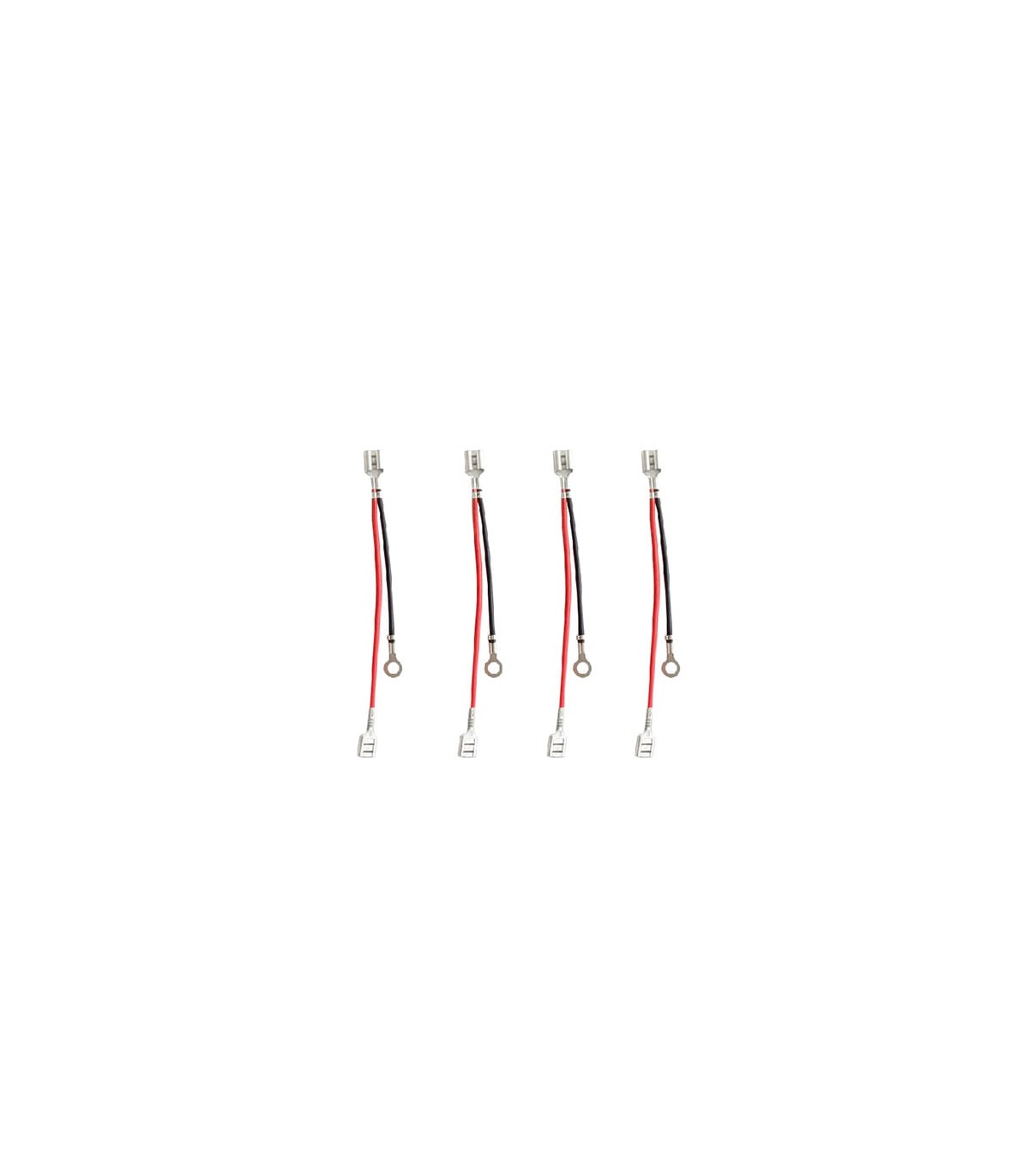

handling two cables in input and three crimps in the same cycle: a “combined” terminal on one end (which joins the two cables) and a dedicated terminal on each of the other two ends.

Key advantages

1) One cycle, three crimps: cuts/strips both cables, crimping one combined terminal on one side and two terminals on the other sides
2) High productivity: up to 3,100 pcs/hour
3) Stability and precision: front/rear arm servo movements, low noise, digital settings for lengths and crimping delays
4) Process controls: sensors for wire run-out, low air pressure, termination error
Simple interface: bilingual touch LCD (CN/EN)

Operating flow

Programming and cable insertion:
- selection according to the cable (34 – 14 AWG)
- set stripping lengths: (side A 0–10 mm) and (side B 0–13 mm)
- set cutting length (50–9,999 mm)
- Cutting and stripping: fast feeding, cutting and stripping according to the set values
- Combined crimp: handling two cables in input and three crimps in the same cycle: a “combined” terminal on one end (joining the two cables) and a dedicated terminal on each of the other two ends.

Main technical data

Model: RBEW21C
Wire range: 34 – 14 AWG
Stripping length (side 1): 0 – 10 mm
Stripping length (side 2): 0 – 13 mm
Cutting length: 50 – 9,999 mm
Tolerance: ± (0.5 + 0.002×L) mm
Productivity: 3,100 pcs/hour (at L = 200 mm)
Crimping force: 2.0 T (20 kN)
Air pressure: 0.6 – 0.8 MPa
Crimping process functions:
- on one side
- two cables into one terminal
- two cables on both sides
Detections/Alarms: wire run-out, low air pressure, termination error
Voltage: 220 V / 110 V – 50/60 Hz
Power: 3,000 W
Display language: Chinese – English
Dimensions: 1600 × 800 × 1550 mm
Weight: 800 kg
