RBCTMFPM3X2VCS
RBCTMFPM3X2VCS
RBCTMFPM3X2VCS
RBCTMFPM3X2VCS

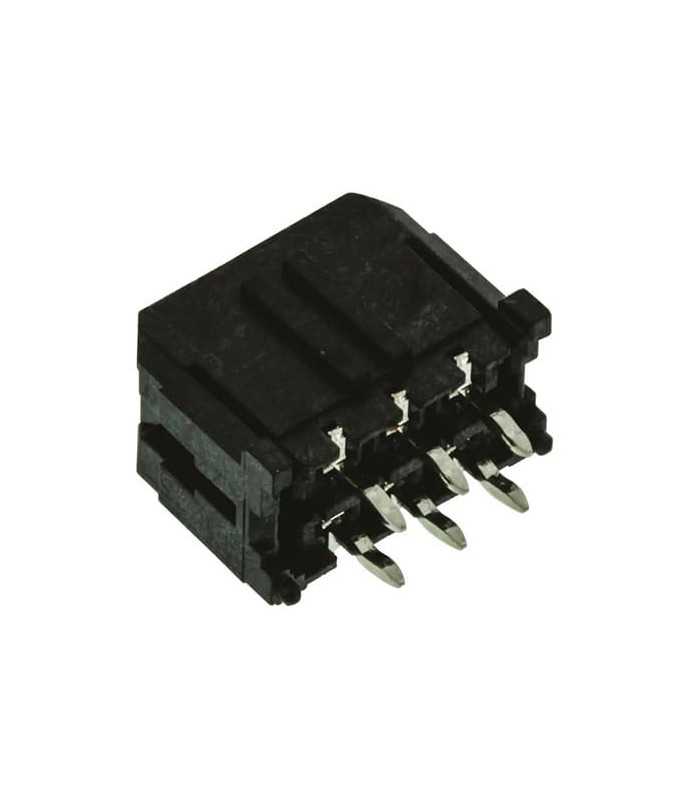

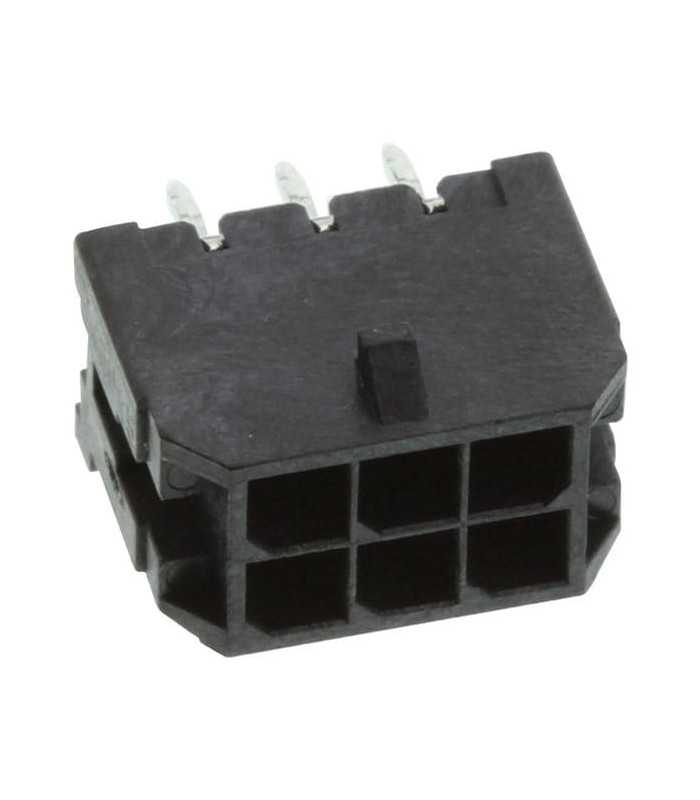

Micro Fit Connector female 3X2 way PCB

Errebi code: 37837
Producer code: Cross referance 43045-0612
Producer: Cross referance Molex
Read moreShow less
€0.76 (tax excl.)
€0.93 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.83 €0.93
25 €0.74 €4.64
50 €0.70 €11.59
100 €0.60 €32.45
250 €0.51 €104.31
500 €0.46 €231.80
1000 €0.42 €509.96
Last items in stock 45 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMFPM3X2VCS
Brand:
ErreBi Group
Add to wishlist
Description
Circuits (maximum): 6
Color - Resin: Black
Flammability: 94V-0
Glow Wire Compatible: No
Key on the coupling part: None
Lock on the mating part: Yes
Material: nylon resin
Net weight: 0.912 / g
Number of lines 2
Panel Mount: Yes
Pitch - Mating interface: 3.00mm
Pitch - Termination Interface: 3.00mm
Polarized to the mating part: Yes
Stackable: No
Temperature range - Operating from: -40 ° to + 105 ° C
Read moreShow less
Product Details
RBCTMFPM3X2VCS

Data sheet

Product type
Connector body
Serie
Micro-Fit 3.0 - 43640
Amperage
5A
Material
Polyester
Color
Black
Operating temperature
-40°C to +105°C
Dimensions
14,00x9,85x8,28 (L x W x H)
Flammability
94V-0
Mounting
For cable
Kind
Female
Number of poles
6
Number of rows
2
Pitch
3.00 mm
Orientation
180°
Minimum order quantity
5
Unit Type
pieces
