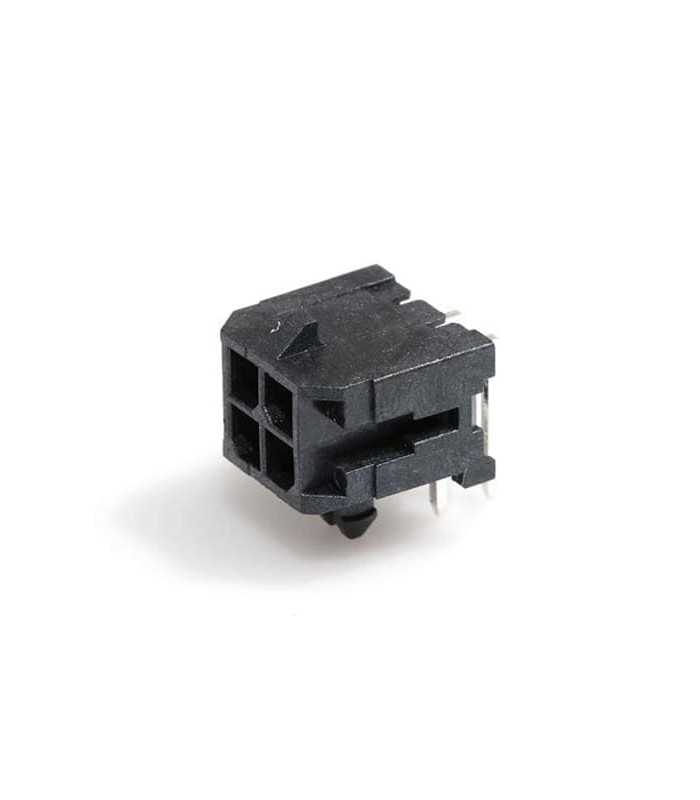

Micro Fit Connector female 2X2 way PCB 90°

The Micro-Fit PCB connector is designed for electronic and electrical applications where compact, reliable connections are required for linking wiring to a PCB board.
The 2x2-way configuration, with 4 positions arranged on 2 rows, allows orderly management of electrical connections while maintaining compact dimensions and easy integration into devices, electrical panels and electronic systems.
The 3 mm pitch provides a good balance between compact size and connection capacity, making the connector suitable for applications where available board space is limited.
The right-angle 90° mounting structure is ideal for PCB installations where the wiring connection must be oriented laterally in relation to the board.
The black housing provides a technical and professional finish, while the UL 94 V-0 flammability class contributes to component safety in electrical and electronic applications.
Thanks to the rated current of 8.5 A, the rated voltage of 600 V and the operating temperature range from -40 °C to +105 °C, the connector is suitable for use in technical operating environments and professional applications.

MAIN ADVANTAGES

- Micro-Fit connector for PCB
- 2x2-way configuration
- 4 positions on 2 rows
- 3 mm terminal pitch
- Right-angle 90° mounting
- Ideal for wire-to-board connections
- Compact and orderly structure
- Black housing for a technical and professional finish
- Rated current 8.5 A
- Rated voltage 600 V
- UL 94 V-0 flammability class
- Suitable for electronic, electrical and industrial applications

MAIN APPLICATIONS

- PCB boards
- Wire-to-board connections
- Electronic wiring
- Electrical panels
- Power supply systems
- Electronic devices
- Industrial automation
- Electrical equipment
- Wiring harness production
- Compact board connections
- Industrial and professional applications

TECHNICAL FEATURES

Type: Micro-Fit PCB connector

Configuration: 2x2-way

Number of positions: 4

Number of rows: 2

Pitch: 3 mm

Mounting angle: right angle 90°

Housing color: black

Rated current: 8.5 A

Rated voltage: 600 V

Minimum operating temperature: -40 °C

Maximum operating temperature: +105 °C

Flammability class: UL 94 V-0

Unit weight: 833 mg

Application: PCB boards, electronic wiring, wire-to-board connections

Use: compact multipole connections on PCB board
