RBCTMFPM2VCS

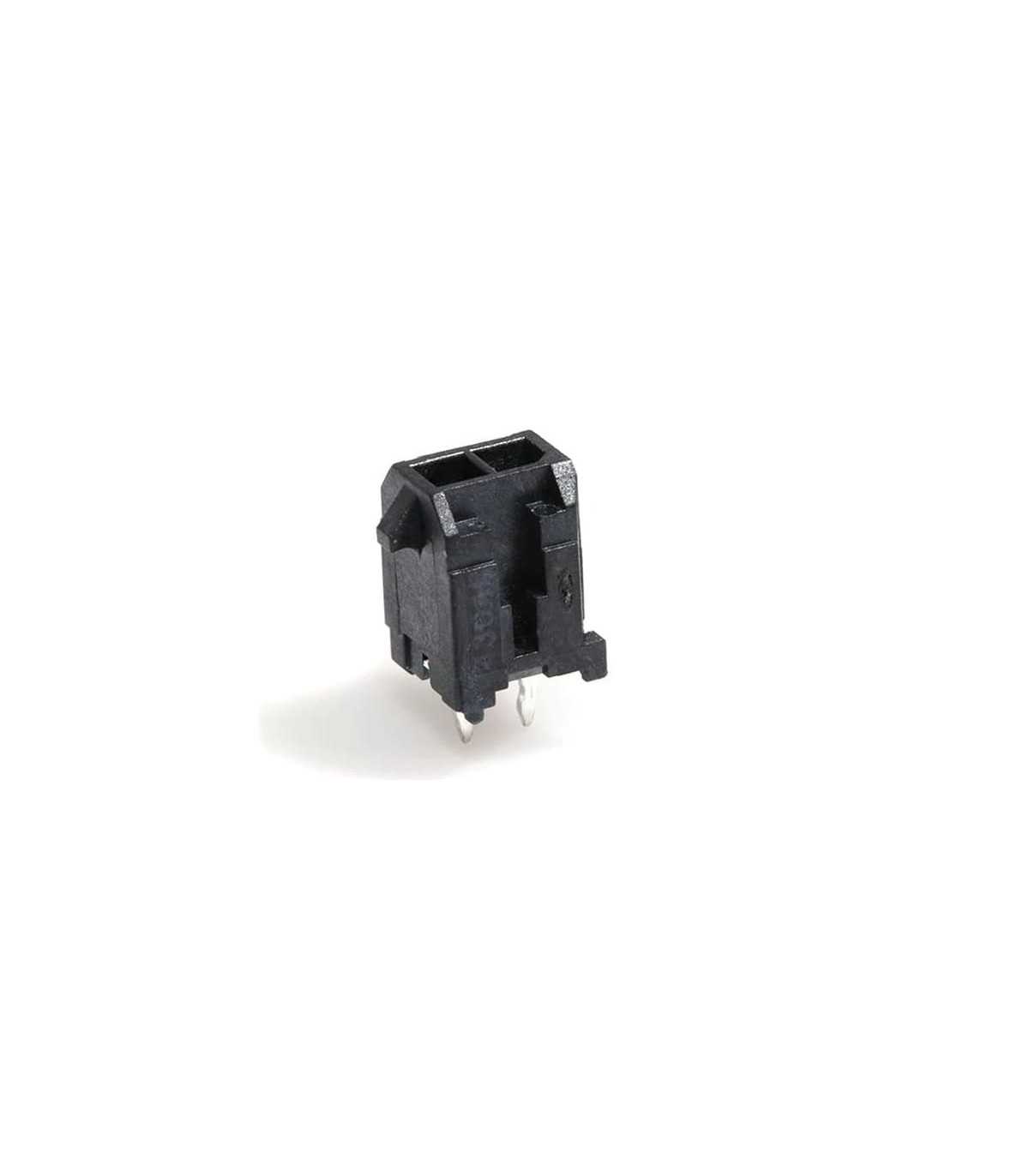

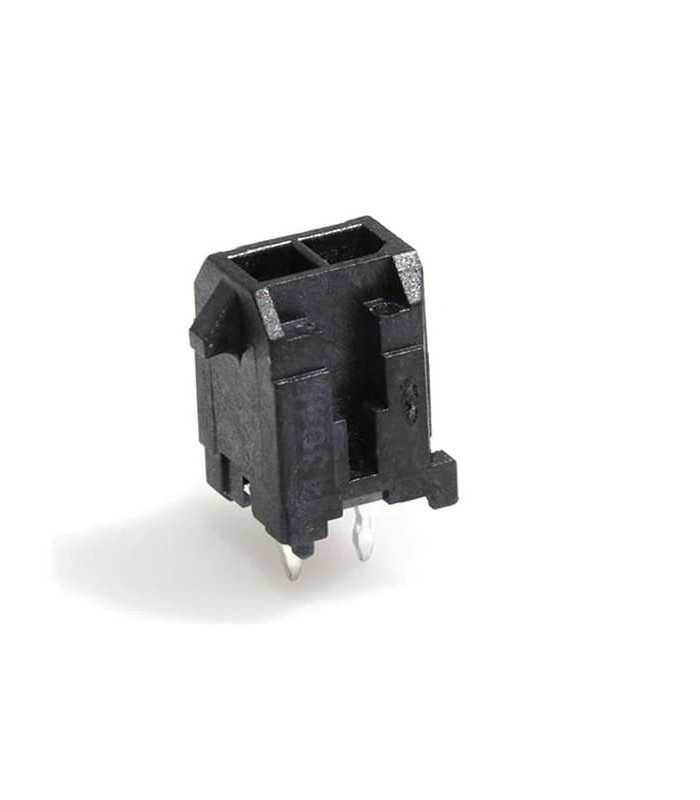

micro fit connector female 2 ways PCB

Errebi code: 64028
Producer code: Cross Reference 43045-0212
Producer: Cross Reference Molex
Please note: the item is a reproduction of the original, please contact us for more information.
Read moreShow less
€0.53 (tax excl.)
€0.65 (tax incl.)

Discounts for quantities

Quantity Unit price You Save
10 €0.58 €0.65
25 €0.52 €3.23
50 €0.48 €8.08
100 €0.42 €22.63
250 €0.36 €72.74
500 €0.32 €161.65
1000 €0.29 €355.63
Last items in stock 20 Items
The minimum purchase order quantity for the product is 5.
Condition
New
Reference:
RBCTMFPM2VCS
Brand:
ErreBi Group
Add to wishlist
Description
Number of positions: 2 positions
Pitch: 3mm
Number of lines: 2 lines
Mounting angle: straight
Minimum operating temperature: - 40 C
Maximum working temperature: +105C
Rated Current: 8.5A
Flammability class: UL 94 V-0
Housing Color: Black
Housing Material: Thermoplastic (TP)
Rated Voltage: 600V
Unit weight: 482mg
Read moreShow less
Product Details
RBCTMFPM2VCS

Data sheet

Product type
Connector body
Serie
Micro-Fit 3.0
Amperage
8.5A
Material
Thermoplastic
Color
Black
Operating temperature
-40°C to +105°C
Flammability
94V-0
Voltage
600V
Contact material
Tin-plated Brass
Mounting
Printed circuit
Kind
Female + male terminal
Number of poles
2
Number of rows
1
Pitch
3.00 mm
Orientation
180°
Contact plating
Tin
Minimum order quantity
5
Unit Type
pieces
