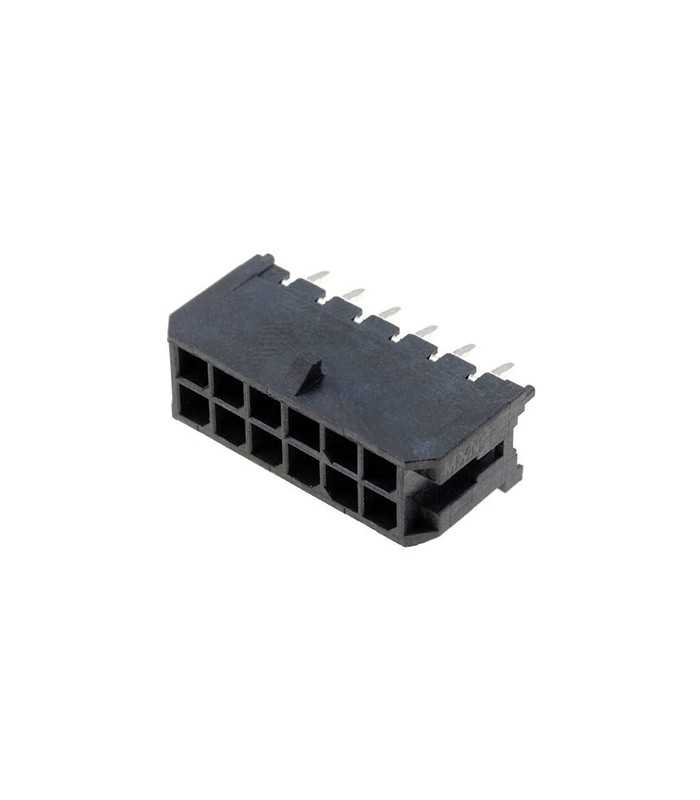

Micro Fit connector female 6X2 ways PCB

The connector is designed for electrical, electronic and industrial applications that require a compact, reliable and stable connection between wiring and printed circuit board.
Thanks to the 12-position configuration distributed over 2 rows, it allows organized management of electrical connections while maintaining compact dimensions and good connection density.
The 3 mm pitch makes the connector suitable for systems where space optimization is required without giving up good current capacity per contact.
The straight mounting design facilitates PCB installation and makes the component suitable for wire-to-board applications, electronic systems, control panels, industrial equipment and professional wiring.
The black thermoplastic housing ensures good mechanical strength, dimensional stability and resistance to operating temperatures.
The UL 94 V-0 flammability rating is an important advantage for applications where high safety and flame-resistance requirements are needed.
With a current rating of 8.5 A and a voltage rating of 600 V, the connector is suitable for signal and power electrical connections in different production environments.
The operating temperature range from -40 °C to +105 °C allows use even in environments subject to temperature variations and demanding operating conditions.

MAIN ADVANTAGES

- Compact 12-position configuration on 2 rows
- 3 mm pitch for good connection density
- Straight mounting for orderly PCB installation
- Black thermoplastic housing
- Current rating up to 8.5 A
- Voltage rating up to 600 V
- UL 94 V-0 flammability rating
- Good thermal resistance from -40 °C to +105 °C
- Ideal for wire-to-board applications
- Suitable for professional wiring and electronic systems

MAIN APPLICATIONS

- Wire-to-board connections
- PCB electronic boards
- Professional electrical wiring
- Power systems
- Industrial equipment
- Electrical panels and control systems
- Industrial automation
- Compact electronic devices

TECHNICAL FEATURES

Series: A3001

Type: connector / header for wire-to-board connection

Number of positions: 12 positions

Number of rows: 2 rows

Pitch: 3 mm

Mounting angle: straight

Current rating: 8.5 A

Voltage rating: 600 V

Housing material: thermoplastic (TP)

Housing color: black

Flammability rating: UL 94 V-0

Minimum operating temperature: -40 °C

Maximum operating temperature: +105 °C

Unit weight: 1.698 g
