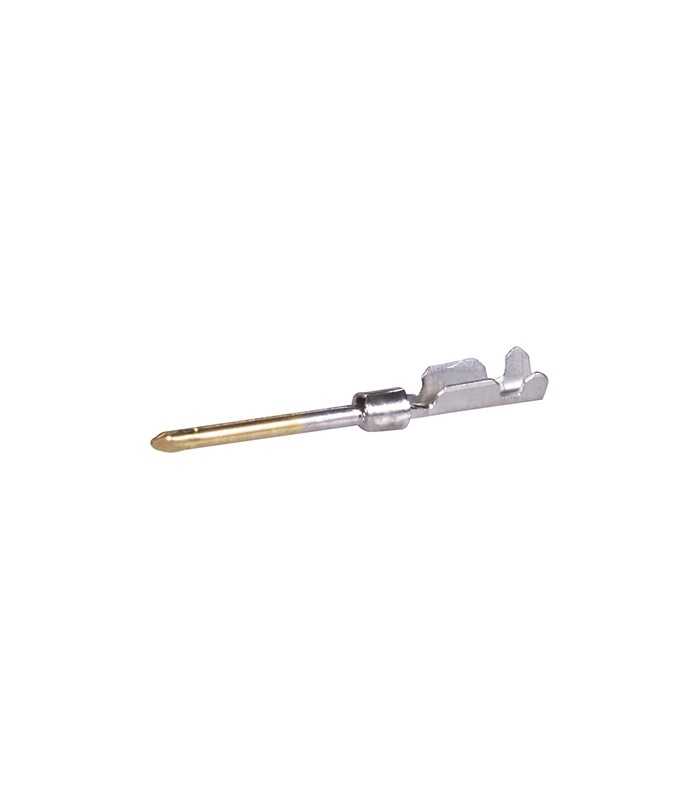

AmpLimite HDP-22 Terminal male for cable sec. 28-22 AWG

Errebi code: 17706
Producer code: Cross Reference 1658670-1
Producer: Cross Reference TE/Connectivity
Package: 50 pieces
Note: Quantity 1 corresponds to 50 pieces
Read more
€2.50 (tax excl.)
€3.05
(€0.06 / pcs)

Discounts for quantities

Quantity Unit price You Save
2 €2.29 €1.53
3 €1.98 €3.21
6 €1.68 €8.23
11 €1.53 €16.78
21 €1.37 €35.26
Available in stock 93 Items
Condition
New product
Reference:
RBTNDBMAD
Description
Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Pin
- D-Sub Contact Size: 22
- Contact Base Material: Brass
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 1.9
- Pin Diameter: .76 mm [ .03 in ]
- Contact Mating Area Plating Thickness (µin): 30

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: .76 – 1.02 mm [ .03 – .04 in ]
- Wire Size (AWG): 28 – 22
- Wire Size (mm²): .08 – .4
- Insulation Diameter (Max) (in): .04

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
- For Use With: AMPLIMITE
Read more
Product Details
RBTNDBMAD

Data sheet

Serie
AmpLimite HDP-22
Amperage
1.9A
Operating temperature
-55°C a +105°C
Contact material
Brass
Mounting
On cable
Wire range
0.08 - 0.40 mmq
Kind
Male
Orientation
180°
Contact plating
Tin (Gold finish)
Product type
Terminal
