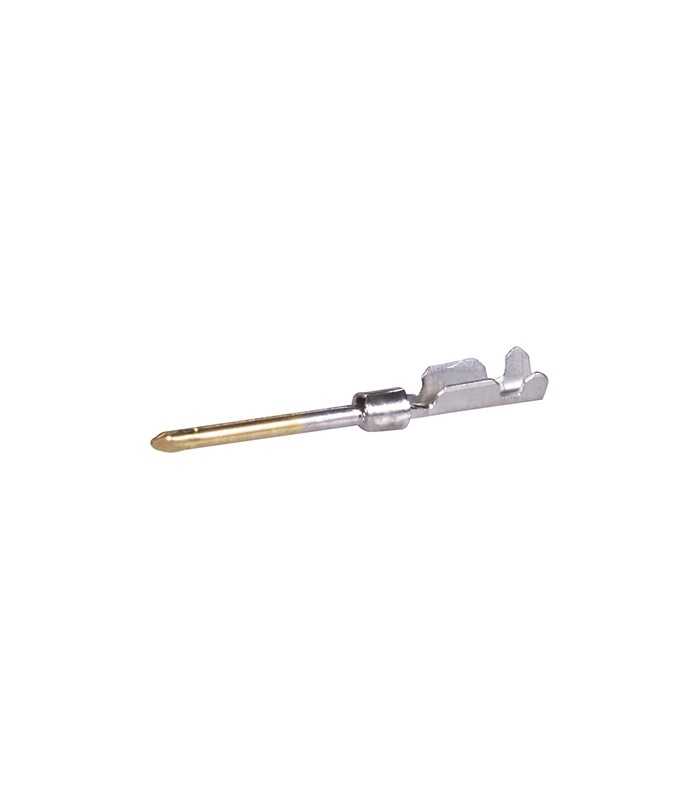

Terminal AmpLimite HDP-22 macho para sec. de cable 28-22 AWG

Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Pin
- D-Sub Contact Size: 22
- Contact Base Material: Brass
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 1.9
- Pin Diameter: .76 mm [ .03 in ]
- Contact Mating Area Plating Thickness (µin): 30

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: .76 – 1.02 mm [ .03 – .04 in ]
- Wire Size (AWG): 28 – 22
- Wire Size (mm²): .08 – .4
- Insulation Diameter (Max) (in): .04

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
- For Use With: AMPLIMITE
