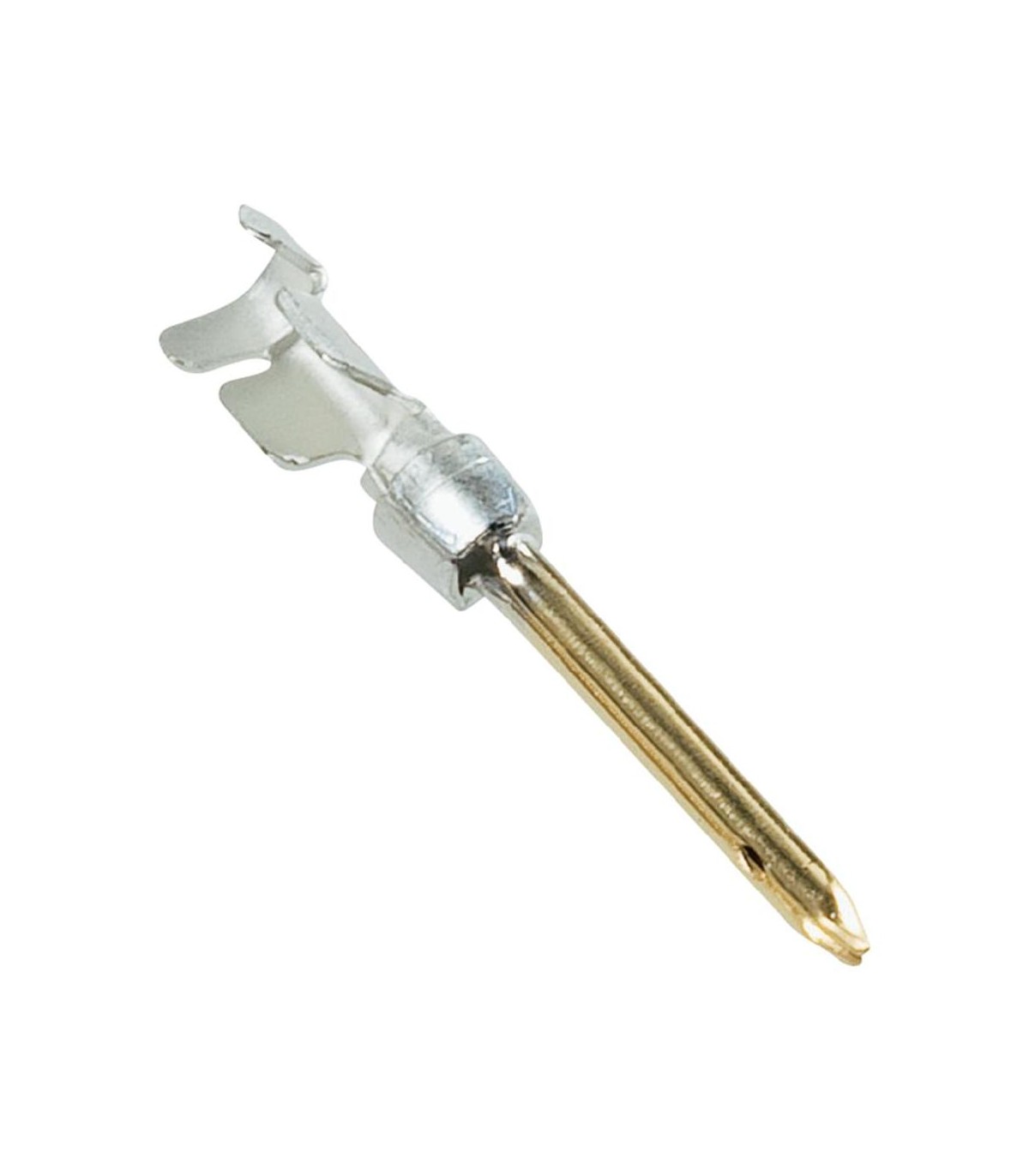

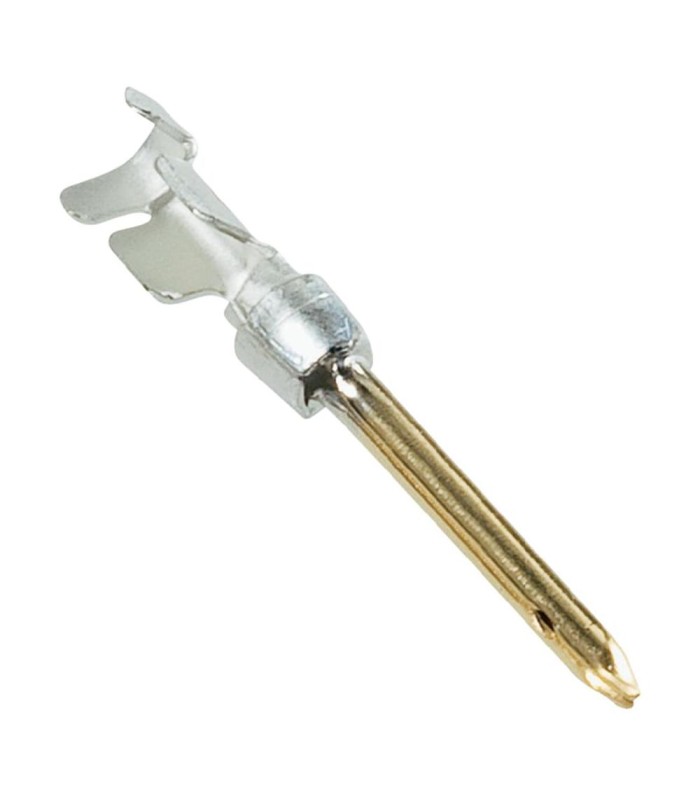

AmpLimite HDP-20 Terminal male for cable sec. 24-20 AWG

Errebi code: 11065
Producer code: Cross Reference 166293-1
Producer: Cross Reference TE/Connectivity
Package: 30 pieces
Note: Quantity 1 corresponds to 30 pieces
Read more
€1.50 (tax excl.)
€1.83
(€0.06 / pcs)

Discounts for quantities

Quantity Unit price You Save
2 €1.37 €0.92
4 €1.19 €2.57
9 €1.01 €7.40
17 €0.92 €15.56
34 €0.82 €34.25
'Available in 5 working days from the order.'
Condition
New product
Reference:
RBTNDBM
Description
Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Body Features
- Color Code: Red

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Pin
- D-Sub Contact Size: 20
- Contact Base Material: Brass
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 2
- Contact Mating Area Plating Thickness (µm): .76
- Pin Diameter (mm): 1

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: 1.27 – 1.52 mm [ .05 – .06 in ]
- Wire Size (AWG): 24 – 20
- Wire Size (mm²): .2 – .56
- Insulation Diameter (Max) (mm): 1.52

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
Read more
Product Details
RBTNDBM

Data sheet

Serie
AmpLimite HDP-20
Amperage
2A
Operating temperature
-55°C a +105°C
Contact material
Brass
Mounting
On cable
Wire range
0.20 - 0.56 mmq
Kind
Male
Orientation
180°
Contact plating
Tin (Gold finish)
Product type
Terminal
