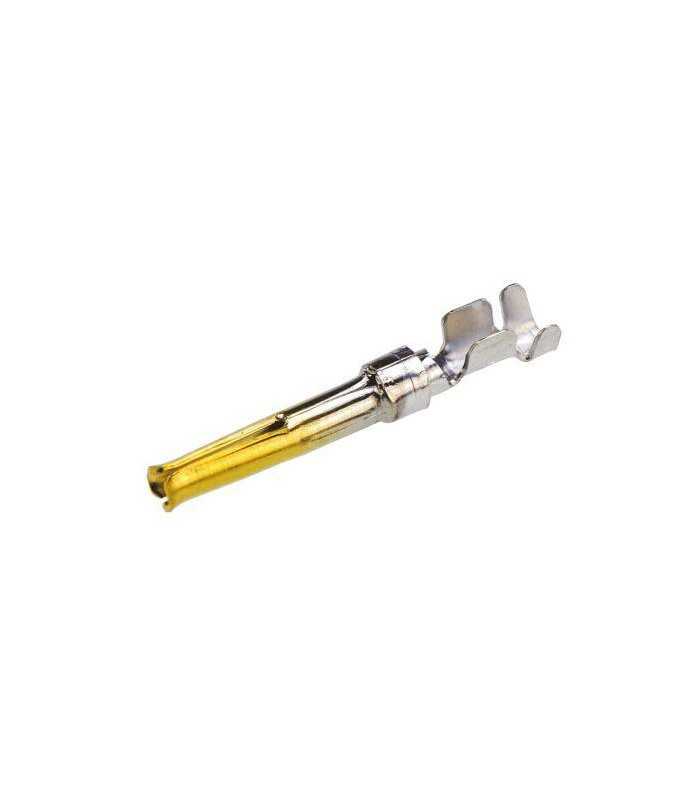

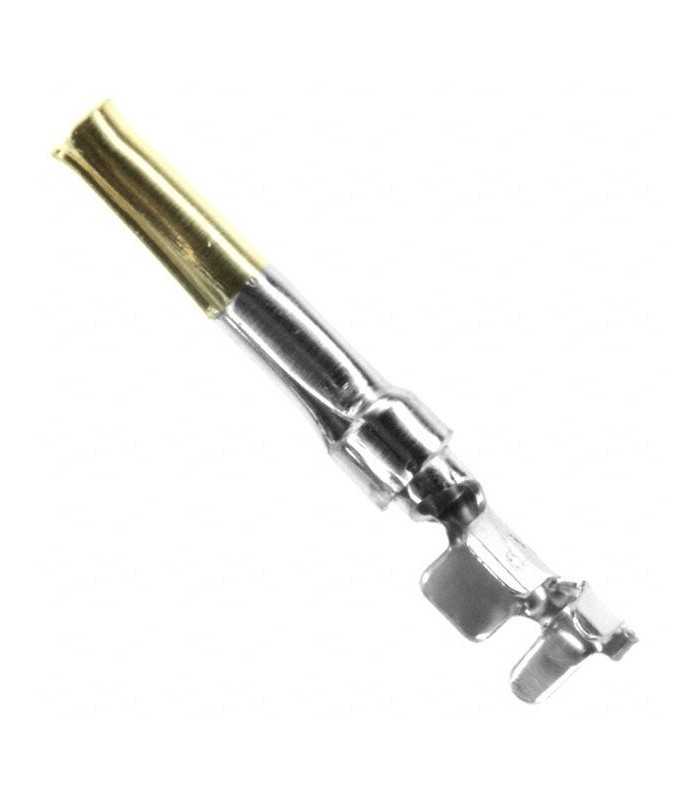

AmpLimite HDP-20 Terminal female for cable sec. 24-20 AWG

Errebi code: 1066
Producer code: DBC-FT-L
Producer: Amtek
Read moreShow less
€0.06 (tax excl.)
€0.07

Discounts for quantities

Quantity Unit price You Save
30 €0.07 €0.00
60 €0.05 €1.10
120 €0.05 €3.08
270 €0.04 €8.88
510 €0.04 €18.67
1020 €0.03 €41.10
Available in stock 6353 Items
The minimum purchase order quantity for the product is 30.
Condition
New
Reference:
RBTNDBF22
Brand:
Add to wishlist
Description
Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Socket
- D-Sub Contact Size: 20
- Contact Base Material: Phosphor Bronze
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 2
- Contact Mating Area Plating Thickness (µm): .76
- Pin Diameter (mm): 1

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: 1.27 – 1.52 mm [ .05 – .06 in ]
- Wire Size (AWG): 24 – 20
- Wire Size (mm²): .2 – .56
- Insulation Diameter (Max) (mm): 1.52

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
Read moreShow less
Product Details
RBTNDBF22

Data sheet

Product type
Terminal
Serie
AmpLimite HDP-20
Amperage
2A
Operating temperature
-55°C a +105°C
Contact material
Phosphor Bronze
Mounting
On cable
Wire range
0.20 - 0.56 mmq
Kind
Female
Orientation
180°
Contact plating
Tin (Gold finish)
Minimum order quantity
30
Unit Type
pieces

Specific References

EAN13
2050001696328
