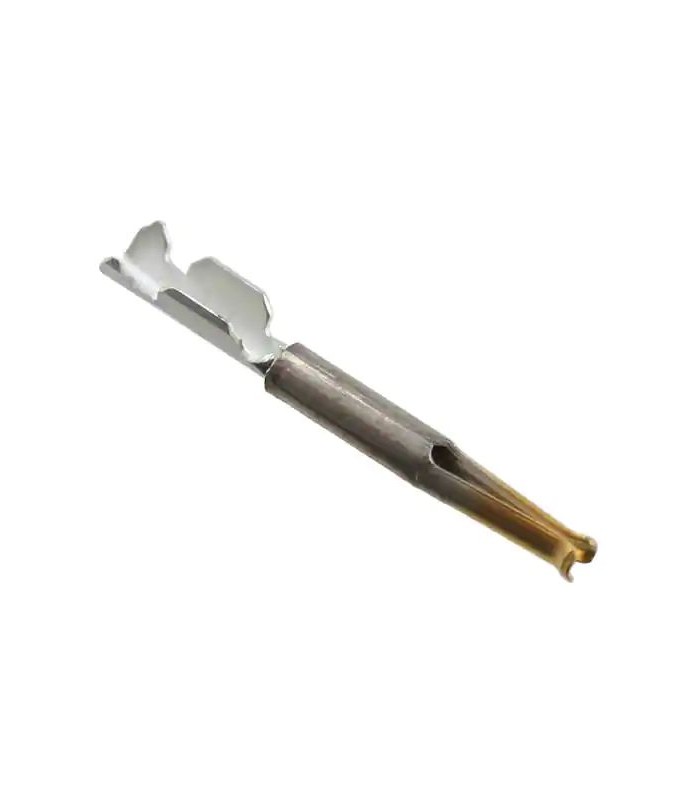

AmpLimite HDP-22Terminal female for cable sec. 28-22 AWG

Errebi code: 17707
Producer code: Cross Reference 1658686-1
Producer: Cross Reference TE/Connectivity
Read moreShow less
€0.06 (tax excl.)
€0.07

Discounts for quantities

Quantity Unit price You Save
50 €0.07 €0.00
100 €0.05 €2.57
250 €0.04 €8.23
500 €0.04 €18.30
1000 €0.03 €40.30
Available in stock 26018 Items
The minimum purchase order quantity for the product is 50.
100% secure payments
Condition
New product
Reference:
RBTNDBFAD
Add to wishlist
Description
Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Socket
- D-Sub Contact Size: 22
- Contact Base Material: Phosphor Bronze
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 1.9
- Contact Mating Area Plating Thickness (µin): 30

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: .76 – 1.02 mm [ .03 – .04 in ]
- Wire Size (AWG): 28 – 22
- Wire Size (mm²): .08 – .4
- Insulation Diameter (Max) (in): .04

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
- For Use With: AMPLIMITE
Read moreShow less
Product Details
RBTNDBFAD

Data sheet

Product type
Terminal
Serie
AmpLimite HDP-22
Amperage
1.9A
Operating temperature
-55°C a +105°C
Contact material
Phosphor Bronze
Mounting
On cable
Wire range
0.08 - 0.40 mmq
Kind
Female
Orientation
180°
Contact plating
Tin (Gold finish)
Minimum order quantity
50
Unit Type
pieces
