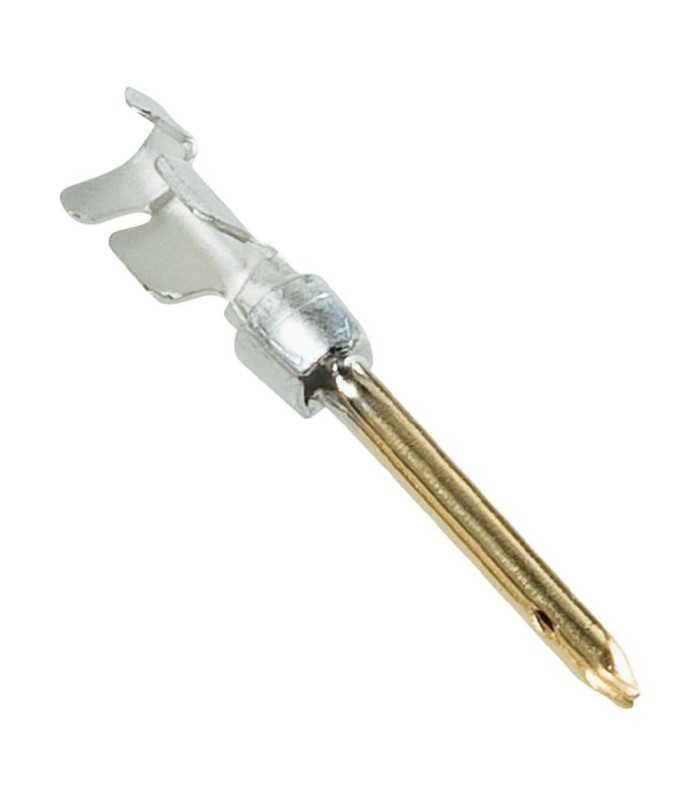

AmpLimite HDP-20 Terminal männlich für Kabel abs. 24-20 AWG

Product Type Features
- Connector System: Cable-to-Cable
- Connector & Contact Terminates To: Wire & Cable
- Grade: Standard
- Product Type: Contact

Body Features
- Color Code: Red

Contact Features
- PCB Contact Termination Area Plating Material: Tin
- Contact Underplating Material: Nickel
- Contact Type: Pin
- D-Sub Contact Size: 20
- Contact Base Material: Brass
- Contact Mating Area Plating Material: Gold
- Contact Current Rating (Max) (A): 2
- Contact Mating Area Plating Thickness (µm): .76
- Pin Diameter (mm): 1

Termination Features
- Termination Method to Wire & Cable: Crimp

Mechanical Attachment
- Wire Insulation Support: With
- Contact Retention Type Within Housing: Snap-In

Dimensions
- Accepts Wire Insulation Diameter Range: 1.27 – 1.52 mm [ .05 – .06 in ]
- Wire Size (AWG): 24 – 20
- Wire Size (mm²): .2 – .56
- Insulation Diameter (Max) (mm): 1.52

Usage Conditions
- Operating Temperature Range: -55 – 105 °C [ -67 – 221 °F ]

Operation/Application
- Circuit Application: Signal
